Die Tooling Punching Machine FPC Punch Equipment PCBA FR4 Alum Board

Die Tooling Punching Machine FPC Punch Equipment PCBA FR4 Alum Board
Die Tooling Punching Machine FPC Punch Equipment PCBA FR4 Alum Board

Large Image :  Die Tooling Punching Machine FPC Punch Equipment PCBA FR4 Alum Board

Product Details:

Place of Origin: China
Brand Name: Chuangwei
Certification: CE certificate
Model Number: CWPE punch equipment

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywooden Case
Delivery Time: 5 - 7 days after receive the payment
Payment Terms: T/T, L/C, Western Union
Supply Ability: 30 Sets/month
Detailed Product Description
Product Warranty: 1 Year Establish Year: 1999
Use: Punching PCBA , Alum Board Contribute: 8 Ton
System: LCD Control Material For The Machine: Hight Speed Steel
High Light:

pcb punching machine

,

pcb depaneling machine

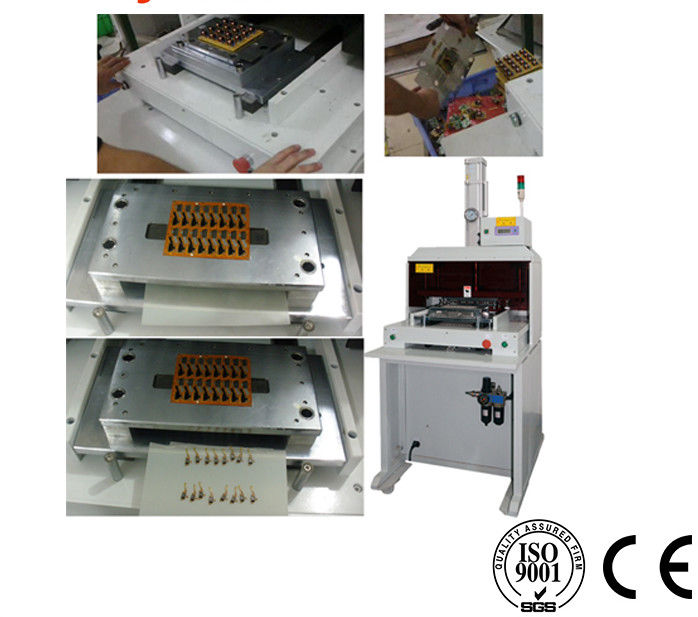

Die Tooling Punching Machine FPC Punch Equipment PCBA FR4 and Alum Board



Features for pcb punch machine :



This machine depaneling PCB/FPC by means of punching dies, to avoid micro-cracks caused by manual . Cast iron framework for rigidity . The Models are changeable and easy set up . Moveable lower die for easy loading and unloading PCB punch die/FPC die/PCB punch mold/FPC mold.





Detailed Product Description:


1. It is use for punching electronics , cell phones , computers , PCB , FPC ( flexible printed circuit board ) .

2. Other spare parts for punching molding

3. Mold made of SKH-11 Steel, Blades made of SKH-9(From Japan), rigorous Job . Dedicated

to high strength cutting , and excellent toughness





Technical characteristics:


1. Structural precision , the load evenly , to eliminate internal stress

2. Safe , easy operation



Punch Equipment Advantage :



This machine with highly automatic driven and suit for many molds.If customer need , we can make models according to the products.Efficient PCB put and pick . Punching pcb with less strees and avoid micro-cracks by manual .



PCB Punching Machine Specification :



Model

CWPE

PCB Area (mm)

330*220

Contribute (Tone)

8

Machine Size (mm)

730 x 810 x1700

Power Supply (V)

110 / 220

 Machine Net Weight (Kg)

530

Punch machine Guarantee (Year)

1

Delivery Time  (Day)

1

Min. Order (Set)

1

Supply Ability (Set)

1000 sets / year



Our PCB Punch Machine Advantage :



1. CWPE PCB Punching machine original manufacturers, price concessions

2. Supply technical support services every day

3. Limit the handling of complaints, half an hour back to customers

4. Depanel Experts, the provision of professional PCB sub-programme

5. Reliable machine maker,we get Experts--15,each one got over 10 years experience,equipment quality will be satisfying.



Die Tooling Punching Machine FPC Punch Equipment PCBA FR4 Alum Board 0

Die Tooling Punching Machine FPC Punch Equipment PCBA FR4 Alum Board 1
