X10 Zoom In Image KAVO Spindle PCB Router Depaneling Machine Win 7 60000rpm

X10 Zoom In Image KAVO Spindle PCB Router Depaneling Machine Win 7 60000rpm
X10 Zoom In Image KAVO Spindle PCB Router Depaneling Machine Win 7 60000rpm X10 Zoom In Image KAVO Spindle PCB Router Depaneling Machine Win 7 60000rpm

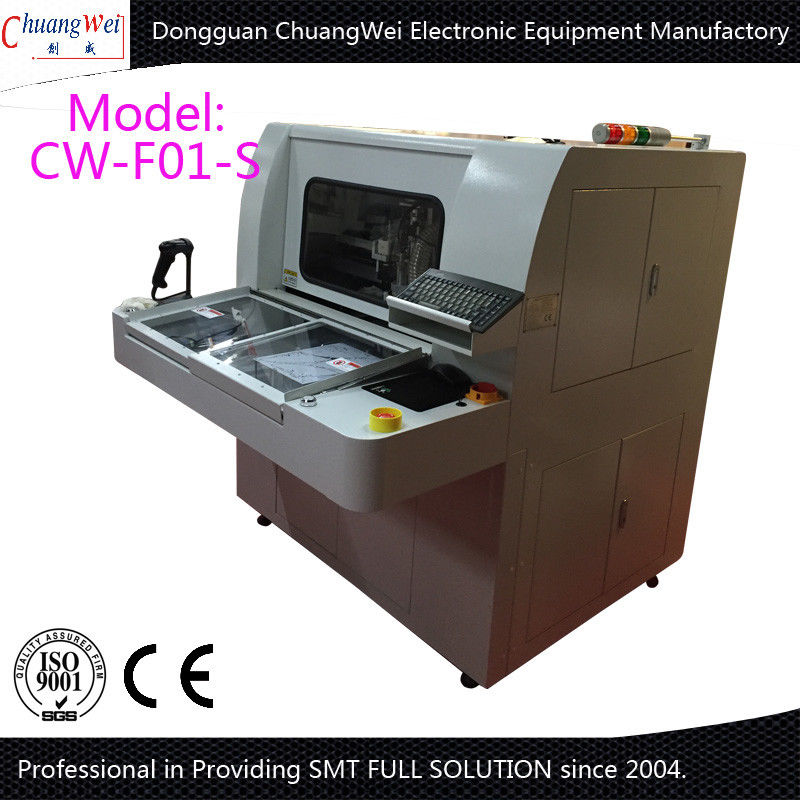

Large Image :  X10 Zoom In Image KAVO Spindle PCB Router Depaneling Machine Win 7 60000rpm

Product Details:

Place of Origin: China
Brand Name: Chuangwei
Certification: CE
Model Number: CW-F01-S

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: customized
Delivery Time: 3 work days
Payment Terms: Western Union, T/T, L/C
Supply Ability: 1000 sets/ year
Detailed Product Description
Warranty: One Year Operation System: Win 7
PCB Loading/Unloading: Manual Tool Change: Manual
Spindle: KAVO Name: PCB Separator Router
High Light:

pcb depaneling router

,

printed circuit board router


2017 New KAVO Spindle PCB Separator Router Machine with 60000rpm

X10 Zoom In Image KAVO Spindle PCB Router Depaneling Machine Win 7 60000rpm 0

1. Feature:

1.X10 zoom-in image makes programming easier&increase the accuracy of point setting.



2.Two sliding table provides simultaneously in-and-out movement to reduce the tack time for better productivity.



3.AUTO MARK offset system.CCD image could check&simulate the path or routing to reduce unnecessary mistake before cutting.





4. Has routing bit life time checking and alarm system to remind operator to change routing bits when it finish 120M cutting. And routing bit first 2mm cut the first miling point, middle 2mm cut the second milling point, the last 2mm cut the third milling point to increase its life time.



5. CCD image could check&simulate the path or routing to reduce unnecessary mistake before cutting.



2. Advantages:

1. Using double slide into place device, reduce the cutting waiting times, increase production capacity.

2. Avoid artificial flap caused by the cracking of tin and part damage and other issues.

3. Avoid using blunt or fold, produced by mechanical stress.

4. Suitable for the finished plate arc and line cutting.

5. Suitable for small pieces of the final cutting, base plate of a mobile phone, PDA, PC interface card and so on.



3. Specification



Model CW-F01-S
Standard working area 320*320mm(standard)
Power 220V, 4.2KW
Manipulator Repeatability ±0.02mm
Resolution ±0.01mm
Board Positioning Dual workstation with nest fixture or pin fixture
Panel Location Located by tooling holes or edges of PCB
Loading Manual
Unloading Manual
Panel Size 320*320mm(standard)
Panel Thickness 0.5-3.5mm
Spindle motor KAVO Spindle
Tool Change Manual
Dust filtration system 3KW Vacuum Cleaner
Vision system High resolution CCD video camera
Programming Vision assisted point to point manual teaching
Editing Function Dry run vision assisted / test run mode
Machine weight 650kgs
Machine dimension 113*140*108cm


X10 Zoom In Image KAVO Spindle PCB Router Depaneling Machine Win 7 60000rpm 1  X10 Zoom In Image KAVO Spindle PCB Router Depaneling Machine Win 7 60000rpm 2

Production flow

X10 Zoom In Image KAVO Spindle PCB Router Depaneling Machine Win 7 60000rpm 3


CE approval

X10 Zoom In Image KAVO Spindle PCB Router Depaneling Machine Win 7 60000rpm 4
