Double Station Automatic Depaneling PCB Router Machine 220V 4.2KW

Name: Double Station Automatic Depaneling PCB Router Machine 220V 4.2KW
Brand: Chuangwei
SKU: CW-F01-S
Price: 1.00 USD
Availability: InStock
Rating: 4.9 (153 reviews)

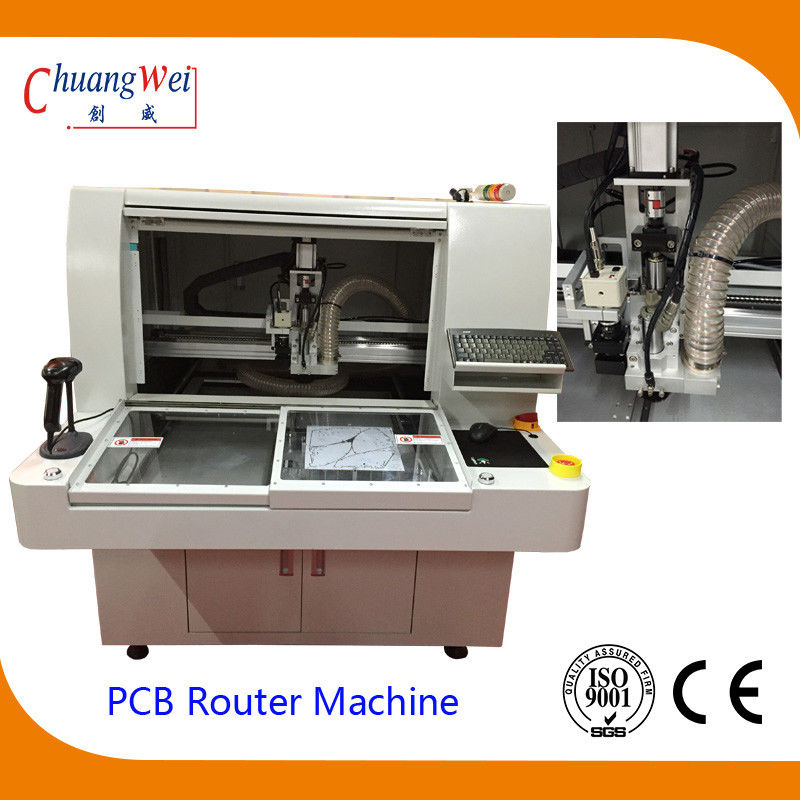

Large Image : Double Station Automatic Depaneling PCB Router Machine 220V 4.2KW

Product Details:

Place of Origin:	Dongguang China
Brand Name:	Chuangwei
Certification:	CE ISO
Model Number:	CW-F01-S

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	each set be packed in carton boxes
Delivery Time:	1-3 days after payment confirm
Payment Terms:	T/T, L/C,paypal
Supply Ability:	300 sets per month

Contact Now

Detailed Product Description

Model:	CW-F01-S	Working Station:	2
Power:	220V, 4.2KW	PCB Thickness:	0.5-3.5mm
Working Area:	320*320mm(standard)	Machine Weight:	650kgs
Warranty:	1 Year	Name:	Automatic PCB Router
High Light:	pcb depaneling router , printed circuit board router

Double station Automatic PCB Router Machine for The Best Depaneling Solution

Specification:

Model	CW-F01-S
Standard working area	320*320mm(standard)
Power	220V, 4.2KW
Manipulator Repeatability	±0.02mm
Resolution	±0.01mm
Board Positioning	Dual workstation with nest fixture or pin fixture
Panel Location	Located by tooling holes or edges of PCB
Loading	Manual
Unloading	Manual
Panel Size	320*320mm(standard)
Panel Thickness	0.5-3.5mm
Spindle motor	0.5kW Morning Star Spindle
Tool Change	Manual
Dust filtration system	3KW Vacuum Cleaner
Vision system	High resolution CCD video camera
Programming	Vision assisted point to point manual teaching
Editing Function	Dry run vision assisted / test run mode
Machine weight	500kgs
Machine dimension	113140108cm

Feature:

This PCB Separator adopt x,y,z servo motor and driving system and ball screw ,linear guide rail ,ensure machine run smooth and precisely.moving accuracy less than 0.01mm, routing accuracy less then 0.05mm.
Rotary double work station design makes continuous running ,greatly improve production efficiency .
Machine is equipped with high resolution CCD ,use direct teach programming method with cross cursor of CCD, very easy to operate , software can excute point ,line ,arc ,circle etc command to cut different shape of panelled board ,it has mark positioning function ,can automatically correct the coordinate offset when PCB position changed .
Industrial PC ,Windows system and full english self developed softeware makes programming and operating very easy
Euipped with quality ,air cooling long service life routing spindle .
External silence vaccum cleaner provide a clean and low noise work environment .
Milling cut can be used as 2 or 3 section , just set the parameter on sofeware , it has greatly prolonged milling cut' service life.
Equipped with anti static ionizing fan which can eliminate static and remove dust
