Windows 7 System Depanelizer PCB Router Machine,PCB Separator

Windows 7 System Depanelizer PCB Router Machine,PCB Separator
Windows 7 System Depanelizer PCB Router Machine,PCB Separator Windows 7 System Depanelizer PCB Router Machine,PCB Separator

Large Image :  Windows 7 System Depanelizer PCB Router Machine,PCB Separator

Product Details:

Place of Origin: Dongguan China
Brand Name: Chuangwei
Certification: CE ISO
Model Number: CW-F01

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: each set be packed in plywood case
Delivery Time: 1-3 days after payment confirm
Payment Terms: T/T, L/C,paypal
Supply Ability: 300 sets per month
Detailed Product Description
Description: PCB Depanelizer Router Standard Working Area: 320*320mm
PCB Thickness: 0.5-3.5mm Warranty: One Year
Frequency:: 50-60Hz Table: 2
High Light:

automatic router machine

,

printed circuit board router

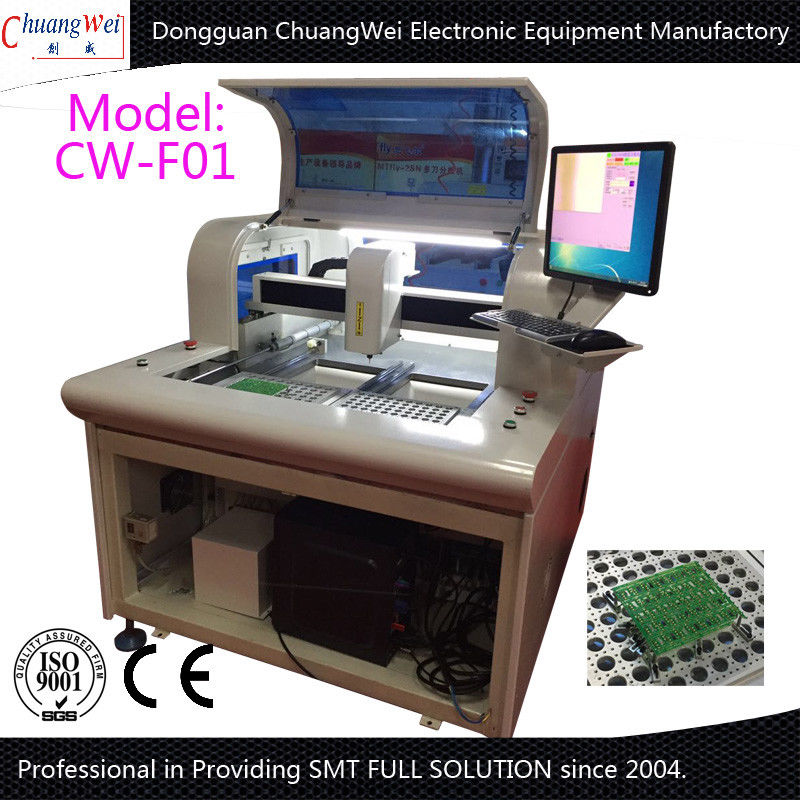

Windows 7 System Depanelizer PCB Router Machine,PCB Separator



1. Manual loading/unloading processing

2. 2-way sliding working exchanger to limit the idle time and simultaneously loading and unloading to reaches the utmost output value.

3. Friendly touch panel with 10X CCD camera to minimize the time of programming

4. Auto fiducial mark point check and cutting route auto compensation to ensure the cutting accuracy

5. Auto router bit check to prevent the bit break incomplete cutting.



Specification

  • Setting Fixture : 2 stations
  • Working Area : X: 320mm, Y: 320mm, Z: 60mm
  • Cutting Area : Max: X: 320mm, Y: 320mm Min: X: 100mm, Y: 100mm Z: 15mm
  • PCB Component Height : Top side: 15mm Bottom side: 45mm(with specific jig)
  • PCB Thickness : 0.5 to 3.0 mm
  • Router Bit Diameter : 0.8 ~ 2.0 mm(Option: Over 2.0mm)
  • Precision of Cutting : ± 0.10 mm
  • Positioning Accuracy : ± 0.01mm
  • Positioning Repeatability : ± 0.02mm
  • Number of Axis in use : 7 Axis (X, YL, YR, Z, Carry, P/P, Conveyor).
  • Driving Speed (Max) : X, YL, YR : 1000mm/sec, Z: 750mm/sec
  • Cutting Speed (Max) : X, Y, Z: 100mm/sec (It's according to the specification of Bit for the best speed setting )
  • Spindle Motor : High speed variable frequency motor 150W (Max.50,000rpm)
  • Bit Change : Manual
  • Cutting Ability : Linear, Circular, U-curve, Arc, L-curve
  • Motor of Axis : 7 Axes (150W AC Servo motors)
  • Bit Shift Count : Max. 2
  • Route Planning : Direct coordinate input or manual guiding with × 10 CCD camera
  • Safety Area Sensor : n/a
  • Bit Break Detection : Standard
  • Program Storage : HDD
  • Program Backup : USB
  • Operating System : Windows 7
  • Man-Machine Interface : Touchscreen Industrial Monitor + Keyboard + Mouse
  • Conveyor Adjustment : Manual adjustment Max: Y: 350mm Min: Y: 100mm
  • Conveyor load capacity : Max: 2 Kg
  • PCB Loading/Unloading : Automatic
  • Power Supply : 3 Phase AC220V±3% 50Hz/ 60Hz, 3.5 kw
  • Air : 0.5Mpa
  • Dimensions : (W)2002mm x (D)1279mm x (H)1716mm + 578mm signal tower
  • Weight : approx. 500 Kg
