Inline or Offline PCB Router Machine PCB Depanelizer Automated Robot

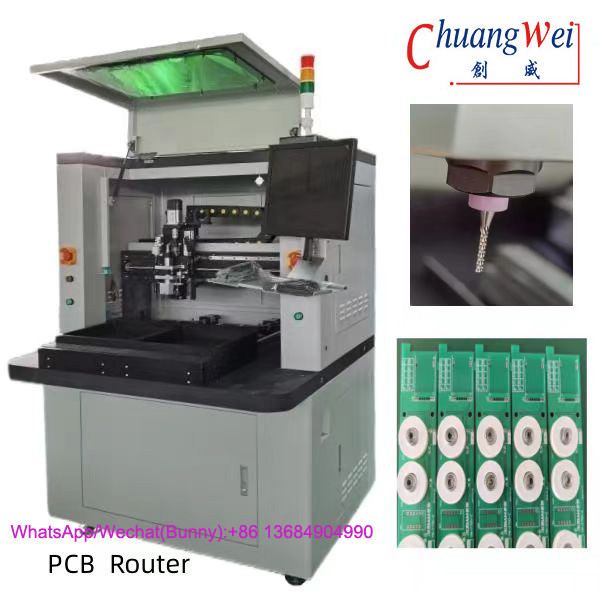

Large Image : Inline or Offline PCB Router Machine PCB Depanelizer Automated Robot

Product Details:

Place of Origin:	China
Brand Name:	Chuangwei
Certification:	CE
Model Number:	CW-F01-S

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	plywood case
Delivery Time:	5 work days
Payment Terms:	Western Union, T/T, L/C, D/A
Supply Ability:	1000 set/ year

Contact Now

Detailed Product Description

Warranty:	1 Year	Vacuum Cleaner:	Yes
Routing Bit Checking:	Yes	Power:	220V, 4.2KW
Weight:	650kgs	Name:	PCB Depanelizer
Highlight:	High Volume PCB Router Machine , PCB Depanelizer Automated Robot , Board PCB Router Machine

Inline or Offline PCB Router Machine PCB Depanelizer Automated Robot

Manufacturer: ChuangWei

Condition: NEW.

It is a stand alone router machine specially designed to route (depanelize) printed circuit board assemblies (PCBA) into individual assemblies. The machine can accomodate larger PCBs in its two table configuration with maximum panel size of 650mm x 500mm. Its advanced control software provides user friendly "visual" programming for rapid and accurate online programming.

Included:

(1) Router Machine
(1) Power Transformer
(1) Vacuum cleaner
(1) Dust collector
(1) User's Guide
(2) Keys

Specifications:

Manufacturer: ChuangWei
Model: CW-F01-S
Deigned for depaneling Printed Circuit Boards and PCB panels
For high volume and low mix production runs
PCB sizes: 50x50mm to 650*500mm, 3mm thick max.
Stress-free breakout and safe board handling without compromising panels
Dust collection built-in
Panels enter on conveyor, Servo-driven router under board runs automatically
Gripping fingers remove routed boards to a pallet on an outfeed conveyor
Controlled by Windows PC in machine's base
May be programmed to carry out prehandlings and checks using tools, manipulators, and Vision system
Pick & Place gantry travel: X (manually adjustable), Y 725mm, Z 75mm (pneumatic), w (manually adjustable)
Router speed: 1500mm/s slew, 75mm/s routing
Automatic broken bit detection
SMEMA transfer protocol
Camera aided teaching system
Tool life and vacuum bag tracking
