Product Details:
Payment & Shipping Terms:
|
| Cutting Length: | Unlimited | Blades Shape: | Two Linear Blades |
|---|---|---|---|
| Material For The Baldes: | High Speed Steel | Type: | Pneumatic Type |
| Application: | Use For Cutting Led Light Bar | Guarranty: | Free For One Year |
| Highlight: | PCB depaneling,PCB Cutting Shear,PCB Separator Machine with LCD Display |
||

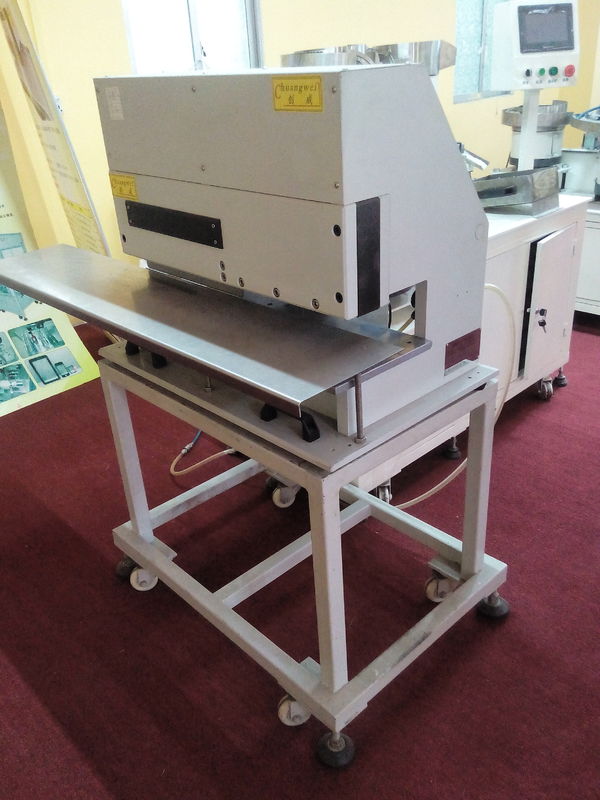

Aluminium PCB Separator Machine with LCD Display Separation unlimited Length PCB:
pcb separator machine fetures:
Motorized Linear Blades separator ( CWVC-3)
1. Motorized Linear Blade separator ( CWVC-3)
2 . Shears boards safely with parts as close as 0.5mm to the score line , including ceramic capacitors
3 . Operator foolproof! Panels cannot be inserted into the knives except on the score line
4 . Pneumatically driven
5 . Handles high components up to 1"
6 . Bow waves that can occur with round knives are avoided
7 . Easy adjusting of distance between knives
Pcb separator specifications :
| Model | CWVC-3 |
| Max. PCB depaneling length | unlimited |
| PCB depaneling thickness | 0.3-3.5 mm |
| Voltage and Power | 110V/220V -- 10W |
| Working air pressure | 0.5-0.7Mpa |
| PCB depaneling speed | due to operator skilled level |
| PCB depaneling machine size | 780x500x620mm |
| PCB depaneling machine weight | 185Kg |
