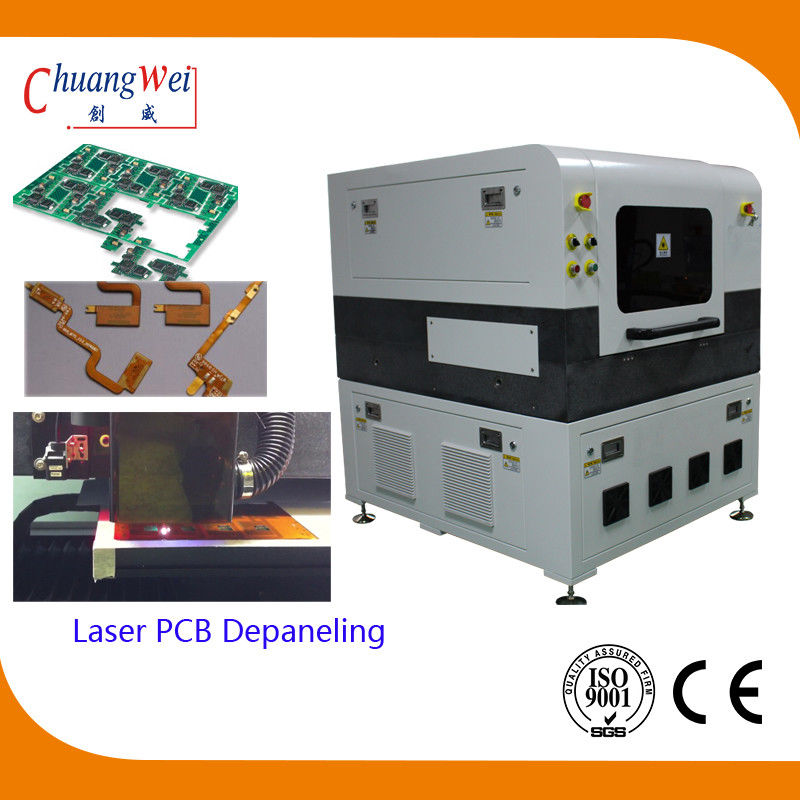

Stainless Steel Pcb UV Laser Depaneling Machine System Optional 110V / 220V

Stainless Steel Pcb UV Laser Depaneling Machine System Optional 110V / 220V
Stainless Steel Pcb UV Laser Depaneling Machine System Optional 110V / 220V

Large Image :  Stainless Steel Pcb UV Laser Depaneling Machine System Optional 110V / 220V

Product Details:

Place of Origin: China
Brand Name: Chuangwei PCB Depaneling Machine
Certification: CE ROHS
Model Number: CWVC-5L

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: each set be packed in plywood case
Delivery Time: 1-3 work days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 260 sets per month
Detailed Product Description
Material:: Stainless Steel Laser: 10-17W
Voltage: 110V/220V Machine Dimension: 1480mm*1360mm*1412 Mm
Machine Weight: 1500kgs Name: UV Laser Depaneling System
High Light:

medical Drying Cabinet

,

desiccant dry cabinets



Stainless Steel Pcb UV Laser Depaneling Machine System Optional 110V / 220V

Stainless Steel Pcb UV Laser Depaneling Machine System Optional 110V / 220V 0

Advantages of Laser PCB depaneling/singulation

  • No mechanical stress on substrates or circuits
  • No tooling cost or consumables.
  • Versatility – ability to change applications by simply changing settings
  • Fiducial Recognition – more precise and clean cut
  • Optical Recognition before PCB depaneling/singulation process begins.
  • Ability to depanel virtually any substrate. (Rogers, FR4, ChemA, Teflon, ceramics, aluminum, brass, copper, etc)
  • Extraordinary cut quality holding tolerances as small as < 50 microns.
  • No design limitation – ability to cut virtually and size PCB board including complex contours and multidimensional boards



Specification

Parameter















Technical parameters

Main body of laser 1480mm*1360mm*1412 mm
Weight of the 1500Kg
Power AC220 V
Laser 355 nm
Laser



Optowave 10W(US)

Material ≤1.2 mm
Precision ±20 μm
Platfor ±2 μm
Platform ±2 μm
Working area 600*450 mm
Maximum 3 KW
Vibrating CTI(US)
Power AC220 V
Diameter 20±5 μm
Ambient 20±2 ℃
Ambient <60 %
The Machine Marble


CE approval

 Stainless Steel Pcb UV Laser Depaneling Machine System Optional 110V / 220V 1


Production flow

Stainless Steel Pcb UV Laser Depaneling Machine System Optional 110V / 220V 2
