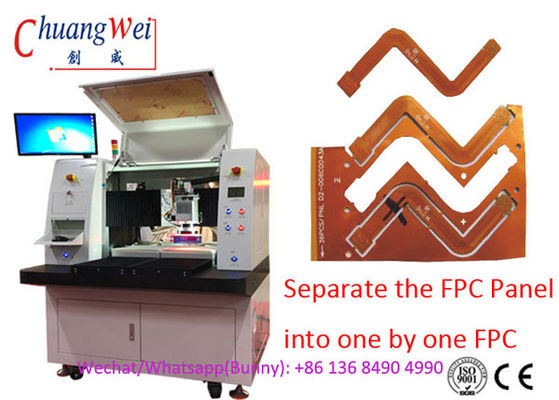

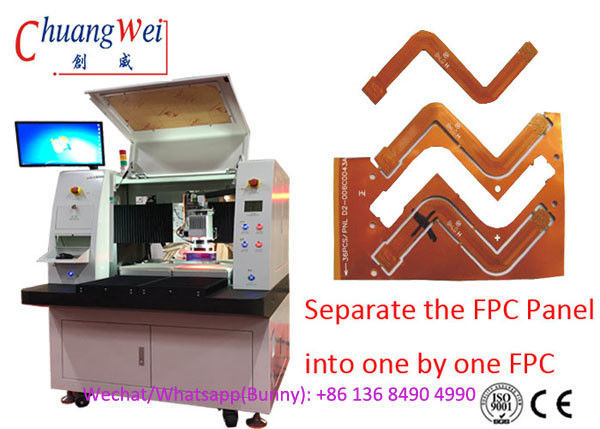

Optowave 355nm PCB Laser Depaneling Machine with No Pressure PCB Cutting

Name: Optowave 355nm PCB Laser Depaneling Machine with No Pressure PCB Cutting
Brand: Chuangwei
SKU: CWVC-5L
Price: 1.00 USD
Availability: InStock
Rating: 4.6 (188 reviews)

Large Image : Optowave 355nm PCB Laser Depaneling Machine with No Pressure PCB Cutting

Product Details:

Place of Origin:	China
Brand Name:	Chuangwei
Certification:	CE Certificate
Model Number:	CWVC-5L

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	each set be packed in plywood case
Delivery Time:	10 days
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	260 sets per month

Contact Now

Detailed Product Description

Material::	Marble	Function:	Depaneling FR4/FPC
Voltage:	110V/220V	Machine Weight:	1500kgs
Warranty:	1 Year	Name:	Laser Depaneling Machine
High Light:	medical Drying Cabinet , desiccant dry cabinets

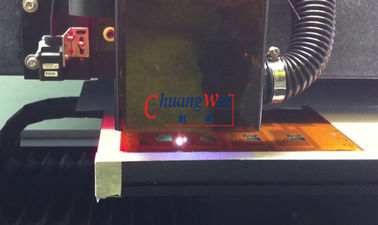

Optowave 355nm PCB Laser Depaneling Machine for No Pressure PCB Cutting

Laser Depaneling Machine Features:

Non-contact cutting process to eliminate stress to the PCB and its delicate components
Reduced micro-cracks and reduced delamination for longer PCB life
Greater flexibility to cut unusual shapes
Faster set up for smaller production batches
More consistent laser accuracy over the life of the tool
Narrower cuts and less dust generated during the laser singulation process
Fewer burrs

Laser Depaneling Machine Specification:

Laser	Q-Switched diode-pumped all solid-state UV laser
Laser Wavelength	355nm
Laser Power	10W/12W/15W/18W@30KHz
Positioning Precision of Worktable of Linear Motor	±2μm
Repetition Precision of Worktable of Linear Motor	±1μm
Effective Working Field	400mmX300mm(Customizable)
Laser Scanning Speed	2500mm/s (max)
Galvanometer Working Field Per One Process	40mmх40mm
