PCB Laser Depaneling Machine Optional laser Source 15W / 17W,PCB Depanelizer Equipment

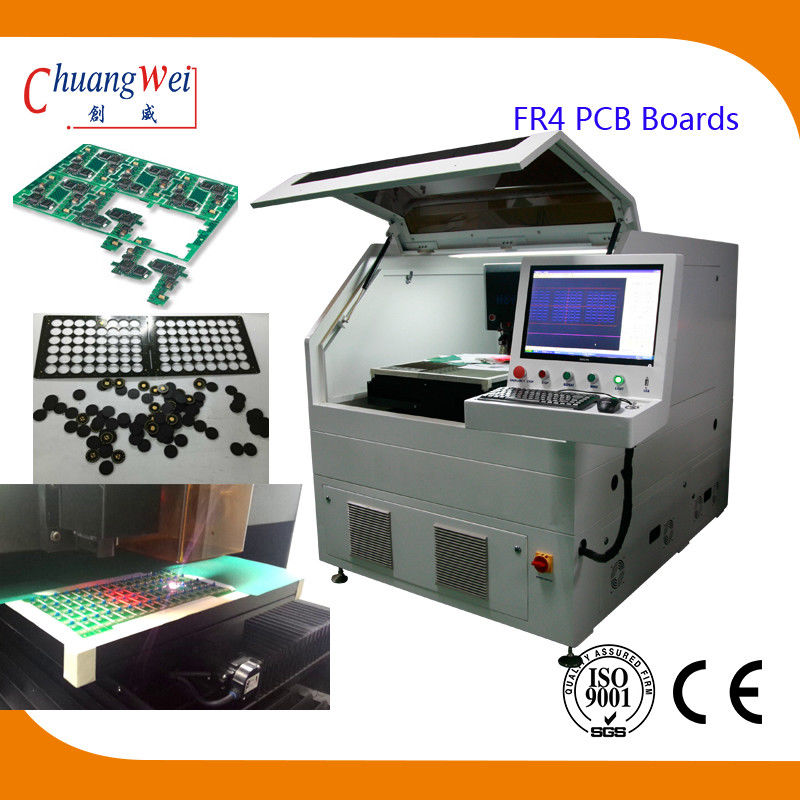

Large Image : PCB Laser Depaneling Machine Optional laser Source 15W / 17W,PCB Depanelizer Equipment

Product Details:

Place of Origin:	China
Brand Name:	Chuangwei
Certification:	CE ROHS
Model Number:	CWVC-5L

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	each set be packed in plywood case
Delivery Time:	1-3 work days
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	260 sets per month

Contact Now

Detailed Product Description

Material::	Marble	PCB:	FR4, FPC
Voltage:	110V/220V	Dimension:	1480mm1360mm 1412 Mm
Weight:	1500kgs	Name:	UV Laser Depaneling
Highlight:	medical Drying Cabinet , desiccant dry cabinets

PCB Laser Depaneling Machine Optional UV Laser Source 15W / 17W,PCB Depanelizer Equipment

UV Laser Depaneling Description:

Neat and smooth edge, no burr or overflow

Wide application range, including FPC exterior cutting, profile cutting, drilling, opening window for covering, etc.

Laser wavelength: 355nm

Rated power: 10W/12W/15W/18W@30KHz

Galvanometer working field Per One Process: 40 × 40mm

Power consumption for the hole machine: 2KW

UV Laser Depaneling Features

More quick and easy, shorten the delivery time;

High quality ,no distortion,surface clean& uniformity;

Gathering the CNC tech,laser tech,software tech…High accuracy,High speed;

Cutting Application

FPC and some relative materials;

FPC/PCB/ Rigid-Flex PCB cutting, Camera module cutting;

UV Laser Depaneling Specification

Laser	Q-Switched diode-pumped all solid-state UV laser
Laser Wavelength	355nm
Laser Power	10W/12W/15W/17W@30KHz
Positioning Precision of Worktable of Linear Motor	±2μm
Repetition Precision of Worktable of Linear Motor	±1μm
Effective Working Field	460mmX460mm(Customizable)
Laser Scanning Speed	2500mm/s (max)
Galvanometer Working Field Per One Process	40mmх40mm
