Product Details:
Payment & Shipping Terms:
|
| Warranty: | Free For One Year | Separating Thickness: | 0.6-3.5mm |
|---|---|---|---|
| Separating Length: | 460mm | Blade Type: | Round And Linear |
| Power: | 110/220V | Type: | Manual |
| High Light: | PCB depaneling,PCB Cutting Shear,Manual PCB Depaneling Equipment |
||

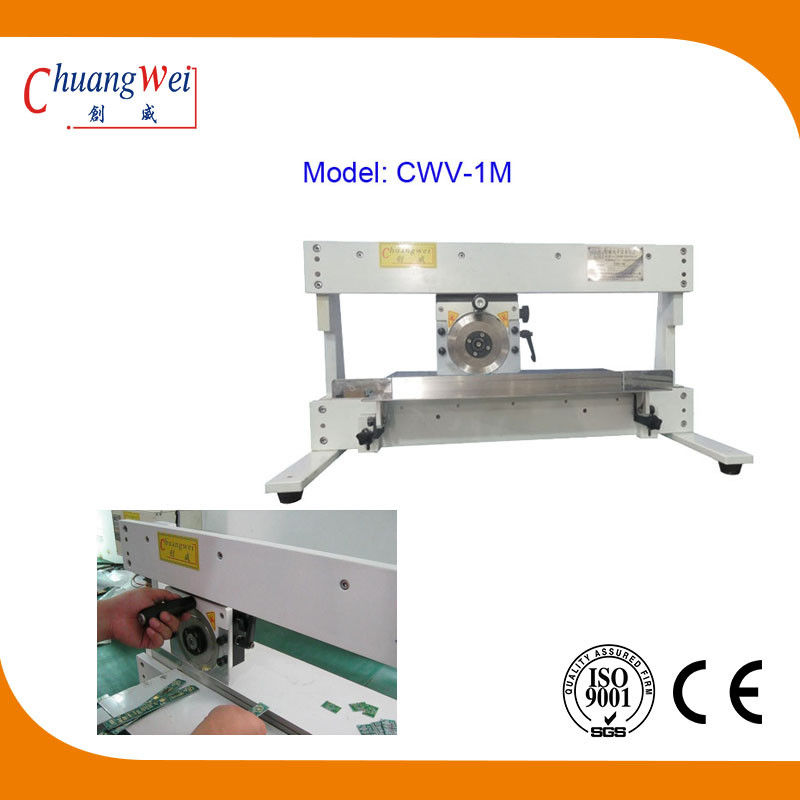

Manual PCB Depaneling Equipment 0.6-3.5mm Separating Thickness
Technical parameters
|
Model |
CWV-1M460 |
|
Max. PCB singulation length |
460mm(can customize) |
|
PCB singulation Thickness |
0.6-3.5mm |
|
PCB singulation speed control |
by hand |
|
PCB singulation machine size |
787x400x436mm |
|
PCB singulation machine weight |
30Kg |
Feature

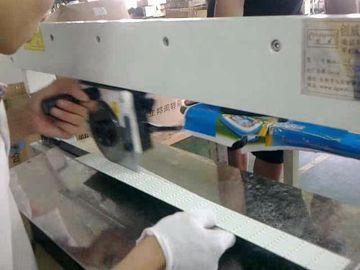

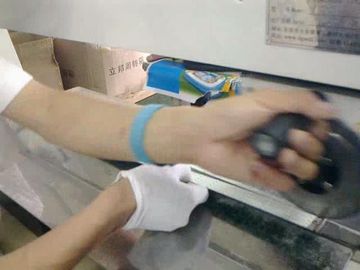

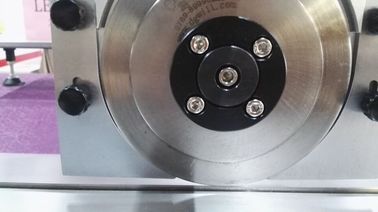

1. Round knife, manually cutting against lower linear knife, for reduced stress
2. Separate pre-scored PCB assembly without stress on either PCB or component
3. One touch programming of cut length with digital display
4. Separating speed is adjusted by a rotary knob
5. Handle Intermittent scoring or cut-outs
6. Board with projected component can be cut precisely
7. Large stainless steel platform on both side of cutting blade prevents board wobble and table height and angle are adjustable
8. Optional PCB conveyor belt to remove finished board
9. Clearance between circular and linear blades are adjustable to fit different groove depth and compensates for blade wear out
Our best service
|
1. Engineers available to service machinery oversea. |
Engineers are available to be sent to freign countries to do machinery training and offer technical support. |
|
2. Mature technique & forerunner to process makes high quality machinery. |
As largest manufactory in South China, we have 12 years experience on PCB separator machines and soldering machines. pcb router machine Our R&D team continuously upgrade the existing machines to meet the market development trend. |
|
3. Effective customer service. pcb router machine |
All of us together are stronger and wiser than any one of us individually. To succeed, we must assume responsibility, cooperate with fellow associates and withdepartments, effectively comminicate with one another, foster enthusiam and participate in decision-making. To be seay reachable by customers and provide prompt replies to solve their problems and create value for customers. |
|
4. One year warranty for the machines except accessories. b router machine |
Robust frame construction and Japanese steel blades obtained good appraise and recognized by and oversea clients. We offer parts for replacement under warranty free of charge, clients only need to bear freight charge. |
|
Our mission: |
Ongoing PCB industry PCB separator technological innovation, to create greater value, allowing customers to success |
|
Our Vision: |
PCB industry to become the world's leading solution providers PCB separator. pcb router machine |
