Product Details:
Payment & Shipping Terms:
|
| Warranty: | One Year | Blade Material: | High Speed Steel |
|---|---|---|---|
| Blade Life: | 7-8 Months | Cutting Thickness: | 0.3-3.5mm |
| Cutting Length: | Unlimit | Type: | Pneumatic |
| High Light: | PCB depaneling,PCB Cutting Shear,Steel Linear Blades PCB Separator |
||

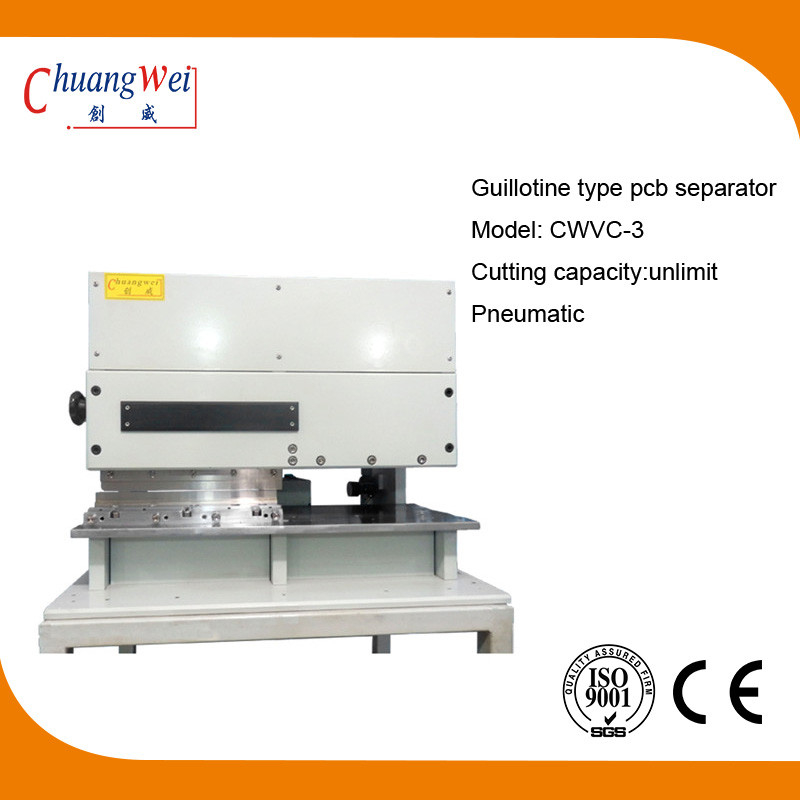

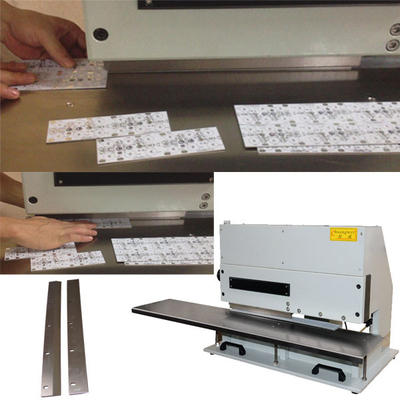

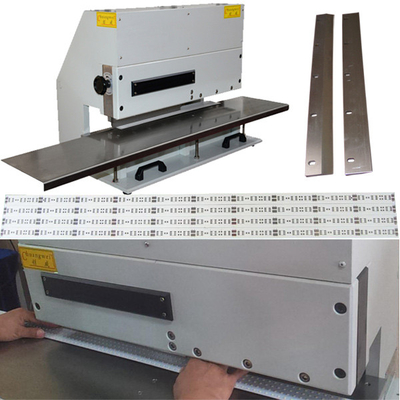

1 Inch Components Height PCB Separator With High Speed Steel Linear Blades
Features:
1. Cut any length metal board more safety and easily.
2. Separates long boards directly,without turn direction .
3. Separates boards up to 2.0mm thick Metal Board
4. Shears boards safely with parts as close as 1 mm to the score line,including ceramic capacitors
5. Operator foolproof! Panels cannot be inserted into the knives except on the score line
6. Handles high components up to50mm
7. Bow waves that can occur with round knives are avoided
8. Easy adjusting of distance between knives
Technical parameters
|
Model: |
CWVC-3 |
|
The Longest Minimize: |
unlimted |
|
Size: |
780mmx500mmx620mm |
|
Minimize Thickness: |
0.3-3.5mm |
|
Working Area: |
330*220mm |
|
Machine Weight: |
185Kg |
Why choose us
|
1.Engineers available to service machinery oversea. |
Engineers are available to be sent to freign countries to do machinery training and offer technical support. |
|
2.Mature technique & forerunner to process makes high quality machinery. |
As largest manufactory in South China, we have 12 years experience on PCB separator machines and soldering machines. pcb router machine Our R&D team continuously upgrade the existing machines to meet the market development trend. |
|
3.Effective customer service. pcb router machine |
All of us together are stronger and wiser than any one of us individually. To succeed, we must assume responsibility, cooperate with fellow associates and withdepartments, effectively comminicate with one another, foster enthusiam and participate in decision-making. To be seay reachable by customers and provide prompt replies to solve their problems and create value for customers. |
|
4.One year warranty for the machines except accessories. b router machine |
Robust frame construction and Japanese steel blades obtained good appraise and recognized by and oversea clients. We offer parts for replacement under warranty free of charge, clients only need to bear freight charge. |
|
Our mission: |
Ongoing PCB industry PCB separator technological innovation, to create greater value, allowing customers to success |
|
Our Vision: |
PCB industry to become the world's leading solution providers PCB separator. pcb router machine |
