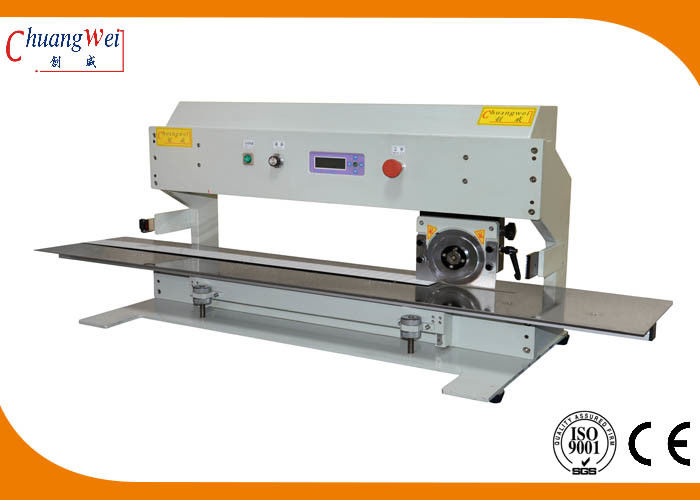

Automatic V - Groove PCB Cutter With Lcd Display And Safe Sensor

Automatic V - Groove PCB Cutter With Lcd Display And Safe Sensor
Automatic V - Groove PCB Cutter With Lcd Display And Safe Sensor Automatic V - Groove PCB Cutter With Lcd Display And Safe Sensor Automatic V - Groove PCB Cutter With Lcd Display And Safe Sensor

Large Image :  Automatic V - Groove PCB Cutter With Lcd Display And Safe Sensor

Product Details:

Place of Origin: Dongguang china
Brand Name: Chuangwei
Certification: CE ISO9001
Model Number: CWV-1A

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: each be packed in plywood case
Delivery Time: 1-3 days after payment confirm
Payment Terms: T/T, L/C, Western Union,paypal
Supply Ability: 300 sets per month
Detailed Product Description
Type: Fully Automatic Warranty: One Year
Cutting Speed: 100/200/300/500 Mm/s Cutting Thickness: 0.6-3.5 Mm
Sensor: IR Infrared Sensor Weight: 55kg
Name: Pcb Cutter
High Light:

PCB depanelization machine

,

V-CUT scoring machine



Automatic V - Groove PCB Cutter With Lcd Display And Safe Sensor CWV-1A





Feature:



1. Separate pre-scored PCB assembly without stress on either PCB or component
2. One touch programming of cut length with digital display
3. Separating speed is adjusted by a rotary knob
4. Handle Intermittent scoring or cut-outs
5, Board with projected component can be cut precisely
6. Large stainless steel platform on both side of cutting blade prevents board wobble and table height and angle are adjustable
7. Optional PCB conveyor belt to remove finished board

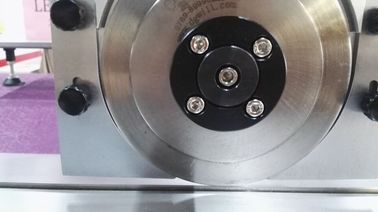

8. Clearance between circular and linear blades are adjustable to fit different groove depth and compensates for blade wear out





Specification:



odel  CWV-1A
pcb cutting length (mm) 460 or 600
cutting speed (mm/s)  100/200/300/500
cutting thickness(mm)

0.6-3.5

power supply(v) 110/220v
size  770*510*450 mm



Automatic V - Groove PCB Cutter With Lcd Display And Safe Sensor 0





Your best choice:



1.Engineers available to service machinery oversea. pcb router machine

Engineers are available to be sent to freign countries to do machinery training and offer technical support.

2.Mature technique & forerunner to process makes high quality machinery. pcb router machine

As largest manufactory in South China, we have 12 years experience on PCB separator machines and soldering machines. pcb router machine
pcb router machine


Our R&D team continuously upgrade the existing machines to meet the market development trend.

3.Effective customer service. pcb router machine

All of us together are stronger and wiser than any one of us individually. To succeed, we must assume responsibility, cooperate with fellow associates and withdepartments, effectively comminicate with one another, foster enthusiam and participate in decision-making. To be seay reachable by customers and provide prompt replies to solve their problems and create value for customers.

4.One year warranty for the machines except accessories. pcb router machine

Robust frame construction and Japanese steel blades obtained good appraise and recognized by and oversea clients. We offer parts for replacement under warranty free of charge, clients only need to bear freight charge.



CE certification:



Automatic V - Groove PCB Cutter With Lcd Display And Safe Sensor 1
