Professional V - Groove PCB Cutting Machine With Six Round Blades

Professional V - Groove PCB Cutting Machine With Six Round Blades
Professional V - Groove PCB Cutting Machine With Six Round Blades Professional V - Groove PCB Cutting Machine With Six Round Blades

Large Image :  Professional V - Groove PCB Cutting Machine With Six Round Blades

Product Details:

Place of Origin: Dongguang china
Brand Name: Chuangwei
Certification: CE ISO9001
Model Number: CWVC-3S

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: each set packed in plywood case
Delivery Time: 1-3 days after payment confirm
Payment Terms: T/T, L/C, Western Union,paypal
Supply Ability: 300 sets per month
Detailed Product Description
Frame: Robust Frame Made Of Solid Iron Cutting Speed: 400mm/s
Cutting Thickness: 0.6-3.5mm Blade Material: High Speed Steel From Japanese
Guarantee: 12 Months Type: Fully Automatic
High Light:

PCB depanelization machine

,

PCB Cutting Machine



Professional V - Groove PCB Cutting Machine With Six Round Blades CWVC-3S





Details of its operation:



With unique cutting method , the circuit board is cut by six blades . It is a group composed of one upper and one lower blade , and is also a cutting unit. There are A, B, C, three groups.



The whole cutting process is divided into three stages from group A blade which cut 40% board then to the group B blade knife cut through groove cutting by group A to complete another 40% .the last 20% is cut by group C blade and finishing. because each cutting volume is small, the stress produced during the cutting progress declined by more than 80% compared with the traditional cut off at a time.


Thus the edge of the board and its surface are very smooth without warping . Currently, it is the only machine that can guarantee the aluminum plate without deformation after cutting .





Specification:



1. V-cut PCB Electronic Separator
2. PCB 0.8 to 3.5mm
3. with long platform
4. PCB length unlimited
5. cut speed 0 to 400mm/s



Max PCB length

unlimited

PCB Thickness

0.8 to 3.5 mm

Working Speed0

0 to 400mm/s

Voltage

220VAC

House color

white

Machine Weight

40kg

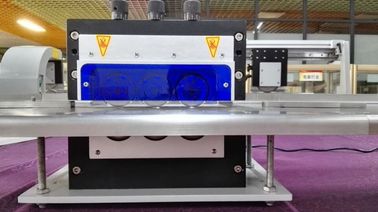

Professional V - Groove PCB Cutting Machine With Six Round Blades 0





Features:



1. this machine applies unique multi sections cutting, the cutting is to be finished by 6 pieces round blade,

2. Working process is pretty smooth, due multi sections cutting

3. there won`t be any deviation when cutting along the v-cut slot, even the v-cut slot is shallow

4. the blade made by high speed steel imported from Sweden, which prolonged the life of the blade

5. precise adjustment of up and down blade.



Competitive advantage:



1. 3 sets of blades share cutting stress to protect pcb from damage,ensure cutting effect.

2. Blade distances could be adjusted by 4 directions(left and right, up and down)

3. with plastic cover in front of blades ensuring safety.



Clients recommendation:

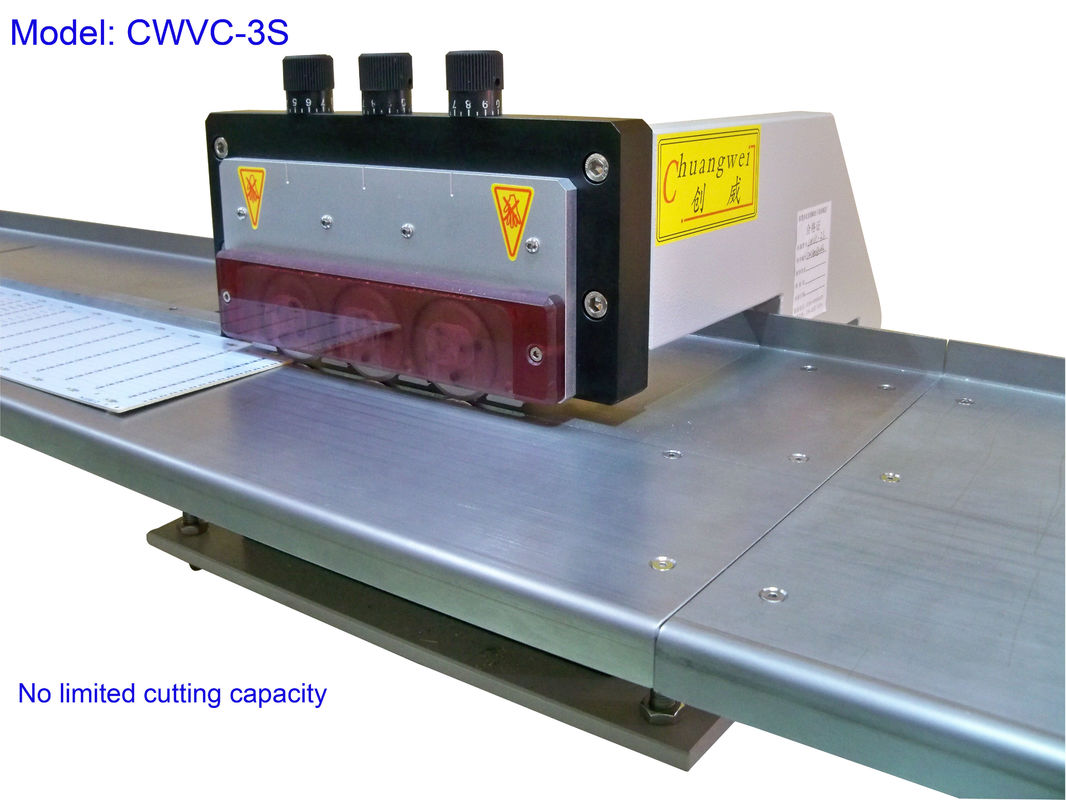

Professional V - Groove PCB Cutting Machine With Six Round Blades 1



Why you should choose us:



1. Engineers available to service machinery oversea. pcb router machine

Engineers are available to be sent to freign countries to do machinery training and offer technical support.

2. Mature technique & forerunner to process makes high quality machinery. pcb router machine


As largest manufactory in South China, we have 12 years experience on PCB separator machines and soldering machines. pcb router machine
pcb router machine


Our R&D team continuously upgrade the existing machines to meet the market development trend.

3. Effective customer service. pcb router machine


All of us together are stronger and wiser than any one of us individually. To succeed, we must assume responsibility, cooperate with fellow associates and withdepartments, effectively comminicate with one another, foster enthusiam and participate in decision-making. To be seay reachable by customers and provide prompt replies to solve their problems and create value for customers.

4. One year warranty for the machines except accessories. pcb router machine


Robust frame construction and Japanese steel blades obtained good appraise and recognized by and oversea clients. We offer parts for replacement under warranty free of charge, clients only need to bear freight charge.
