Product Details:
Payment & Shipping Terms:
|
| Type: | Motor-driven | Separating Speed: | 100/200/300/500 Mm/s |
|---|---|---|---|
| Separating Thickness: | 0.6-3.5 Mm | Power: | 110/220V |
| Blade Material: | Use Imported Japan High Speed Steel | Weight: | 55kg |
| High Light: | PCB depaneling,PCB separators,LCD Display Mini PCB Depaneling Machine |
||

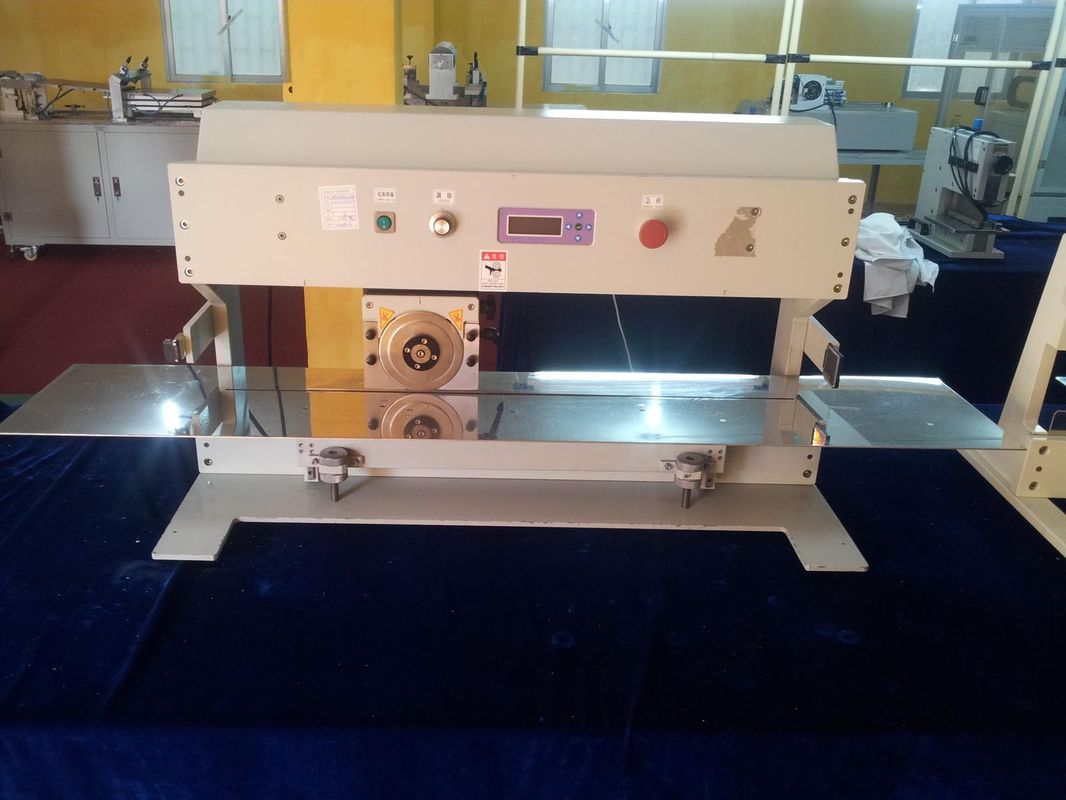

Mini Fully Automatic PCB Depaneling Lcd Display With Sensor Equipment
Specification:
| Model | CWV-1A |
| Max. PCB cutting length | 460 or 600 mm(on request custom made) |
| PCB cutting thickness | 0.6-3.5 mm |
| PCB cutting speed | 100,200,300,500 mm/sec |
| Blade motion | upper circular blade moving automatically |
| Blade motive power operating mode | motor-driven |
| Power supply | 110/220v |
| PCB cutting machine size | 770*510*450mm |
| PCB cutting machine weight | 55kg |
Feature:

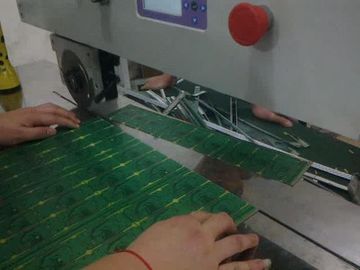

1. Separate pre-scored PCB assembly without stress on either PCB or component
2. One touch programming of cut length with digital display
3. Separating speed is adjusted by a rotary knob
4. Handle Intermittent scoring or cut-outs
5, Board with projected component can be cut precisely
6. Large stainless steel platform on both side of cutting blade prevents board wobble and table height and angle are adjustable
7. Optional PCB conveyor belt to remove finished board
8. Clearance between circular and linear blades are adjustable to fit different groove depth and compensates for blade wear out
Competitive advantage:

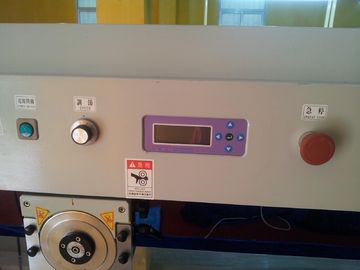

1. LCD display:you can adjust the blade moving trip according to your pcb length.
2. Safety sensor:Installed electronic safe sensor to protect our hands from depaneling when you put your hands near the blades,the machine stop working even though the operator step on pedal switch.
3. It has 4 speed positions.
4. Counter function. it can remind you the blade cutting times.
