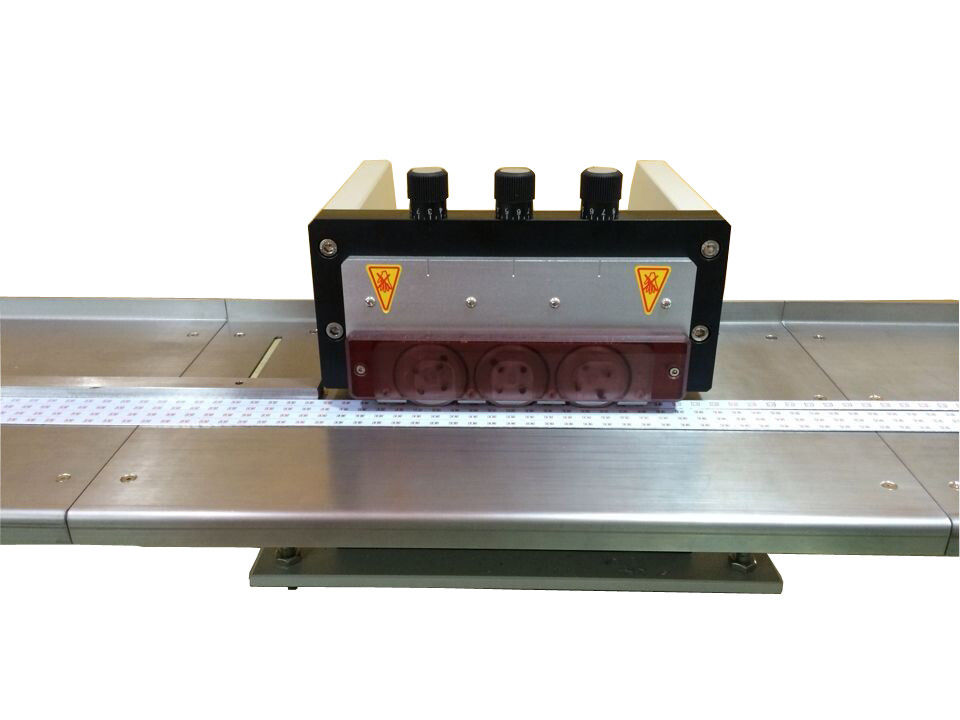

Aluminium PCB V Cutting Machine

Aluminium PCB V Cutting Machine
Aluminium PCB V Cutting Machine Aluminium PCB V Cutting Machine

Large Image :  Aluminium PCB V Cutting Machine

Product Details:

Place of Origin: Dongguang china
Brand Name: chuangwei
Certification: CE ISO9001
Model Number: CWVC-3S

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: plywood case
Delivery Time: 1-3 days after payment confirm
Payment Terms: L/C, T/T, Western Union,paypal
Supply Ability: 300 sets/month
Detailed Product Description
Blade Material: Japanese High Speed Steel Separating Speed: 400mm/s
Separating Length: Unlimit Separating Thickness: 0.6-3.5mm
Power Supply: 110/220V Weight: 50KG
High Light:

metal cutter machine


pcb shear cutter


Aluminium Led Trip Separator V Cutting Machine With Muli Blades





With unique cutting method , the circuit board is cut by six blades . It is a group composed of one upper and one lower blade , and is also a cutting unit. There are A, B, C, three groups.


The whole cutting process is divided into three stages from group A blade which cut 40% board then to the group B blade knife cut through groove cutting by group A to complete another 40% .the last 20% is cut by group C blade and finishing. because each cutting volume is small, the stress produced during the cutting progress declined by more than 80% compared with the traditional cut off at a time.Thus the edge of the board and its surface are very smooth without warping .


Currently, it is the only machine that can guarantee the aluminum plate without deformation after cutting.


Max PCB length


PCB Thickness

0.8 to 3.5 mm

Working Speed0

0 to 400mm/s



House color


Machine Weight



Aluminium PCB V Cutting Machine 0



1. this machine applies unique multi sections cutting, the cutting is to be finished by 6 pieces round blade,

2. Working process is pretty smooth, due multi sections cutting

3. there won`t be any deviation when cutting along the v-cut slot, even the v-cut slot is shallow

4. the blade made by high speed steel imported from Sweden, which prolonged the life of the blade

5. precise adjustment of up and down blade.


Competitive advantage:


1. 3 sets of blades share cutting stress to protect pcb from damage,ensure cutting effect.

2. Blade distances could be adjusted by 4 directions(left and right, up and down)

3. with plastic cover in front of blades ensuring safety.



Why choose us:


1. Engineers available to service machinery oversea


Engineers are available to be sent to freign countries to do machinery training and offer technical support.


2. Mature technique & forerunner to process makes high quality machinery


As largest manufactory in South China, we have 12 years experience on PCB separator machines and soldering machines.
Our R&D team continuously upgrade the existing machines to meet the market development trend.


3. Effective customer service


All of us together are stronger and wiser than any one of us individually. To succeed, we must assume responsibility, cooperate with fellow associates and withdepartments, effectively comminicate with one another, foster enthusiam and participate in decision-making. To be seay reachable by customers and provide prompt replies to solve their problems and create value for customers.


4. One year warranty for the machines except accessories


Robust frame construction and Japanese steel blades obtained good appraise and recognized by and oversea clients. We offer parts for replacement under warranty free of charge, clients only need to bear freight charge.

Our mission:
Ongoing PCB industry PCB separator technological innovation, to create greater value, allowing

customers to success


Our Vision:
PCB industry to become the world's leading solution providers PCB separator
