PCB Depanelizer with Multi-blades High Speed Cutting PCB LED Panel

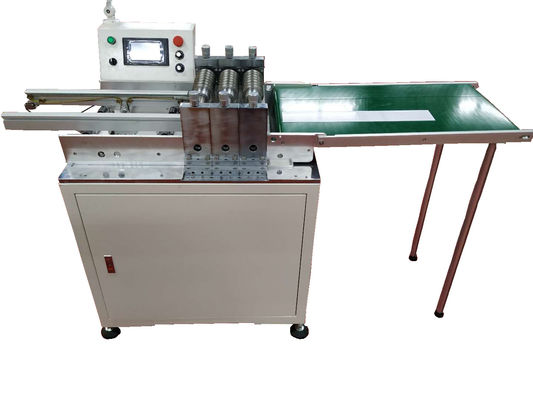

Large Image : PCB Depanelizer with Multi-blades High Speed Cutting PCB LED Panel

Product Details:

Place of Origin:	China
Brand Name:	Chuangwei pcb depanelizer
Certification:	CE certificate
Model Number:	CWVC-5 pcb depanelizer

Payment & Shipping Terms:

Minimum Order Quantity:	1Set
Price:	Negotiable
Packaging Details:	plywood case
Delivery Time:	10 work days
Payment Terms:	Western Union, T/T, cash, credit card
Supply Ability:	8 sets / month

Contact Now

Detailed Product Description

Material:	High Speed Steel	Number Of Blades:	8 /9 /10 Sets (made According To Customers Requirement )
MOQ:	1 Set	Cutting Length:	Unlimited
Warranty:	Free For One Year	Shipping Way:	FOB / EXW
High Light:	pcb assembly machine , pcb shear cutter

PCB Depanelizer with Multi-blades High Speed Cutting Pcb LED Panel Specification:

Maximum board length : unlimited

Board thickness :0.6-5.0mm

Plate feeding speed : 300-500mm/s

Blade material :SKD11

Working temperature : 10-35℃

Storage temperature :-20-50℃

Voltage : 220 /110 V

Dimension : 2200 mm*630 mm*1150mm

Features of machine:

1) The machine adopts the computer screen control with a counting device , which you can use to preset the processing production . And the space of cutting tool is visible on the screen .

2) It can cut many boards with multiple sets of knives work at the same time

3) The knife flywheel is adjustable as a whole from 0 to 5mm

4) The distance between knives is regulable as well , applying to pcb with width from 15mm to 20mm .

5) The blade is made of imported high speed steel material , which is durable and have a long service life 6) It is convenient to adjust the cutting speed through rotary knob .

7) No limits of the cutting length .

8) Thickness range of pcb : 0.2-5.0mm

9) With a conveyor belt line , the separated pcb can be send out directly to reduce pick- and-place .

10) The machine adopts multiple blade to separate boards with simple operation and high efficiency , fitted for batch production.

LCD control:

PCB Depanelizer with Multi-blades High Speed Cutting PCB LED Panel 0
