PCB depaneling PCBA Depanelizer manul In SMT Assembly Line

small.img.alt small.img.alt small.img.alt small.img.alt

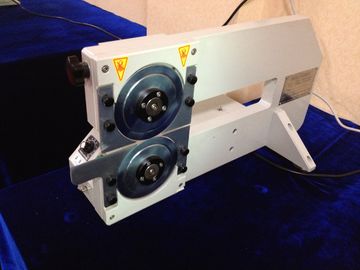

Large Image :  PCB depaneling PCBA Depanelizer manul In SMT Assembly Line

Product Details:

Place of Origin: China
Brand Name: Chuangwei pcb depanelizer
Certification: CE GlobalMarket
Model Number: CWVC-1 pcb depanelizer

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywooden Case will be the first consideration
Delivery Time: within 3 days after receive the payment
Payment Terms: T/T, Western Union, L/C , cash
Supply Ability: 1000 Sets/Year
Detailed Product Description
Max. Pcb Separation Length: 330mm Name: Pcb Depanelizer
MOQ: 1 Set Payment Term: T/T , Paypal , Credit Card
Delievery Time: 3-5 Days After Receive The Payment Shipping Way: According To Customers Requirement
High Light:

V-CUT scoring machine


PCB Cutting Machine


Hand Push PCB  Depanelizer In SMT Assembly Line


Give your products a cost-effective quality improvement bump with affordable CWVC-1 PCB depaneler
Affordable, dependable CWVC-1 PCB depaneler keeps pace with low through mid-volume production, providing reliable, burr-free separation with no stress to the boards or nearby components.
Operation is quick and easy. Simply align the scoring line with the extended lower guide. Lock the upper blade to the exact thickness of the PCB. The lower blade transports and cuts the board while the upper "coasting" blade acts as a guide to maintain proper alignment with the pre-scored groove.
CWVC-1 improves product quality over hand-separation of panels by eliminating the stress caused by "snapping" the boards apart. This stress often causes microcracks in solder joints and/or delamination of boards, both of which can lead to critical failures in testing or in the field.




Features :


1. Minimize the shearing stress to avoid micro-cracks of the solder jointsc.
2. Guiding device of the "V-CUT" of the PCBc.
3. Ball bearing slideways for easy setting of the PCB edge guides .
4. Ball bearing slideways for easy setting of the height of the tabletop .
5. Easy operating modes : Manual by handwheel, semi-automatic by pressing the start button or fully-automatic by continuous running .
6. Cutters can be re-grinded
7. The shape of the cutter can be customer made



Package : plywooden case (free)



Specification :


Pcb Separator machine Size : 420mm x 280mm x 400 mm
The Longest Minimize :  330mm
Minimize Speed :    0-40mm/s
cutting thickness :    1.0-3.5mm
Pcb Separator Machine Weight : 70Kg



Our Advantages :


1 . CWVC-1 Pcb separator original manufacturers, price concessions

2 . Promise day technical support services

3 . Limit the handling of complaints, half an hour back to customers

4 . Experts , the provision of professional PCB sub-programme

5 . Reliable machine maker,we get Experts--15,each one got over 6 years experience,equipment quality will be satisfying .
