| Cutting Length: | 460 / 700 | MOQ: | 1 Set |
|---|---|---|---|
| Warranty: | Free For One Year | Warranty: | Free For One Year |
| Establish Year: | 1999 | Blades: | Linear And Circle Blades |
| Name: | Pcb Depaneling Machine | ||
| High Light: | pcb depanelization,PCB Cutting Shear |
||

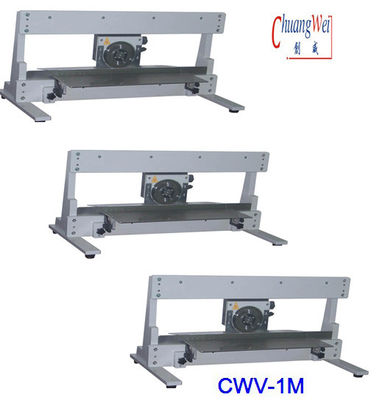

Circuit Board Depaneling Machine Operated By Hand , electric control
Feature :
1. It is pneumatically driven and electric control , the straight knife type separator machines were designed to separate pre-scored panel boards carefully , without bending or tension stress . Even sensitive SMD-components like ceramic capacitors will not be damaged by the separate process . Due the special design of the knives also boards with high components placed closed to the edages can be separated safely .
2 . No vibration during the process to prevent damage to precise PCB
3. Gap for insertion of the board can simply be adjusted by means of the adjusting knob , low friction design is applied
4. Lower knife height adjustable, no thin plates are required after re-sharpening the cutting blade
5. Operation and maintenance can be done also by unskilled personnel .
Specifications:
|
Model: |
CWV-1M720 |
|
Machine Size: |
1027x400x436mm |
|
separation length: |
720mm |
|
Minimize Speed: |
Manual |
|
Minimize Thickness: |
0.6-3.5mm |
|
Machine Weight: |
45kg |
|
Model: |
CWV-1M460 |
|
Machine Size: |
787x400x436 mm |
|
separation length: |
460mm |
|
Minimize Speed: |
Manual |
|
Minimize Thickness: |
0.6-3.5mm |
|
Machine Weight: |
30Kg |
Competitive Advantage:
1. CWV-1M Pcb depanelizer original manufacturers, price concessions
2. Day technical support services
3. Limit the handling of complaints, half an hour back to customers
4. Depanel Experts, the provision of professional PCB sub-programme
