| Power: | 220V, 4.2KW | Board Positioning: | Dual Workstation With Nest Fixture Or Pin Fixture |
|---|---|---|---|
| Resolution: | ±0.01mm | Panel Location: | Located By Tooling Holes Or Edges Of PCB |
| Tool Change: | Manual | Standard Working Area: | 320*320mm,450*350mm,etc. |
| Machine Weight: | 500kgs | Working Table: | 2 |
| High Light: | 4.2KW PCB Router Cutting Machine,Manual Tool Change PCB Cutting Router,450*350mm PCB Router Cutting Machine |
||

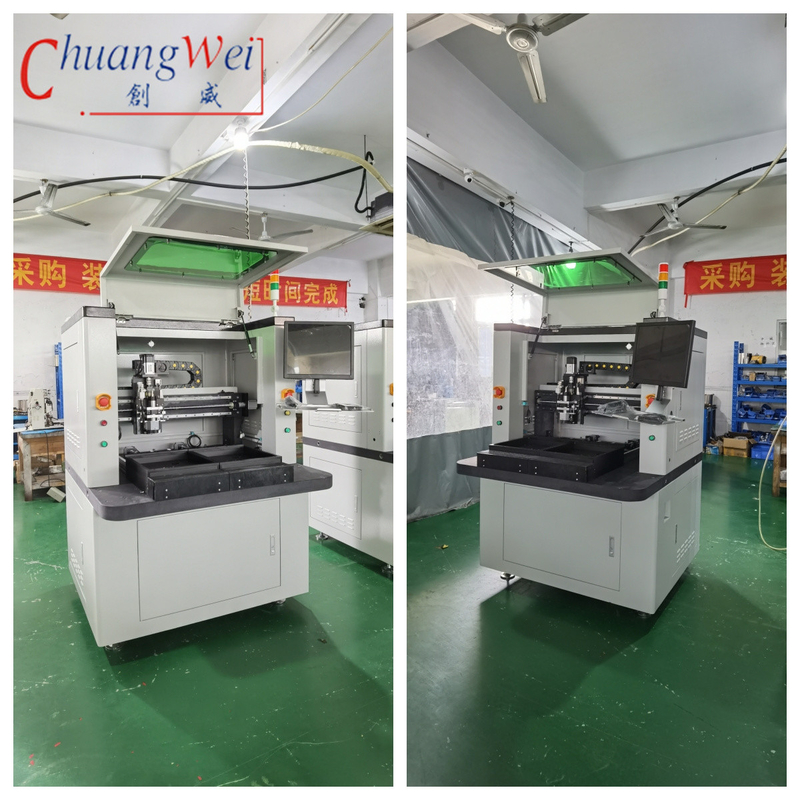

The PCB Router Machine is a stand-alone CNC-controlled router specifically designed for processing printed circuit boards (PCB). It is capable of performing routing, depaneling, and other operations with high accuracy and precision. This machine is equipped with a high-precision servo motor and an advanced CCD camera system, allowing it to perform with a resolution of ±0.01mm. Its 4.2KW power input of 220V allows the machine to process a variety of materials with ease. Additionally, it is equipped with manual loading/unloading and vision-assisted point-to-point manual teaching programming, making it a reliable and efficient PCB routing equipment.
| Parameter | Value |
|---|---|
| Resolution | ±0.01mm |
| Warranty | One Year |
| Machine weight | 500kg |
| Standard working area | 320*320mm,450*350mm,etc. |
| Machine dimension | 113*140*108cm |
| Panel Thickness | 0.5-3.5mm |
| Dust filtration system | 3KW Vacuum Cleaner |
| Panel Location | Located By Tooling Holes Or Edges Of PCB |
| Power | 220V, 4.2KW |
| Vision system | High Resolution CCD Video Camera |
Chuangwei is a professional manufacturer of Stand Alone CNC PCB Router Machines, which are widely used in the electronics industry. Our machines are made of high-quality materials and certified by CE ISO. Our PCB router machine has a working table of 2 and a panel thickness of 0.5-3.5mm. The panel location is located by tooling holes or edges of PCB, and the standard working area is 320*320mm, 450*350mm, etc. The machine weight is 500kgs.
Our PCB router machine offers high precision, fast speed, and reliability. The machine has a built-in operating system which allows for easy control and automatic operation. It is equipped with a high-speed spindle and an advanced servo system. It also offers a variety of tooling options to meet different needs.
We offer the best price for our routers and a minimum order quantity of 1 set. Our delivery time is 7 days after payment confirmation. We accept payment by T/T, L/C, and PayPal. We also provide custom packaging in plywood cases. Our supply ability is up to 100 sets/month.
If you are looking for a reliable and high-performance printed circuit board router, then look no further than Chuangwei Stand Alone CNC PCB Router Machine. Choose us, and you will get the best quality, best price, and best service.
Chuangwei is a professional printed circuit board router, pcb cnc router, pcb depaneling router manufacturer, and we provide the best quality PCB Router Machine. It has CE and ISO certification, with a minimum order quantity of 1 set. The price is negotiable, and the package will be plywood case. Delivery time is 7 days after payment confirmation. Payment terms are T/T, L/C, Paypal. The supply ability is 100 sets/month, and we offer a one year warranty. The vision system is high resolution CCD video camera. The editing functions are dry run vision assisted/test run mode. The manipulator repeatability is ±0.02mm, and the panel location is located by tooling holes or edges of PCB.
Dongguan
1 Set
Negotiable
plywood case
7 days after payment confirm
100 Sets/Month
One Year
High Resolution CCD Video Camera
±0.02mm
Located By Tooling Holes Or Edges Of PCB
The PCB router machine is shipped in a wooden box to ensure that it is protected from any damage during transit. The box is sealed with a strong tape to prevent any moisture or rainwater from entering the box. The box also contains a protective foam insert to provide extra protection to the machine. Additionally, a packing list is included in the box to make sure the customer receives the correct items.
The box is then shipped in a larger cardboard box which is also taped and sealed. The cardboard box also includes a packing list and shipping label. This is to ensure that the customer is able to easily identify the contents and for tracking purposes.
The whole package is then shipped via a trusted carrier such as FedEx or UPS. The delivery time will vary depending on the location of the customer.
A: The brand of the PCB Router Machine is Chuangwei.
A: The PCB Router Machine is made in Dongguan.
A: Yes, the PCB Router Machine has CE ISO certifications.
A: The minimum order quantity is 1 Set.
A: The price of the PCB Router Machine is negotiable.
