Product Details:
Payment & Shipping Terms:
|
| Board Positioning: | Dual Workstation With Nest Fixture Or Pin Fixture | Editing Function: | Dry Run Vision Assisted / Test Run Mode |
|---|---|---|---|
| Loading/Unloading: | Manual | Standard Working Area: | 320*320mm,450*350mm,etc. |
| Dust Filtration System: | 3KW Vacuum Cleaner | Power: | 220V, 4.2KW |
| Vision System: | High Resolution CCD Video Camera | Tool Change: | Manual |
| High Light: | 2.0mm Bit PCB Router Machine,High Resolution PCB Router Machine,PCB Router Machine with CCD Camera |
||
The PCB Router Machine is a cutting-edge printed circuit board router designed for a wide range of applications. It offers unparalleled performance, with a dust filtration system of 3KW Vacuum Cleaner, reliable tool changes, and a one-year warranty. It is suitable for routing various PCB materials like FR1, FR4, MCPCB, etc., and its Windows 7 system makes it easy to use. The machine is compact and can fit into small spaces, with dimensions of 113*140*108cm. It is a high-performance PCB Router Cutting Machine for all your needs.
| Parameter | Value |
|---|---|
| Tool Change | Manual |
| Resolution | ±0.01mm |
| Loading/Unloading | Manual |
| Machine weight | 500kgs |
| Routing Bit | 0.8/1.2/1.5/1.8/2.0mm |
| Editing Function | Dry Run Vision Assisted / Test Run Mode |
| Standard working area | 320*320mm,450*350mm,etc. |
| Panel Location | Located By Tooling Holes Or Edges Of PCB |
| Working Table | 2 |
| Panel Thickness | 0.5-3.5mm |

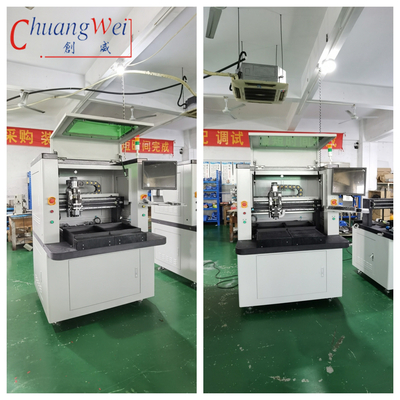

Chuangwei Stand Alone CNC PCB Router Machine is a special equipment for PCB depaneling. It is suitable for all kinds of different size and shape of PCB board. It is designed with two working tables and 3KW Vacuum Cleaner dust filtration system, which ensures the cleanliness of the production environment and the quality of the product. The board positioning is equipped with dual workstations and nest fixture or pin fixture, and the spindle motor is KAVO spindle. It is CE and ISO certified and the minimum order quantity is 1 set. The price is negotiable and the package is plywood case. The delivery time is 7 days after payment confirmation and the payment terms are T/T, L/C and paypal. The supply ability of this product is up to 100 sets per month.
Chuangwei, a leading manufacturer from Dongguan, offers customized PCB Router Machine with CE and ISO certification. The minimum order quantity is 1 set, and the price is negotiable. It is packed in plywood case, and will be delivered within 7 days after the payment is confirmed. Payment methods include T/T, L/C, and Paypal. The supply ability is 100 sets per month. The panel thickness is 0.5-3.5mm, and the resolution is ±0.01mm. The machine weight is 500kgs. It is an ideal tool for PCB depaneling router, automatic router machine, and PCB Routing Equipment with Windows 7 System.
PCB Router Machines are shipped in sturdy, well-constructed boxes that are designed to protect your machines during transit. All machines are individually wrapped in bubble wrap and placed inside the box. The box is then sealed and labeled with the appropriate shipping information.
The boxes are generally shipped via a reputable courier service such as FedEx or UPS. When your machine arrives, it is your responsibility to inspect the package for any signs of damage or tampering. If the package appears to be damaged in any way, it is important to refuse delivery and contact us immediately.
We take great care in ensuring that each machine is packaged properly and securely for safe and efficient delivery. If you have any questions about the packaging and shipping of your PCB Router Machine, please contact us and we will be happy to assist you.
