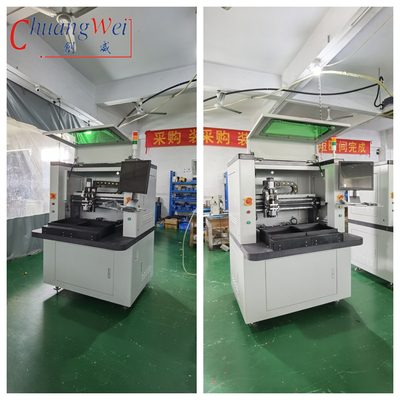

2 Working Table Manual PCB Router Depaneling Equipment For FR1, FR4, MCPCB

Name: 2 Working Table Manual PCB Router Depaneling Equipment For FR1, FR4, MCPCB
Brand: Chuangwei
SKU: Chuangwei
Price: 1.00 USD
Availability: InStock
Rating: 4.9 (117 reviews)

Large Image : 2 Working Table Manual PCB Router Depaneling Equipment For FR1, FR4, MCPCB

Product Details:

Place of Origin:	Dongguan
Brand Name:	Chuangwei
Certification:	CE ISO

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	plywood case
Delivery Time:	7 days after payment confirm
Payment Terms:	T/T, L/C,paypal
Supply Ability:	100 Sets/Month

Contact Now

Detailed Product Description

Warranty:	One Year	Machine Weight:	500kgs
PCB Material:	FR1, FR4, MCPCB,etc.	Panel Thickness:	0.5-3.5mm
Routing Bit:	0.8/1.2/1.5/1.8/2.0mm	Working Table:	2
Resolution:	±0.01mm	Board Positioning:	Dual Workstation With Nest Fixture Or Pin Fixture
High Light:	2 Working Table PCB Router , Manual PCB Router Depaneling Equipment , PCB Router for FR1

Product Description:

PCB Router Machine is an automatic router machine with a CCD camera system for PCB depaneling, which offers a fast, reliable and accurate way to make precise cuts in PCB panels.

This PCB Router Machine features a panel thickness of 0.5-3.5mm, which can be located by tooling holes or edges of PCB. It also provides an editing function with dry run vision assisted and test run mode. With a total machine weight of 500kgs and machine dimension of 113*140*108cm, this PCB Router Machine is perfect for your depaneling needs.

Whether for small-scale production or large-scale industrial production, PCB Router Machine is the perfect choice. Its advanced CCD camera system and robust construction make it reliable and easy to operate. Its fast speed and high accuracy guarantee a perfect depaneling experience.

Don’t hesitate, choose PCB Router Machine for your depaneling needs and get the best results every time.

Features:

Product Name: PCB Router Machine
Routing Bit: 0.8/1.2/1.5/1.8/2.0mm
Working Table: 2
Panel Thickness: 0.5-3.5mm
PCB Material: FR1, FR4, MCPCB,etc.
Spindle motor: KAVO Spindle
PCB Depaneling Router
PCB Routing Equipment with Windows 7 System

Technical Parameters:

Name	PCB Router Machine/PCB Routing Equipment
Programming	Vision Assisted Point To Point Manual Teaching
Standard working area	320320mm,450350mm,etc.
Working Table	2
Routing Bit	0.8/1.2/1.5/1.8/2.0mm
Panel Location	Located By Tooling Holes Or Edges Of PCB
Resolution	±0.01mm
Warranty	One Year
Board Positioning	Dual Workstation With Nest Fixture Or Pin Fixture
Panel Thickness	0.5-3.5mm

Applications:

Chuangwei PCB Router Machine/PCB Routing Equipment is a perfect choice for depaneling printed circuit boards (PCB). It is designed with dual workstation with nest fixture or pin fixture for board positioning, manual tool change for different cutting, and 3KW vacuum cleaner for dust filtration system. It has a power of 220V and 4.2KW, and has been certified with CE ISO. From Dongguan, it can be ordered with a minimum order quantity of 1 set and price negotiable. It can be packaged in a plywood case and delivery time is 7 days after payment confirm. The payment terms are T/T, L/C,paypal, and it has a supply ability of 100 Sets/Month. This PCB Router Depaneling Equipment is a perfect PCB Depaneling Router with CCD Camera System for manufacturers in the electronics industry.

Customization:

PCB Router Machine/PCB Routing Equipment

Brand Name: Chuangwei

Place of Origin: Dongguan

Certification: CE ISO

Minimum Order Quantity: 1 Set

Price: Negotiable

Packaging Details: plywood case

Delivery Time: 7 days after payment confirm

Payment Terms: T/T, L/C,paypal

Supply Ability: 100 Sets/Month

Name: PCB Router Machine/PCB Routing Equipment

Routing Bit: 0.8/1.2/1.5/1.8/2.0mm

Loading/Unloading: Manual

Tool Change: Manual

Dust filtration system: 3KW Vacuum Cleaner

Keywords: pcb depaneling router, Stand Alone CNC PCB Router Machine, pcb depaneling router

Packing and Shipping:

Packaging and Shipping for PCB Router Machine

We provide professional and secure packaging and shipping services for PCB Router Machine.

The PCB Router Machine and all accessories are carefully packaged in cardboard boxes to ensure their safety during transit.
We use reliable and fast shipping companies, such as UPS, USPS, FedEx or DHL, for the shipment of the PCB Router Machine.
We provide tracking numbers to customers to enable them to track their products during transit.
We make sure that all products reach their destination in a timely manner.

FAQ:

Q: What is the brand name of the PCB Router Machine?: A: The brand name of the PCB Router Machine is Chuangwei.
Q: Where is the PCB Router Machine manufactured?: A: The PCB Router Machine is manufactured in Dongguan, China.
Q: Does the PCB Router Machine have any certifications?: A: Yes, the PCB Router Machine has CE and ISO certifications.
Q: What is the minimum order quantity for the PCB Router Machine?: A: The minimum order quantity for the PCB Router Machine is 1 set.
Q: How much does the PCB Router Machine cost?: A: The cost of the PCB Router Machine is negotiable.
