Product Details:
Payment & Shipping Terms:
|
| Name: | PCB Router Machine/PCB Routing Equipment | Loading/Unloading: | Manual |
|---|---|---|---|
| PCB Material: | FR1, FR4, MCPCB,etc. | Spindle Motor: | KAVO Spindle |
| Manipulator Repeatability: | ±0.02mm | Routing Bit: | 0.8/1.2/1.5/1.8/2.0mm |
| Panel Location: | Located By Tooling Holes Or Edges Of PCB | Warranty: | One Year |
| High Light: | Dual Workstation PCB Router,0.01mm Resolution PCB Router Machine,CCD Video Camera PCB Router Machine |
||

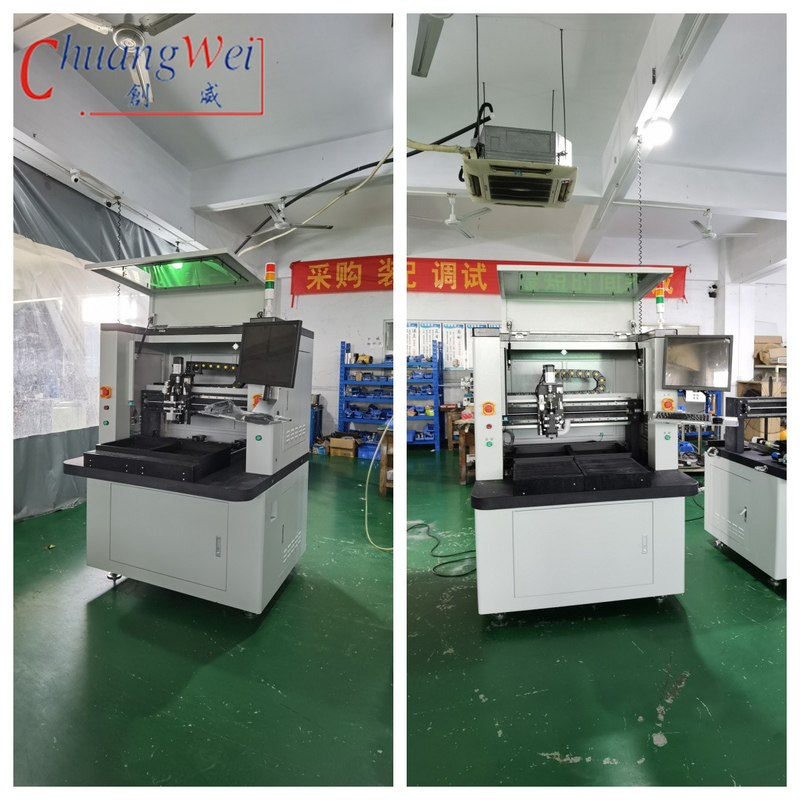

The PCB Router Machine is an advanced, automated solution for PCB depaneling and routing applications. This machine is capable of cutting and routing through various PCB materials such as FR1, FR4, MCPCB, etc. It can locate the panel by either the tooling holes or the edges of the PCB. It also has a vision-assisted dry-run mode and a test run mode for editing functions. The manual tool change ensures the accuracy of the finished product. Moreover, this machine can process PCBs with a thickness ranging from 0.5 to 3.5mm. This PCB Router Cutting Machine is the perfect choice for PCB depaneling and routing applications. It is highly reliable, accurate and efficient. It can help you achieve the desired results in the shortest time possible.
| Name | Specifications |
|---|---|
| Editing Function | Dry Run Vision Assisted / Test Run Mode |
| PCB Material | FR1, FR4, MCPCB,etc. |
| Loading/Unloading | Manual |
| Programming | Vision Assisted Point To Point Manual Teaching |
| Vision system | High Resolution CCD Video Camera |
| Board Positioning | Dual Workstation With Nest Fixture Or Pin Fixture |
| Name | Stand Alone CNC PCB Router Machine, PCB Routing Equipment with Windows 7 System, Stand Alone CNC PCB Router Machine. |
| Warranty | One Year |
| Machine dimension | 113*140*108cm |
| Machine weight | 500kgs |
Chuangwei PCB Router Cutting Machine is the ideal choice for those who need pcb routing equipment with Windows 7 system. It is an automatic pcb router with CE ISO certification, manufactured in Dongguan, China. It comes with minimum order quantity of 1 set, and negotiable price. The packaging details are in the form of plywood case, and the delivery time is estimated to be 7 days after payment confirmation. The payment terms are T/T, L/C, paypal. The supply ability is estimated to reach up to 100 sets/month. The warranty for this machine is one year, and the machine weight is around 500kgs. The machine dimension is 113*140*108cm. The dust filtration system is a 3KW Vacuum Cleaner with KAVO Spindle.
Chuangwei PCB Router Machine is a specialized depaneling router with CCD camera system, designed to work with various substrates such as FR4, CEM-1, CEM-3, rigid flex, etc. It’s a PCB router cutting machine that provides automatic routing for PCBs with high precision and accuracy. The spindle motor is equipped with KAVO Spindle, with a standard working area of 320*320mm,450*350mm,etc. The machine is capable of loading/unloading via manual operations, and editing function is available with dry run vision assisted/test run mode, with panel location located by tooling holes or edges of PCB.
This PCB Router Machine is certified with CE and ISO and minimum order quantity is 1 set. Price is negotiable and delivery time is 7 days after payment confirmation. Payment terms include T/T, L/C, Paypal, with a supply ability of 100 sets/month. The packaging details are plywood case.
PCB Router Machine is packaged for shipment in a box or crate that meets all size and weight requirements. The box or crate is lined with foam or other cushioning material to protect the machine during transit. The box or crate is sealed with tape to ensure it is secure while being shipped.
The PCB Router Machine will be shipped via a reliable freight carrier and will be tracked throughout the entire shipping process. It is important to inspect the machine upon arrival and check for any signs of damage. If any damage is found, the customer must report it to the carrier immediately.
