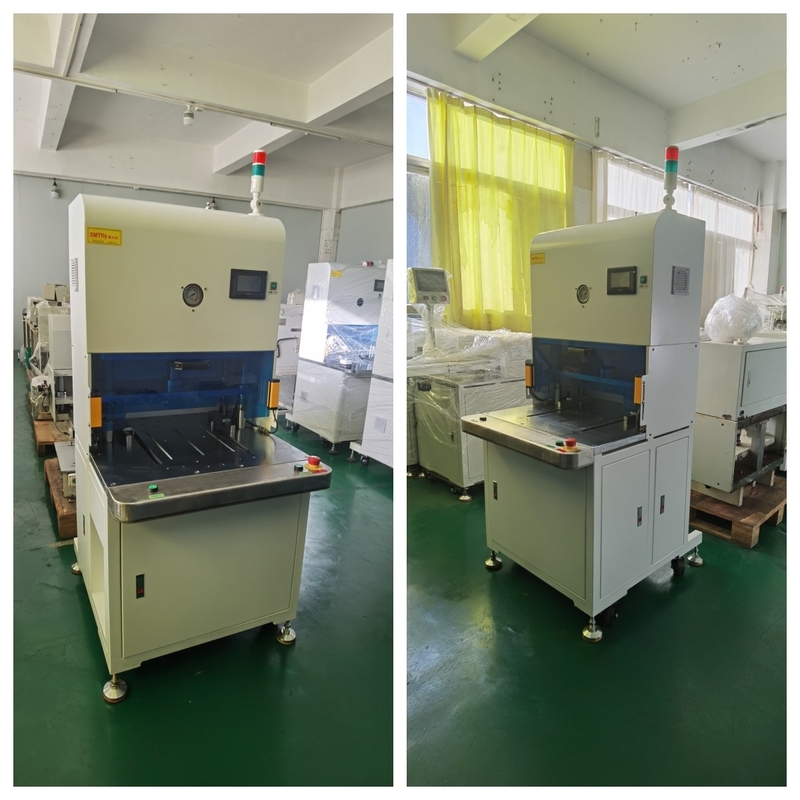

20 Stations PCB Punch Depaneling Machine Max. Punching Thickness 2.5mm

Product Description:

A PCB punching machine for FPC (Flexible Printed Circuit) is an essential piece of equipment used in the electronics industry, to separate individual FPCs from a larger panel or array of FPCs. It uses a punching mechanism to cut through the connecting material of the FPCs, which may be of a thin layer of polyester or polyimide film.

Programming this machine will allow it to make precision cutting on various sizes and shapes of FPCs. It is usually used for mass production, where manual punching takes too much time and labor.

Having a PCB punching machine for FPC presents several advantages over manual processes. The precision and speed of cutting is greater, minimizing the risk of damaged FPCs. It can also cut complex shapes, which may be difficult to do by hand. Furthermore, it eliminates any extra time and cost for tooling changes as it can easily be reprogrammed for different board sizes and forms.

In general, PCB punching machines for FPC are advantageous for the electronics industry. FPC separation is faster, more efficient, and more accurate.

Features:

• Product Name: PCB Punching Machine
• Contribute: 8t - 30t
• Repeatability Accuracy: ±0.05mm
• Max. Punching Speed: 1000pcs/min
• Max. Punching Force: 200KN
• Positioning Accuracy: ±0.1mm
• Keywords:PCB Punch Depaneling Machine, PCB Punching Machine Price, PCB Punching Machine Supplier

Technical Parameters:

Applications:

Chuangwei PCB Punch Depaneling Machine CWPL is an excellent choice for those who require fast and accurate PCB depaneling. This machine offers repeatability accuracy of ±0.05mm and maximum punching speed of 1000pcs/min. It has a maximum sheet size of 400mm*400mm and power supply of AC220V/11V,50HZ.

This PCB Punch Depaneling Machine has a brand name of Chuangwei and a model number of CWPL. It has passed the certification of CE and certificate of registration. The minimum order quantity is 1 Set. The price is negotiable and the delivery time is 3 days after payment. The payment terms include T/T, Paypal, West Union, and L/C. The supplier has the ability to produce 300 sets per month and it will be packaged in a plywooden case.

Chuangwei PCB Punch Depaneling Machine CWPL is a great choice for those who need reliable, accurate, and fast depaneling of PCBs. It is equipped with advanced features and is designed to be durable and easy to use. With its unbeatable performance and competitive price, it is sure to meet the needs of any PCB depaneling requirement.

Customization:

We are offering PCB Punching Machine with brand name of Chuangwei. The model number of this machine is CWPL and it is certified with CE and certificate of registration. The machine size is 1400mm*1000mm*1700mm and maximum sheet thickness is 1.5mm. The die of PCB Punching Machine is customize, and it is pneumatic type. The minimum order quantity is 1 set and the price is negotiable. The packaging details of PCB Punching Machine is plywooden case. The delivery time is 3 days after receive the payment. We accept payment terms like T/T, Paypal, West Union, and L/C. Our monthly supply ability is 300 sets.

PCB Punching Machine is also known as PCB Punch Depaneling Machine or PCB Depaneling Machine. It is highly demanded for its excellent performance and accuracy. Our PCB Punching Machine is highly efficient and reliable in operation. It is precisely designed and also easy to operate. You can get this PCB Punching Machine from us at a very nominal rate.

Packing and Shipping:

The PCB Punching Machine is packed in a cardboard box, foam lined for additional protection. The box is shrink-wrapped and affixed with the necessary shipping labels.

The PCB Punching Machine is shipped via a reliable courier service, such as UPS or FedEx. The package is insured for the full value of the product.
