Product Details:
Payment & Shipping Terms:
|
| Type: | Pneumatic | Power Supply: | AC220V/110V,50HZ |
|---|---|---|---|
| Machine Size: | 1400mm*1000mm*1700mm | Max. Punching Thickness: | 2.5mm |
| Max. Number Of Stations: | 20 | Max. Stroke: | 50mm |
| Min. Pitch: | 2.5mm | Max. Punching Diameter: | φ6.5mm |
| High Light: | SMT PCB Depaneling Equipment,PCB Depaneling Equipment AC220V,Pitch 2.5mm PCB Depaneling Equipment |
||

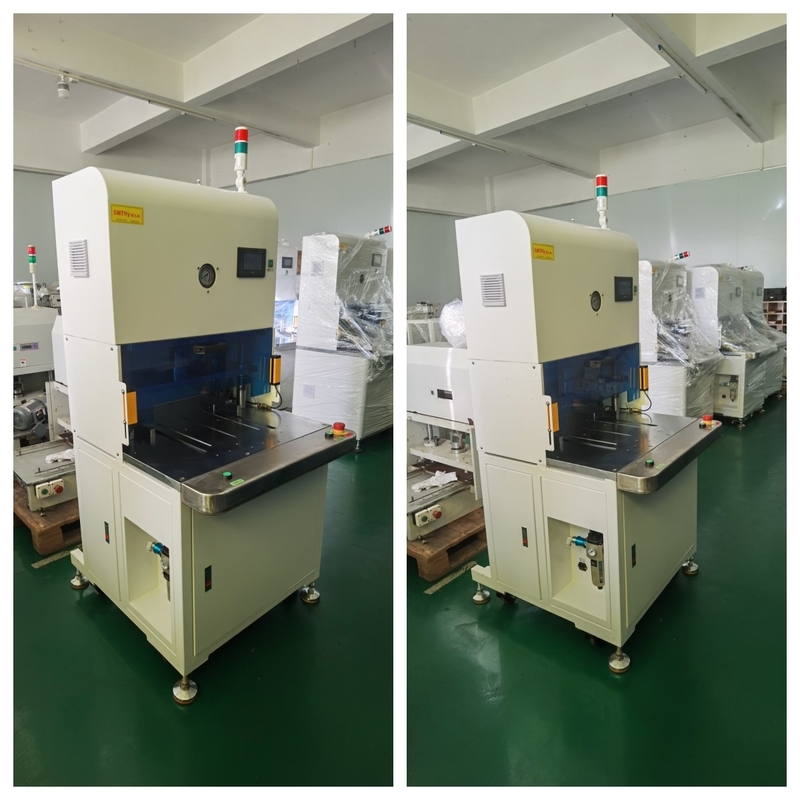

A PCB punching machine for FPC (Flexible Printed Circuit) is a specialized piece of equipment used in the electronics industry to separate individual FPCs from a larger panel or array of FPCs. Using a punching mechanism, the machine is capable of cutting through the thin layer of polyester or polyimide film that connects the individual FPCs.
This punching machine boasts a variety of advantages. First and foremost is its improved accuracy and speed compared to traditional punching methods. It is also able to produce complex shapes and patterns, something which manual punching is unable to achieve. Furthermore, tooling changes are no longer necessary, as the machine can be reprogrammed for different board sizes and shapes.
All in all, the PCB punching machine for FPC is an excellent tool to have in any electronics enterprise. It is capable of providing faster, more efficient, and precise FPC separation.
| Parameter | Value |
|---|---|
| Product Name | PCB Punching Machine |
| Type | Pneumatic |
| Contribute | 8t - 30t |
| Max. Punching Thickness | 2.5mm |
| Max. Sheet Thickness | 1.5mm |
| Max. Number of Stations | 20 |
| Max. Sheet Size | 400mm*400mm |
| Positioning Accuracy | ±0.1mm |
| Machine Size | 1400mm*1000mm*1700mm |
| Weight | 1300kg |
The PCB Punching Machine from Chuangwei with model number CWPL is an ideal solution for efficient and fast PCB depaneling. It is made in China and is certified with CE and Certificate of Registion. The minimum order quantity is 1 Set and the price is negotiable. It comes in a plywooden case and the delivery time is 3 days after receiving the payment. Payment terms are available such as T/T, Paypal, West Union, and L/C. The supply ability is 300 Sets/Month and the die can be customized. The positioning accuracy is ±0.1mm and the min pitch is 2.5mm. The contribute is 8t - 30t.
PCB Punching Machine from Chuangwei is your ideal choice for depaneling circuits and boards. With its customize die, maximum punching speed of 1000pcs/min and maximum punching force of 200KN, it is capable of dealing with PCBs with a maximum sheet thickness of 1.5mm. It has passed the CE and certificate of registration, with a minimum order quantity of 1 Set. The price is negotiable, and it is packaged in a plywooden case. Delivery time is 3 days after receive the payment, and we can supply up to 300 sets/month. Payment terms are T/T, Paypal, West Union, and L/C.
Packaging and Shipping for PCB Punching Machine:
The PCB Punching Machine will be carefully packaged in a cardboard box lined with foam, to ensure that it arrives in perfect condition. The package will include all necessary accessories and instructions for setup and maintenance. The package will be sealed with tape and shipped via a reliable courier with tracking information.
