Product Details:
Payment & Shipping Terms:
|
| Dimension: | 1250(1560)mm×800mm×1295mm | Blades Number: | Depend On PCB |
|---|---|---|---|

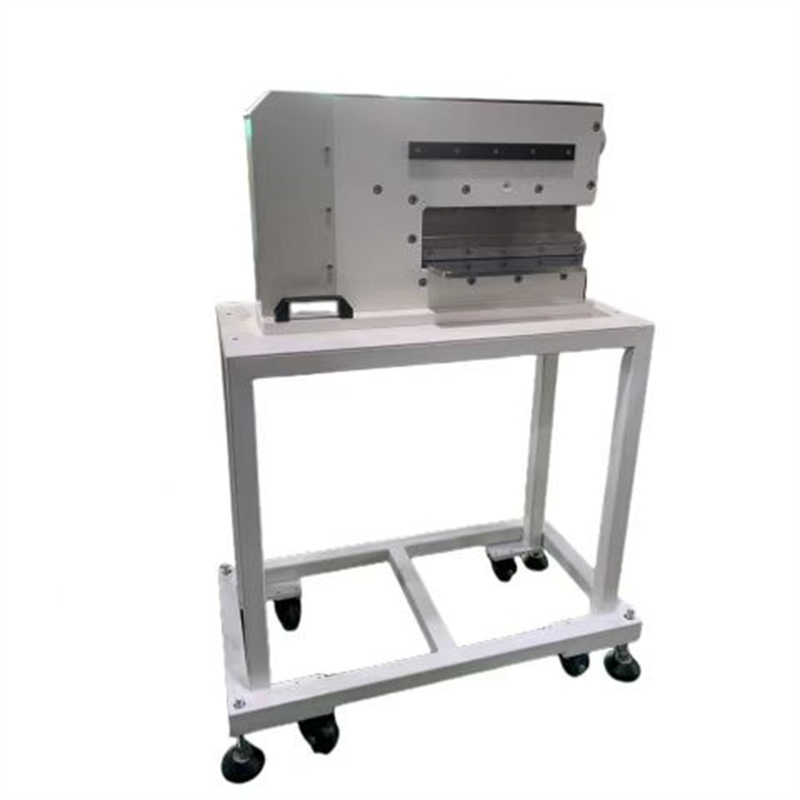

| Name: | V-Cut PCB Separator | Blade Dimension: | Linear Blade Or Circluar Blades |
| Air Pressure: | 0.5-0.8Mpa | PCB Width: | 300mm(could Be Customized) |
| Type: | Hay Cutter / Multi Cutter / V Cut PCB Separator | Blade Material: | High Speed Steel |
| High Light: | Hay Cutter PCB Separator,Customized Hay Cutter PCB Separator,Hay Cutter PCB Depaneling Machine |
||
This double direction depaneling machine has the capacity to perform horizontal and vertical depaneling on shape panels at one time, saving labor and increasing automation.
To further maximize efficiency, the machine is equipped with a touch screen, allowing for quick product changing. It has the capability to store up to 100 programs in PLC.
It is also able to perform single direction depaneling, and the set up parameters can be adjusted and wisely managed by the touch screen for higher intelligence. Moreover, the dust cleaner is optional.
| Name | V-Cut PCB Separator |
|---|---|
| Dimension | 1250(1560)mm×800mm×1295mm |
| Features | Blade Set Can Be Quickly Changed |
| Blades Number | Depend On PCB |
| Cutting Speed | 300-500/s |
| Power Supply | 220/110V,50HZ |
| Blade Material | High Speed Steel |
| Driven Mode | Stepping / Servo Motor(optional) |
| Blade dimension | Linear Blade Or Circluar Blades |
| V-cut Angel | >40° |
ChuangWei CWVC-5 V-Cut PCB Separator is a multi-blade PCB depaneling machine designed for inline PCBA de-paneling. It is certified with CE and has a minimum order quantity of 1Set. This machine is capable of cutting boards with a width of 300mm and its dimension is 1250(1560)mm×800mm×1295mm. It has a packaging weight of 300kgs and the power supply requirement is 220/110V,50HZ. The cutting speed of this machine is 300-500/s. Moreover, the price of this machine is negotiable and it is packed in wooden cases. It can be delivered within 8-15 days after payment and the supply ability is 30 sets/month. This machine is suitable for cutting and separating PCBs into multiple pieces with precise V-cuts. It is designed to offer high accuracy and quality performance.
Brand Name: ChuangWei
Model Number: CWVC-5
Place of Origin: China
Certification: CE
Minimum Order Quantity: 1Set
Price: Negotiable
Packaging Details: wooden case
Delivery Time: 8-15 days after payment
Supply Ability: 30sets/month
Blade Material: High Speed Steel
Driven Mode: Stepping / Servo Motor(optional)
Blades Number: Depend On PCB
Cutting Speed: 300-500/s
Machine Color: White
V-Cut PCB Separator is a Multi-blade PCB Depaneling Machine, Inline PCBA Automatic Depaneling Machine, Inline PCBA V-cut Depaneling Machine. It is powered by High Speed Steel blade and driven by either Stepping or Servo Motor. The number of blades depends on PCB. It cuts at speed of 300-500/s with a White color body. It is certified with CE and offered with minimum order quantity of 1Set. The price is Negotiable and it is packaged in wooden case with a delivery time of 8-15 days after payment. The supply ability is 30sets/month.
We provide technical support and service for our V-Cut PCB Separator. Our service includes:
If you have any technical questions or need assistance with the V-Cut PCB Separator, please do not hesitate to contact our technical support team.
The V-Cut PCB Separator is securely packaged and shipped in a cardboard box.
The box is designed to protect the product from any potential damages during transit.
The box is labeled with the product name and other relevant information.
The box is placed inside a larger cardboard box for extra protection.
All orders are shipped using a reliable courier service. Tracking information is provided to customers after shipment.
If you have any special requirements for the shipping, please contact us.
Contact Person: Mr. Alan
Tel: 86-13922521978
Fax: 86-769-82784046
