| Features: | Blade Set Can Be Quickly Changed. | Packaging Weight: | 300kgs |
|---|---|---|---|
| Blade Dimension: | Linear Blade Or Circluar Blades | PCB Width: | 300mm(could Be Customized) |
| Dimension: | 1250(1560)mm×800mm×1295mm | Driven Mode: | Stepping / Servo Motor(optional) |
| Blade Material: | High Speed Steel | Blades Number: | Depend On PCB |
| High Light: | Desktop Multi Cutter PCB Separator,CE Multi Cutter PCB Depanelizer,Multi Cutter PCB Depanelizer |
||

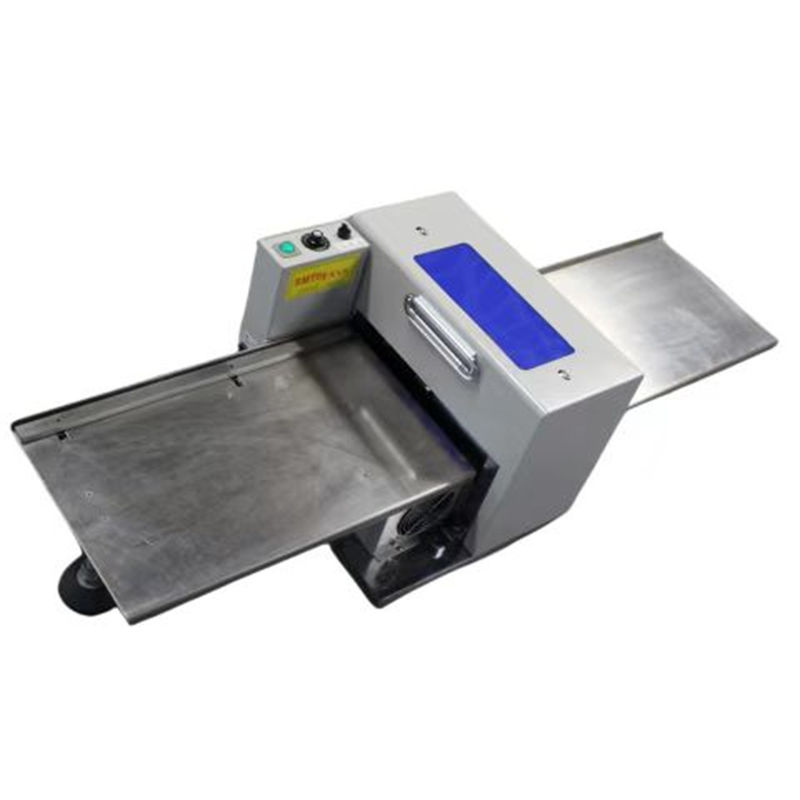

This is a double directions depaneling machine, suitable for both horizontal and vertical boards; it performs inline depaneling for shape panels at one time.
The high automation of the machine can connect to PCB loaders and unloaders, reducing the need of human labor. It also has a user-friendly touch screen operation that allows for quick product changing and PLC data storage capacity that can save up to 100 programs.
The machine is also capable of one direction of depaneling, allowing you to set horizontal and vertical depaneling through the touch screen, making the operation more intelligent. Furthermore, the depaneling machine also offers an option of a dust cleaner.
| Name | V-Cut PCB Separator |
|---|---|
| Blade Dimension | Linear Blade Or Circluar Blades |
| Machine Color | White |
| Blade Material | High Speed Steel |
| V-cut Angel | >40° |
| Cutting Speed | 300-500/s |
| Dimension | 1250(1560)mm×800mm×1295mm |
| PCB Width | 300mm(could Be Customized) |
| Type | Hay Cutter / Multi Cutter / V Cut PCB Separator |
| Packaging Weight | 300kgs |
ChuangWei CWVC-5 Inline PCBA V-cut Depaneling Machine is a hay cutter/multi cutter/V-cut PCB separator with CE Certification and is made in China. It features a blade set that can be quickly changed, and it is able to handle PCB widths up to 300mm (customizable). Its power supply is 220/110V, 50HZ. It is available for purchase in a minimum order quantity of 1 set, and it has a white color. The price is negotiable, and it will be shipped in a wooden case. Delivery time is 8-15 days after payment, and it has a supply ability of 30sets/month.
The ChuangWei CWVC-5 Inline PCBA V-cut Depaneling Machine is specifically designed to depanel printed circuit boards (PCB) with v-cut grooves. It is an effective solution for quickly and accurately separating PCB boards. It is suitable for a wide range of PCB materials and can be used in high-volume production runs. It is also ideal for automotive, aerospace, telecommunications, medical, and consumer electronics industries.
The ChuangWei CWVC-5 Inline PCBA V-cut Depaneling Machine is an efficient and reliable PCB separator that provides fast, accurate, and safe depaneling of PCBs with v-cut grooves. It features a high-precision, heavy-duty frame with a precise V-cut blade that can be quickly and easily changed. It has a powerful motor and a digital display for easy operation and maintenance. It is a cost-effective option for a wide range of PCB depaneling applications.
ChuangWei CWVC-5 V-Cut PCB Separator is a type of inline V Cut PCB Separator, Multi-blade PCB Depaneling Machine that is equipped with Multi-blade PCB Depaneling Machine and Automatic V Cut PCB Separator. It is designed to meet the requirements of the modern PCB depaneling industry. It is CE certified and has a minimum order quantity of 1Set. The price is negotiable and is delivered in wooden case within 8-15 days after payment. The supply ability is 30sets/month. Each set of V-Cut PCB Separator is equipped with air pressure of 0.5-0.8Mpa, blades number that depends on the PCB, and linear blade or circular blades.
We provide technical support and services for our V-Cut PCB Separator. Our team of experienced professionals are available to assist you with your product-related inquiries. We can provide:
We also provide a comprehensive warranty to ensure that your V-Cut PCB Separator is working properly and safely. If you have any questions or inquiries, please feel free to contact us.
V-Cut PCB Separator Packaging and Shipping:
The V-Cut PCB Separator is packaged in a box made of cardboard and protected with foam inserts to ensure the product is not damaged during transit. The box is then sealed with tape to prevent the product from being opened during transit. The box is then placed in a larger cardboard box and shipped via a reliable shipping service to ensure the product reaches its destination in a timely and safe manner.
