Product Details:
Payment & Shipping Terms:
|
| Extraordinary Cut Quality Holding Tolerances: | As Small As 50 Microns | Cutting Accuracy: | High Accuracy,± 25 μm (1 Mil) |
|---|---|---|---|
| Name: | Laser Depaneling Machine | Laser Wavelength: | 355nm |
| Cutting Edge: | Smooth Edge | Laser: | Optowave |
| Cutting Depth: | High Depth | Laser Scanning Speed: | 2500mm/s Max High Speed |
| High Light: | Software Controlled Laser Depaneling Machine,Accuracy 25 um Laser Depaneling Machine,355nm Laser PCB Depaneling Machine |
||

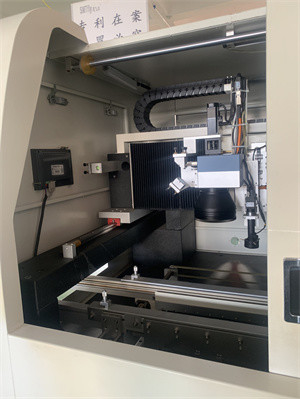

This Laser Depaneling Machine is a professional pcb depaneling equipment, pcb separator machine and pcb cutter machine. It is designed for cutting pcbs and other rigid or flexible materials. It is suitable for cutting max. working area 300x300x11mm and 400mmX300mm(customizable). It adopts 220V 380V voltage and software controlled system which is easy to operate. It offers smooth cutting edge which make the product more professional.
| Name | Laser Depaneling Machine |
|---|---|
| Laser Power | 10W / 12W / 15W / 18W 30KHz |
| Extraordinary cut quality holding tolerances | As Small As 50 Microns |
| Cutting Depth | High Depth |
| Max. working area (X x Y x Z) | 300x300x11 Mm, 400mmX300mm(Customizable) |
| Laser Wavelength | 355nm |
| Safety Protection | High Safety Protection |
| Control System | Software Controlled |
| Cutting Edge | Smooth Edge |
| Voltage | 220V 380V |
The Chuangwei Laser Depaneling Machine is an advanced PCB depaneling machine with CE Certificate and comes with a minimum order quantity of 1 set. It can be used in a friendly environment and can function as a depaneling FR4/FPC. This machine offers great accuracy with a cutting accuracy of ± 25 μm (1 Mil) and can even hold tolerances as small as 50 Microns, making it an ideal PCB board cutting machine. With a delivery time of 10 days, it offers a great supply ability with 260 sets per month and is available at a negotiable price. All in all, this pcb depanelizer from Chuangwei provides an excellent cut finish and auto vision positioning, making it an ideal pcb depaneling machine.
Brand Name: Chuangwei
Place of Origin: China
Certification: CE Certificate
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: each set be packed in plywood case
Delivery Time: 10 days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 260 sets per month
Laser Power: 10W / 12W / 15W / 18W 30KHz
Cutting Area: Large Area
Extraordinary cut quality holding tolerances: As Small As 50 Microns
Control System: Software Controlled
Voltage: 220V 380V
Chuangwei laser depaneling machine is a perfect pcb board cutting machine for your pcb depaneling equipment. This online or offline PCB laser depaneling machine is equipped with 10W / 12W / 15W / 18W 30KHz laser power, large cutting area, extraordinary cut quality holding tolerances as small as 50 microns. The control system is software controlled and the voltage is 220V 380V.
The Laser Depaneling Machine is packaged and shipped securely to ensure it arrives in perfect condition.
The packaging for the Laser Depaneling Machine includes:
The Laser Depaneling Machine is shipped with a reliable carrier that offers tracking services, ensuring that your order can be tracked every step of the way.
