Product Details:
Payment & Shipping Terms:
|
| Dust Filtration System: | 3KW Vacuum Cleaner | Editing Function: | Dry Run Vision Assisted / Test Run Mode |
|---|---|---|---|
| Warranty: | One Year | Board Positioning: | Dual Workstation With Nest Fixture Or Pin Fixture |
| Power: | 220V, 4.2KW | PCB Material: | FR1, FR4, MCPCB,etc. |
| Panel Thickness: | 0.5-3.5mm | Name: | PCB Router Machine/PCB Routing Equipment |
| High Light: | Manual PCB Router Machine,FR1 PCB Router Machine,0.01mm Resolution Router Cutting Machine |
||

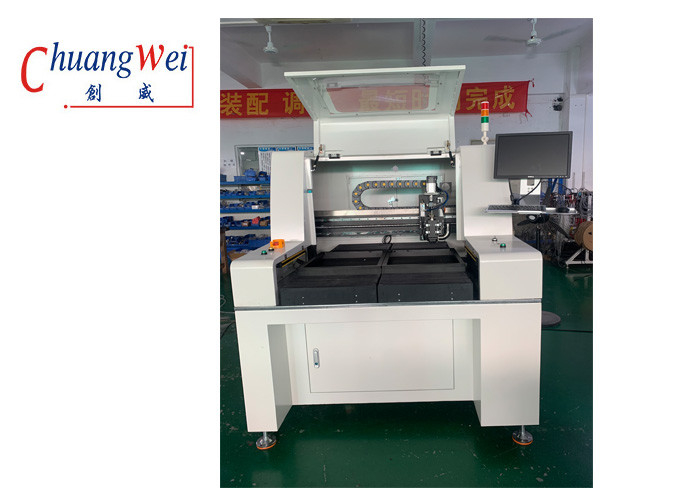

PCB Router Machine is a reliable and high-performing PCB Depaneling Router specially designed for PCB depaneling application. It is capable of cutting and routing PCB board without causing any damage to the components. Its 220V power supply and 4.2KW power ensure efficient operation and high productivity. Its panel thickness ranges from 0.5mm to 3.5mm, and its routing bit sizes range from 0.8mm to 2.0mm. With a standard working area of 320*320mm and 450*350mm, it is suitable for various PCB depaneling applications. It also features a high resolution CCD video camera to ensure precise and accurate machining. As a reliable and high-performance PCB depaneling router, it is widely used in the PCB industry for its excellent cutting and routing capabilities.
PCB Router Machine is an ideal choice for PCB depaneling, cnc routing and PCB router depaneling equipment. Its powerful motor and high accuracy CCD vision system make it the perfect choice for various PCB depaneling applications. It is capable of providing fast, efficient and accurate machining with minimum damage to the components. Moreover, its adjustable routing bit size, panel thickness, and working area make it suitable for all kinds of PCB depaneling requirements. Therefore, it is the perfect choice for any PCB depaneling application.
| Technical Parameter | Value |
|---|---|
| Spindle motor | KAVO Spindle |
| Panel Location | Located By Tooling Holes Or Edges Of PCB |
| Tool Change | Manual |
| Editing Function | Dry Run Vision Assisted / Test Run Mode |
| Working Table | 2 |
| Name | PCB Router Machine/PCB Routing Equipment |
| Vision system | High Resolution CCD Video Camera |
| Routing Bit | 0.8/1.2/1.5/1.8/2.0mm |
| Machine weight | 500kgs |
| Machine dimension | 113*140*108cm |
Chuangwei's stand-alone CNC PCB Router Machine is a depaneling equipment designed for PCB routing, which is used to separate the parts of the printed circuit board (PCB). With its CE and ISO certification, the machine is of high reliability and accuracy. It is available with minimum order quantity of 1 set at a negotiable price, and can be shipped within 7 days after payment confirmation. The packing is done with a plywood case. It supports T/T, L/C and Paypal payment terms. The available routing bits are 0.8mm, 1.2mm, 1.5mm, 1.8mm and 2.0mm, and the board positioning can be done with dual workstation with nest fixture or pin fixture. The machine dimension measures 113*140*108cm, and the standard working area is 320*320mm, 450*350mm, etc. The product comes with a one-year warranty, and the supply ability is up to 100 sets per month.
Chuangwei offers PCB Router Machine with customized service. Our PCB router machine comes with Windows 7 system, high resolution CCD camera system, and automatic router machine with CE/ISO certification. It is perfect for PCB depaneling and routing with dry run vision assisted / test run mode. It features 220V, 4.2KW, and 500kgs machine weight. The standard working area is 320*320mm, 450*350mm, etc.
Brand Name: Chuangwei
Place of Origin: Dongguan
Certification: CE ISO
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: plywood case
Delivery Time: 7 days after payment confirm
Payment Terms: T/T, L/C,paypal
Supply Ability: 100 Sets/Month
Editing Function: Dry Run Vision Assisted / Test Run Mode
Power: 220V, 4.2KW
Standard working area: 320*320mm,450*350mm,etc.
Vision system: High Resolution CCD Video Camera
Machine weight: 500kgs
Technical Support:
Service:
PCB Router Machine Packaging and Shipping
The PCB Router Machine will be securely packaged and shipped with the following procedure:
A: PCB Router Machine is a type of machine used to route printed circuit boards (PCB's). It is capable of cutting and drilling the layers of copper and other materials used in the manufacturing of PCBs.
A: The Brand Name for PCB Router Machine is Chuangwei.
A: The Place of Origin for PCB Router Machine is Dongguan.
A: The Certification for PCB Router Machine is CE ISO.
A: The Minimum Order Quantity for PCB Router Machine is 1 Set.
