Product Details:
Payment & Shipping Terms:
|
| PCB Shape: | Jointed Connection | Advantage: | Low Price |
|---|---|---|---|
| PCB Separator: | PCB Separator | Action Stroke Times: | 12 Times / Min |
| Working Dry Air Pressure: | 0.50-0.70 Mpa | PCB Nibbler Machine Weight: | 2 Kg |
| High Light: | PCB depaneling,PCB Cutting Shear |
||
Sheet Metal Hand Printed Circuit Board PCB Nibbler Machine for Joints Connected Boards Specifications:
| Action stroke times | 12 times / min |
| Working dry air pressure | 0.50-0.70 Mpa |
| Slide stroke | 2 mm |
| PCB Nibbler Machine Weight | 2 kg |
| PCB Nibbler Machine Size | 280x105x185mm |
Printed Circuit Board Nibbler Machine Features:
1, all pneumatic control, easy to operate
2, suitable for slitting various PCB connection points
3, hook blade work, hook blade shape can be customized
4, convenience for replacing hook blade
5, hook blade for "T" type or "L" type blade
6, small size, does not damage the part of the PCB and PCB substrate
Safe operation with PCB Separator CWV-LT

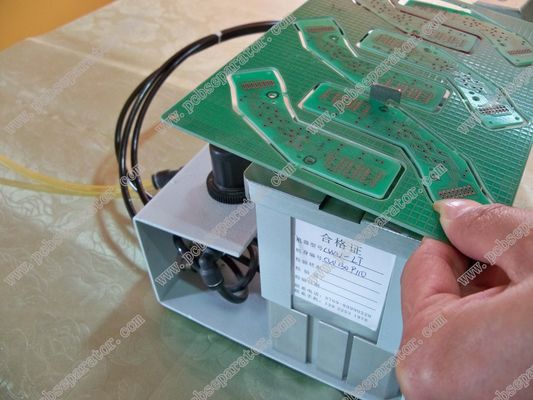

The PCB is slipped with its milled groove over the blade and is placed onto the matrix. The off-cut is pulled under the blade. When the foot switch is pressed, the off-cut is punched out and the waste material is collected inside the machine.
Applications:
