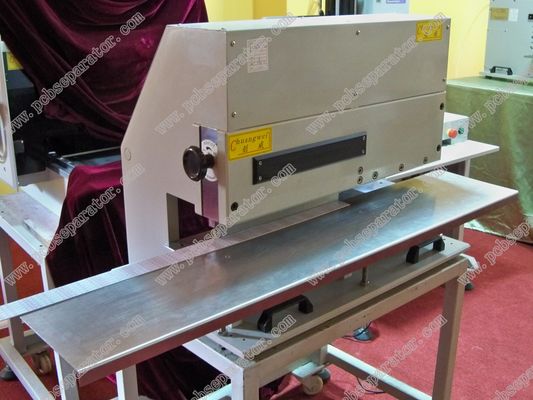

Pneumatic Guillotine PCB assembly equipment No Limit Cutting Capactity

Pneumatic Guillotine PCB assembly equipment No Limit Cutting Capactity
Pneumatic Guillotine PCB assembly equipment No Limit Cutting Capactity

Large Image :  Pneumatic Guillotine PCB assembly equipment No Limit Cutting Capactity

Product Details:

Place of Origin: China
Brand Name: Chuangwei
Model Number: CWVC-3

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: plywooden case
Delivery Time: 3 days after payment receipt
Payment Terms: T/T L/C paypal west union credit card, Paypal
Supply Ability: 300 sets/ month
Detailed Product Description
Certification: CE Color: White
Function: Cutting All FR4 & Aluminium Boards Driving: Penumatic
Adavantage: No Stress Delivery: 1-3 Days
PCB Depanelizer: PCB Depanelizer
High Light:

V-CUT scoring machine

,

PCB Cutting Machine



Pneumatic Guillotine PCB assembly equipment No Limit Cutting Capactity





Aluminium PCB depanelizer mahine
board :PCB/FR4/FR2/CEM-1
Thickness:0.5-3.5mm
Blade length:330mm

PCB cutting length: unlimited
Working table(platform):could be customized


Detailed Product Description:



pcb separater equipment for export
1.lead time:3days
2.separate length:unlimited 3.separate thickness:1.0-3.5mm

3.Blades are made of Japanese steel: durable





PCB  Depaneling Router Machine Specification:



Model

CWVC-3

Max PCB Length

No limit

Size

780*500*620mm

Thickness

0.3-3.5mm

Weight

185kgs

Air Pressure

0.6-0.8Mpa





Aluminium PCB depanelizer mahine Features :



Penumatic Depanelizer CWVC-3
1.Cut any length metal board  more safety and easily.

2.Separates long boards directly,without turn direction

3.Separates boards up to 2.0mm  thick  Metal Board

4.Shears boards safely with parts as close as 1 mm to the score line,including ceramic capacitors

5.Operator foolproof! Panels cannot be inserted into the knives except on the score line

6.Handles high components up to50mm

7.Bow waves that can occur with round knives are avoided

8.Easy adjusting of distance between knives

The longest Minimize: unlimited



Replacement of upper blade:

1. Loosen 5 screws of upper blade

Pneumatic Guillotine PCB assembly equipment No Limit Cutting Capactity 0



2.Remove the meatal piece and blade, then replace a new one

Pneumatic Guillotine PCB assembly equipment No Limit Cutting Capactity 1



Replacement of lower blade:

1.Loosen 5 screws

Pneumatic Guillotine PCB assembly equipment No Limit Cutting Capactity 2



2.Remove metal piece and replace a new blade

Pneumatic Guillotine PCB assembly equipment No Limit Cutting Capactity 3
