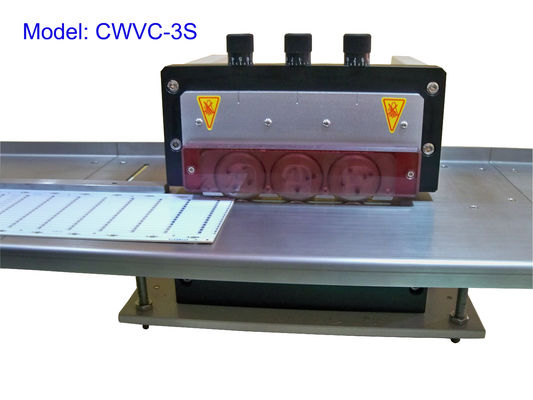

LED Strip PCB Separator Machine,PCB Depanelizer

LED Strip PCB Separator Machine,PCB Depanelizer
LED Strip PCB Separator Machine,PCB Depanelizer LED Strip PCB Separator Machine,PCB Depanelizer LED Strip PCB Separator Machine,PCB Depanelizer LED Strip PCB Separator Machine,PCB Depanelizer

Large Image :  LED Strip PCB Separator Machine,PCB Depanelizer

Product Details:

Place of Origin: Dongguan
Brand Name: Chuangwei
Certification: CE
Model Number: CWVC-3S

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wooden case
Delivery Time: 3-5 days
Payment Terms: T/Tbefore delivery
Supply Ability: 100/week
Detailed Product Description
Color: White Cutting Capacity: No Limit
Blades: 3 Sets Driving: Motor
PCB Thickness: 0.8-3.5mm Voltage: 220VAC
High Light:

pcb assembly machine

,

metal cutter machine

LED PCB Separator Machine with No Limited Cutting CapactitySpecifications



1. V-cut PCB Electrostatic Separator
2. PCB 0.8 to 3.5mm
3. Long platform should be customized
4. PCB length unlimited
5. cut speed 0 to 400mm/s



Max PCB length no limit
PCB Thickness 0.8 to 3.5 mm
Working Speed0 0 to 400mm/s
Voltage 220VAC
House color white
Machine Weight 40kg



Features:



1.Three pairs of precision beveled cutting blades can ensure the board does not bend, or deform

2.Guide can be adjusted vertically to suit differenct LED boards

3.Depth between upper circular blades can be precisely adjusted to reduce stress on score-line edge and blade wear

4.Blades are motor driven (110 or 220 volt)

5.Upper and lower circular blades can be resharpened

6.2.4M stainless steel platform is standard; optional lengths avaiable


Applications:



LED Strip PCB Separator Machine,PCB Depanelizer 0



Replacement of blades:

1.Loosen screws of shell

LED Strip PCB Separator Machine,PCB Depanelizer 1



2.Remove the plastic shell as following picture

LED Strip PCB Separator Machine,PCB Depanelizer 2



3.Loosen 4 screws of blade

LED Strip PCB Separator Machine,PCB Depanelizer 3



4.Remove the metal plate as followings:

LED Strip PCB Separator Machine,PCB Depanelizer 4



5.Remove the old blade and replace a new one

LED Strip PCB Separator Machine,PCB Depanelizer 5



More informations welcome to contact us:



Email/Skype: s5@smtfly.com

Mobile/Wechat/WhatsApp: +86-136-8490-4990
