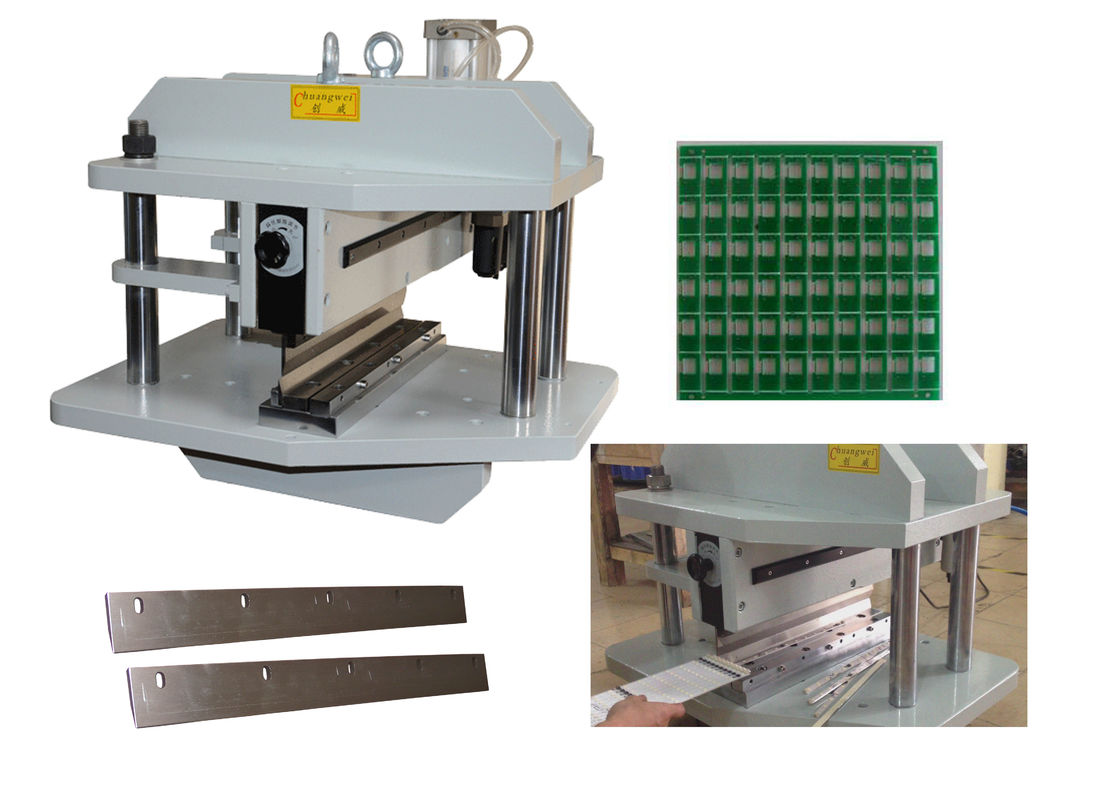

Customized PCB Depanelizer V-cut PCB Separator Machine Working Table

Customized PCB Depanelizer V-cut PCB Separator Machine Working Table
Customized PCB Depanelizer V-cut PCB Separator Machine Working Table

Large Image :  Customized PCB Depanelizer V-cut PCB Separator Machine Working Table

Product Details:

Place of Origin: Dongguan City, Guangdong province, China
Brand Name: ChuangWei
Certification: CE, RUV Rheinland (China), GMC(GlobalMarket),ISO9001-2000
Model Number: CWVC-450

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: seaworthy plywood case,safe, no need to fumigated
Delivery Time: within 7 days after payment receipt
Payment Terms: T/T ,L/C
Supply Ability: 1000sets/year
Detailed Product Description
Material: PCB,Copper PCB,Aluminium PCB Blade Type: Linear Blades
Product Name: PCB Depanelization Machine Drive: Pneumatically
Application: Board,Printed Circuit Board Blade Type: Linear Blades
Feature: Customized Product Name: PCB Depanelization Machine
Application: Board,Printed Circuit Board Feature: Customized
High Light:

PCB depanelization machine

,

V-CUT scoring machine

Customized PCB Depanelizer V-cut PCB Separator Machine Working Table







1.Nice for separating v cut metal board,Aluminium PCB,LED strip,Copper PCB etc.
2.Separate rigid and thick board fluently.
3.Use pneumatic-driven and electromagnetic valve to operate.

4.Durable blades are made of Japanese steel

5.Perfect cutting for hard pcbs



Details:



1.Place of Origin: Guangdong, China (Mainland)

2.Brand Name: ChuangWei

3.Model Number: CWVC-450 **PCB separator

4.Max. PCB separating length: unlimted

5.PCB separating thickness: 0.3-3.5mm

6.PCB separating speed: due to operator skilled level

7.PCB separator size: 900*760*750mm

8.PCB separator weight: 475kg



Features:

1.New style rigid machine structure design,separate any length rigid and thick metal board more safely and easily.
2.Separate long boards directly,without turning PCB direction.
3.Separating process without vibrations due to pneumatic drive unit.
4.Separating PCB without bending and tension stress.
5.PCB control operation is that operator stamps the foot pedal to separate PCB.
6.Highest components near the v groove of PCB can be up to 50mm.
7.Gap for insertion of PCB can be easy to adjust.



Motorized Linear Blade Depanelizer:


1.Cut any length metal board  more safety and easily.
2.Separates long boards directly,without turn direction .
3.Separates boards up to 2.0mm  thick  Metal Board
4.Shears boards safely with parts as close as 1 mm to the
  score line,including ceramic capacitors
5.Operator foolproof! Panels cannot be inserted into the
  knives except on the score line
6.Handles high components up to50mm
7.Bow waves that can occur with round knives are avoided
8.Easy adjusting of distance between knives



Our advantage:


1.CWVC-450 Pcb depanelizer original manufacturers, price concessions
2.Day technical support services
3.Limit the handling of complaints, half an hour back to customers
4.Depanel Experts, the provision of professional PCB  sub-programme



Specifications:



Model CWVC-450
Linear Blades length 450mm(Can custom made)
Material of blades high speed steel
Max.PCB separating length unlimted
PCB separating thickness 0.3-3.5mm
Voltage and Power 110V/220V  -- 10W
Working air pressure 0.5-0.7Mpa
PCB separating speed due to operator skilled level
PCB separator machine size 900*760*750
PCB separator machine weight 475kg




This model use two horizontal knives to separate without stress and will not damage parts as close as 0.5mm from the score line and the operator cannot misfeed the board.
