| Power Supply: | 220/110V | Function: | Automatic |
|---|---|---|---|
| PCB Material: | FR4, CEM, Aluminium, FPC | Cycle Time: | 7S |
| Name: | Punching Machine | ||
| High Light: | pcb assembly machine,metal cutter machine |
||

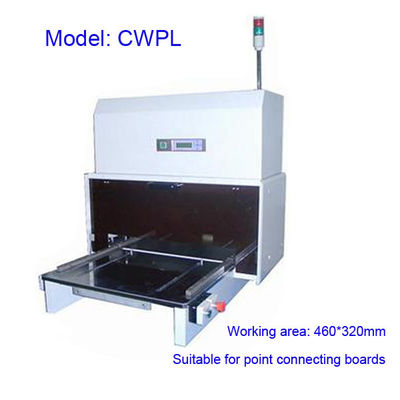

Flexible / Rigid PCB FPC Punching Machine for SMT Assembly Optional Customized or Standard:
1. Apply to cut Rigid pcb,Flexible pcb(FPC),Rigid-Flex pcb
2. Use punching die to cut with efficiency
3.Can replace multiple mold for production and mold changing easily
4.The operation is simple and safe
5. Moveable lower die for easy loading and unloadingPCB punch die| FPC die| PCB punch mold| FPC mould
Features:
1.Machine has strong structure and moves easily with 4 Casters.
2.can replace a variety of mold, and mold changing easily.
3.the lower mold automatic in and out, easy to pick and place products, finished products can fall into the drawer.
4.make internal stress generated by PCB cutting to minimize and avoid tin stress cracking.
5.punching cutting semi-finished PCB with high efficiency.
6.mould and die can be made according to customer's request.
Pictures of punching:
Specifications:
| Model | CWPL |
| Punch Contribute(T) | 8(should be customized) |
| Working Area(mm) | 460*320(should be customized) |
| Working Air Pressure(Mpa) | 0.5-0.7 |
| Dimension(mm) | 930*880*1230 |
| Weight(kg) | 680 |
Our Advantage:
1. Engineers available to service machinery oversea
2. Mature technique & forerunner to process makes high quality machinery
3. Effective customer service
4. One year warranty for the machines except accessories
