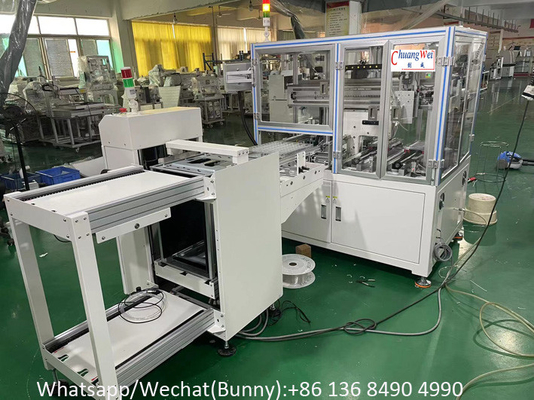

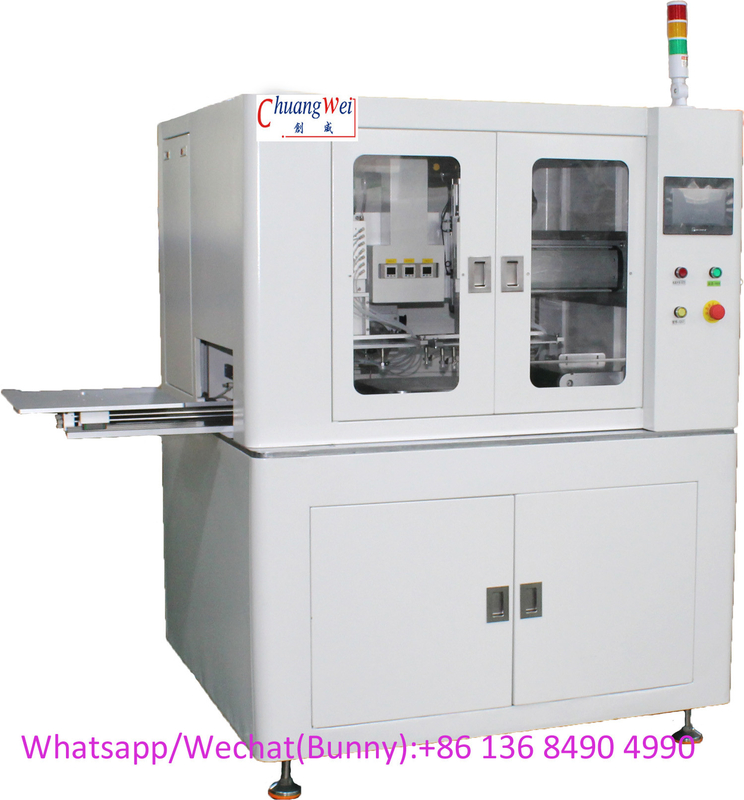

Fully Automatic V Cut PCB Depaneling Equipment,Inline PCBA Cutter Depaneler Machine

Fully Automatic Online PCB V-Cut Depanelizer Equipment,Inline PCBA Cutter Machine Features:



※ Workable for "#" shape depaneling.1. Length of sub-board: 200mm in Y direction, 300mm in X direction;
Evaluation sample capacity: 3000/hour, defective rate 1‰;
Full pneumatic control, no noise;
The stroke is small, it is not easy to damage the product and the operation is complete;
Cut-out work, suitable for PCB of various thicknesses;
Minimize the internal stress generated when cutting the board to avoid tin cracks;
The distance between the upper and lower knives can be adjusted precisely, which avoids the loss of the knives due to the different depths of the V-groove.Automatic sub-board in both horizontal and vertical directions, which solves the need for a lot of well-shaped PCB processes that require secondary sub-boards.
Problems such as slow operation.
High degree of automation, can be connected to other equipment before and after, unmanned operation, saving labor
It can quickly replace PCB products of different sizes, and it only takes 5 minutes to replace the product, and the PLC data storage can reach 100 groups
The device can be set as a unidirectional sub-board, one machine is multi-purpose, and it is more intelligent.



Blade dimension	Linear Blade: 356×43.5×6mm
PCB width	300mm(could be customized)
Driven mode	Stepping / Servo motor(optional)
V-cut angel	>40°
Cutting speed	300-500/s
Blade material	High speed steel
Air pressure	0.5-0.8Mpa
Voltage	220/110V
Dimension	1250(1560)mm×800mm×1295mm
Packaging weight	300kgs



Fully Automatic Online PCB V-Cut Depanelizer Equipment,Inline PCBA Cutter Machine​ Description:
