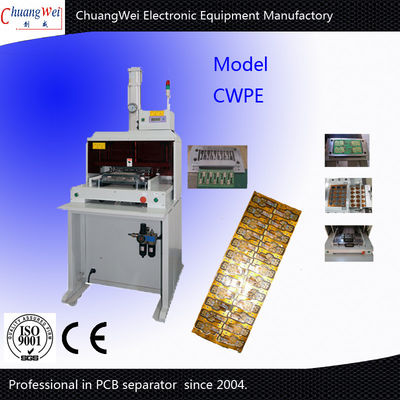

3-30T Punching Force FPC/PCB Punching with 0.5-0.7Mpa Working Air Pressure

3-30T Punching Force FPC/PCB Punching with 0.5-0.7Mpa Working Air Pressure
3-30T Punching Force FPC/PCB Punching with 0.5-0.7Mpa Working Air Pressure

Large Image :  3-30T Punching Force FPC/PCB Punching with 0.5-0.7Mpa Working Air Pressure

Product Details:

Place of Origin: Dongguan City,Guangdong Province,China
Brand Name: Chuangwei
Certification: CE, RUV Rheinland (China), GMC(GlobalMarket),ISO9001-2000
Model Number: CWPE

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: seaworthy plywood case,safe, no need to fumigated
Delivery Time: within 7 days after receipt the payment.
Payment Terms: T/T ,L/C
Supply Ability: 1200 sets/year
Detailed Product Description
Punching Force: 3-30T Die: Customize
Working Area: 330*220mm Air Pressure: 0.5-0.7Mpa
Type: Pneumatic Power: 110/220V
High Light:

pcb punching machine

,

pcb depaneling machine

3-30T Punching Force FPC/PCB Punching with 0.5-0.7Mpa Working Air Pressure​
The most professional FPC/PCB singulation  machine manufacturers in China.



FPC/PCB singulation machine features:



1. Machine has strong structure and moves easily with 4 Casters.
2. can replace a variety of mold, and mold changing easily.
3. the lower mold automatic in and out, easy to pick and place products, finished products can fall into the drawer.
4. make internal stress generated by PCB singulating to minimize and avoid tin stress cracking.
5. punching singulation semi-finished PCB with high efficiency.
6. mould and die can be made according to customer's requests.


fpc/pcb singulation machine:


1, Apply to singulate Rigid pcb,Flexible pcb(FPC),Rigid-Flexible pcb
2, Use punching mould to singulation with more high efficiency
3. Can replace multiple mold for production and mold changing easily
4. The operation is simple and safe


fpc/pcb singulation machine specifications:



Model CWPE
Punch Standard tonnage (Tons) 3 (can custom made up to 30T)
Working area (mm) 330*220 (can custom made)
Voltage(V) 110/220
Working air pressure(Mpa) 0.5-0.7
fpc/pcb singulation machine size (mm) 730*810*1700
fpc/pcb singulation machine weight (kg)      530




























Our best service



1.Engineers available to service machinery oversea.

Engineers are available to be sent to freign countries to do machinery training and offer technical support.


2.Mature technique & forerunner to process makes high quality machinery.


As largest manufactory in South China, we have 12 years experience on PCB separator machines and soldering machines. pcb router machine


Our R&D team continuously upgrade the existing machines to meet the market development trend.


3.Effective customer service. pcb router machine


All of us together are stronger and wiser than any one of us individually. To succeed, we must assume responsibility, cooperate with fellow associates and withdepartments, effectively comminicate with one another, foster enthusiam and participate in decision-making. To be seay reachable by customers and provide prompt replies to solve their problems and create value for customers.


4.One year warranty for the machines except accessories. b router machine


Robust frame construction and Japanese steel blades obtained good appraise and recognized by and oversea clients. We offer parts for replacement under warranty free of charge, clients only need to bear freight charge.


Our mission:


Ongoing PCB industry PCB separator technological innovation, to create greater value, allowing customers to success


Our Vision:


PCB industry to become the world's leading solution providers PCB separator. pcb router machine






Production flow



3-30T Punching Force FPC/PCB Punching with 0.5-0.7Mpa Working Air Pressure 0
