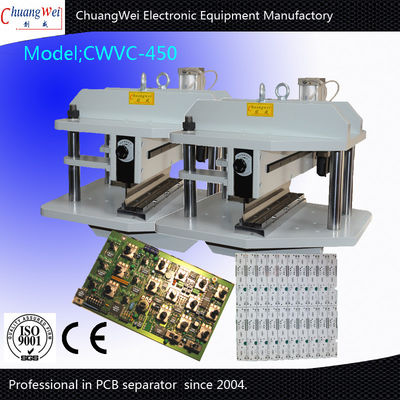

PCB Separator with 2 Linear Blades for 0.3-3.5mm PCB Aluminium

PCB Separator with 2 Linear Blades for 0.3-3.5mm PCB Aluminium
PCB Separator with 2 Linear Blades for 0.3-3.5mm PCB Aluminium PCB Separator with 2 Linear Blades for 0.3-3.5mm PCB Aluminium PCB Separator with 2 Linear Blades for 0.3-3.5mm PCB Aluminium

Large Image :  PCB Separator with 2 Linear Blades for 0.3-3.5mm PCB Aluminium

Product Details:

Place of Origin: Dongguan City, Guangdong province, China
Brand Name: Chuangwei
Model Number: CWVC-450

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: seaworthy plywood case,safe, no need to fumigated
Delivery Time: within 7 days after receipt the payment.
Payment Terms: T/T ,L/C
Supply Ability: 1000 sets/year
Detailed Product Description
Certification: CE ISO Blade: Linear
Cutting Thickness: 0.3-3.5mm Cutting Speed: Due To Operator Skill Level
Warranty: One Year Type: Pneumatic
High Light:

PCB depaneling

,

PCB separators



PCB Separator with 2 Linear Blades for 0.3-3.5mm PCB Aluminium Features:


1. New style rigid machine structure design,shear any length rigid and thick metal board more safely and easily.
2. Shear long boards directly,without turning PCB direction.
3. Shear process without vibrations due to pneumatic drive unit.
4. Shearing PCB without bending and tension stress.
5. PCB control operation is that operator stamps the foot pedal to shear PCB.
6. Highest components near the v groove of PCB can be up to 50mm.
7. Gap for insertion of PCB can be easy to adjust.


V-CUT PCB Separator Machine:


1. Nice for shearing v cut metal board,Aluminium PCB,LED strip,Copper PCB etc.
2. Shear rigid and thick board fluently.
3. Use pneumatic-driven and electromagnetic valve to operate.


V-CUT PCB Separator Machine Specifications:



Model CWVC-450
Linear Blades length 450mm(Can custom made)
Material of blades high speed steel
Max.PCB shearing length unlimted
PCB shearing thickness 0.3-3.5mm
Voltage and Power 110V/220V  -- 10W
Working air pressure 0.5-0.7Mpa
PCB shearing speed due to operator skilled level
PCB  shearing machine size 900*760*750
PCB  shearing machine weight 475kg


Our service



1.Engineers available to service machinery oversea.

Engineers are available to be sent to freign countries to do machinery training and offer technical support.


2.Mature technique & forerunner to process makes high quality machinery.


As largest manufactory in South China, we have 12 years experience on PCB separator machines and soldering machines. pcb router machine


Our R&D team continuously upgrade the existing machines to meet the market development trend.


3.Effective customer service. pcb router machine


All of us together are stronger and wiser than any one of us individually. To succeed, we must assume responsibility, cooperate with fellow associates and withdepartments, effectively comminicate with one another, foster enthusiam and participate in decision-making. To be seay reachable by customers and provide prompt replies to solve their problems and create value for customers.


4.One year warranty for the machines except accessories. b router machine


Robust frame construction and Japanese steel blades obtained good appraise and recognized by and oversea clients. We offer parts for replacement under warranty free of charge, clients only need to bear freight charge.


Our mission:


Ongoing PCB industry PCB separator technological innovation, to create greater value, allowing customers to success


Our Vision:


PCB industry to become the world's leading solution providers PCB separator. pcb router machine




CE approval



PCB Separator with 2 Linear Blades for 0.3-3.5mm PCB Aluminium 0
