PCB Depanelizer Machine,Singulating Process without Vibrations

Name: PCB Depanelizer Machine,Singulating Process without Vibrations
Brand: ChuangWei
SKU: CWVC-3
Rating: 4.8 (143 reviews)

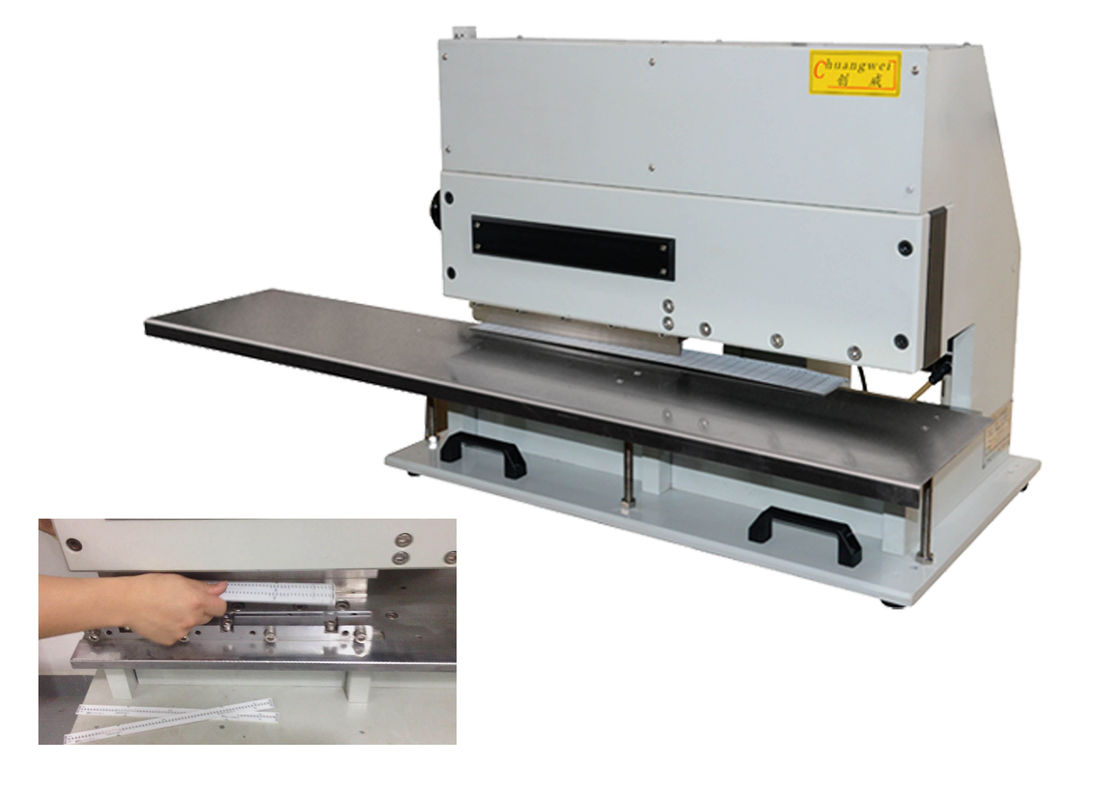

Large Image : PCB Depanelizer Machine,Singulating Process without Vibrations

Product Details:

Place of Origin:	Dongguan City, Guangdong province, China
Brand Name:	ChuangWei
Certification:	CE, RUV Rheinland (China), GMC(GlobalMarket),ISO9001-2000
Model Number:	CWVC-3

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	seaworthy plywood case,safe, no need to fumigated
Delivery Time:	within 7 days after receipt the payment.
Payment Terms:	T/T ,L/C
Supply Ability:	1000 sets/year

Contact Now

Detailed Product Description

High Light:

pcb shear cutter

metal cutter machine

PCB Depanelizer Machine,Singulating Process without Vibrations

The most professional PCB singulation machine manufacturer in China.

V-CUT PCB singulation machine

1.Max. PCB singulation length is unlimted
2.Singulation PCB without bending and tension stress
3.Safety use, easy operation
4.Singulating process without vibrations

V-CUT PCB singulation machine specifications:

Model	CWVC-3
Max. PCB singulating length	unlimited
PCB singulating thickness	0.3-3.5mm
Voltage and Power	110V/220V -- 10W
Working air pressure	0.5-0.7Mpa
PCB singulating speed	due to operator skilled level
PCB singulation machine size	780x500x620mm
PCB singulation machine weight	185Kg

V-CUT PCB singulation machine features:

1.The machine was designed to singulate pre-scored PCB carefully, without bending and tension stress.
2.Even sensitive SMD-Components like ceramic capacitors, will not be damaged by the singulating process, or thin board even to 0.3mm can be worked safely.
3.Singulating process without vibrations.
4.PCB singulating control method is by pneumatic-driven and electromagnetic valve.
5.PCB control operation is that operator stamps the foot pedal to singulate PCB.
6.Highest components near the v groove of PCB can be up to 50mm.
7.Gap for insertion of PCB can be easy to adjust.

***V-CUT PCB singulation machine operation video please see below: (CWVC-3)***
http://www.youtube.com/watch?v=313h1CQYz9w&feature=youtu.be
http://www.youtube.com/watch?v=mCCaaT56omw&feature=youtu.be (For 1.2 meter aluminium PCB CWVC-3 )
http://v.youku.com/v_show/id_XNTkxMTU0MDAw.html

***V-CUT PCB singulation machine operation video please see below: (CWVC-3)***
http://www.youtube.com/watch?v=313h1CQYz9w&feature=youtu.be
http://www.youtube.com/watch?v=mCCaaT56omw&feature=youtu.be (For 1.2 meter aluminium PCB CWVC-3 )
http://v.youku.com/v_show/id_XNTkxMTU0MDAw.html

***Any interest please contact us freely.
***Chuangwei PCB singulation machine***

The most professional PCB singulation machine manufacturer in China.
