0.02mm Router depanel PCB Printed Circuit Board

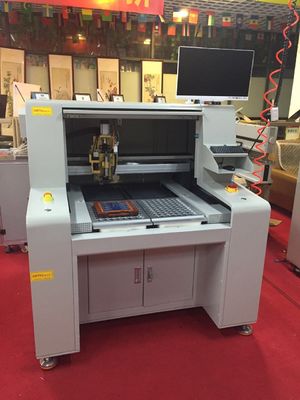

Large Image : 0.02mm Router depanel PCB Printed Circuit Board

Product Details:

Place of Origin:	Dongguang China
Brand Name:	chuangwei
Certification:	CE ISO
Model Number:	CW-F04

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	each set be packed in wooden case
Delivery Time:	7-10 days after payment confirm
Payment Terms:	T/T, L/C,paypal
Supply Ability:	300 sets per month

Contact Now

Detailed Product Description

Color:	White	Vacuum Cleaner:	Top Or Bottom(optional)
Routing Bit:	0.8/1.2/1.5/1.8/2.0mm	Standard Working Area:	450*350mm
PCB Material:	FR1, FR4, MCPCB	Description:	PCB Router
Power:	220V, 4.2KW	Manipulator Repeatability:	±0.02mm
Resolution:	±0.01mm	Board Positioning:	Dual Workstation With Nest Fixture Or Pin Fixture
Panel Location:	Located By Tooling Holes Or Edges Of PCB	Loading:	Manual
Unloading:	Manual	Dust Filtration System:	3KW Vacuum Cleaner
Highlight:	0.02mm printed circuit board router , MCPCB Printed Circuit Board Router , FR4 Printed Circuit Board Router

FR1 FR4 MCPCB Printed Circuit Board Router 0.02mm Manipulator Repeatability Application:

For milling joints connection PCB boards depaneling.

Used for all electronic industries covering power supply, computer, mobile phone, household appliance, automotive electronics, wires & connector...

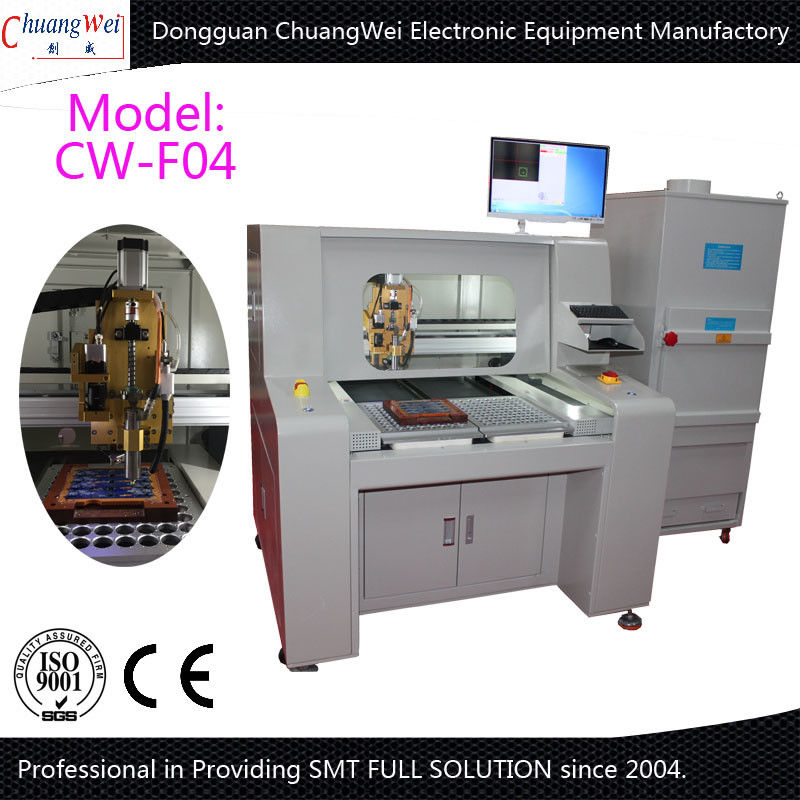

0.02mm Router depanel PCB Printed Circuit Board 0

Features:

Solution for stress free depanelization
Fixture-based highly efficient dust vacuum system
Clean and precise depanelization for densely populated PCBs
User-friendly operation
Extended bit life by manual router bit depth adjustment
Improved tact time
Low maintenance required
Reasonable price
Calibration free linear robot

Specification:

Model	CW-F04
Standard working area	450*350mm
Power	220V, 4.2KW
Manipulator Repeatability	±0.02mm
Resolution	±0.01mm
Board Positioning	Dual workstation with nest fixture or pin fixture
Panel Location	Located by tooling holes or edges of PCB
Loading	Manual
Unloading	Manual
Panel Size	450*350mm
Panel Thickness	0.5-3.5mm
Spindle motor	0.5kW Morning Star Spindle
Tool Change	Manual
Dust filtration system	3KW Vacuum Cleaner
Vision system	High resolution CCD video camera
Programming	Vision assisted point to point manual teaching
Editing Function	Dry run vision assisted / test run mode
Machine weight	500kgs
Machine dimension	113140108cm
