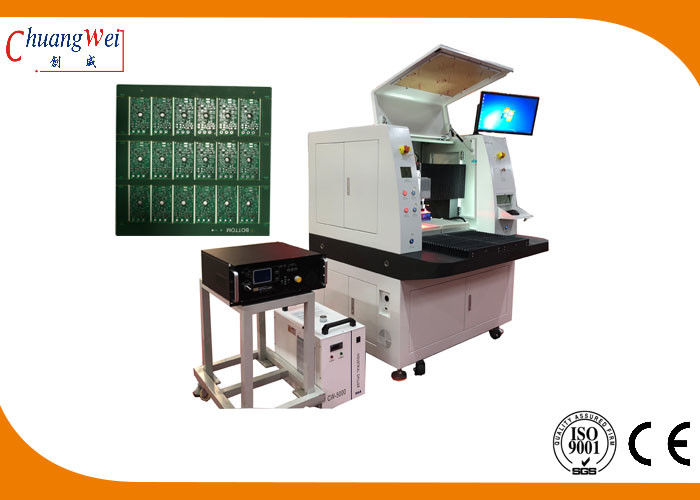

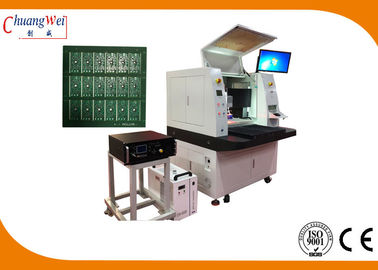

3KW 0.02mm Precision 335nm Laser PCB Depanelizer

3KW 0.02mm Precision 335nm Laser PCB Depanelizer
3KW 0.02mm Precision 335nm Laser PCB Depanelizer

Large Image :  3KW 0.02mm Precision 335nm Laser PCB Depanelizer

Product Details:

Place of Origin: Guangdong, China
Certification: CE / FCC / UL
Model Number: SMTfly-ONL

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: plywood case
Delivery Time: 9 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 50 Sets/Month
Detailed Product Description
Brand Name: ChuangWei Name: Laser PCB Depanelizer
Color: White Power: AC220V
Warranty: 1 Year Operation System: Windows 7
Cutting Size: 330*330mm Weight: 150kg
High Light:

335nm Laser PCB Depanelizer

,

3KW PCB Depanelizer

,

0.02mm Precision pcb depaneling equipment



Automatic 0.02mm Precision Cutting PCB Laser Depanelizer AC220V/3KW





Features:

1. High precision CCD automatic positioning, automatic focusing. Fast and accurate positioning, save time and no worries;



2. Friendly interface,Simple operation, easy to use, free application; Small size, Save more space; rigorous security design;



3. Reduce energy consumption, Cost savings;



4. Cost-effective, fast cutting speed, stable performance;



5. Alternate use of double workbench, significant capacity increase;



6. Cutting stress is "0" to avoid damage to PCBA;


7. The machine focuses on PCB cutting in the electronics industry;





Specification:
Model SMTfly-ONL
Laser Wavelength 335nm
Laser Power 10/12/15/17/20W
Positioning Precision ±2μm
Repetition Precision ±1μm
Working Area 600*600mm
Laser Scanning Speed 2500mm/s (max)
Machine Weight 1500kgs
Cutting Size  330*330mm





Packaging & Delivery


Packaging Details:      Wooden case


Port                      :      Shenzhen


Lead Time            :       1-2 days after getting your payment





3KW 0.02mm Precision 335nm Laser PCB Depanelizer 0 3KW 0.02mm Precision 335nm Laser PCB Depanelizer 1



After the completion of the machine, the fuselage shall be protected and wrapped with plastic film to avoid damage caused by collision of goods during export transportation.



We will measure the size of the machine customized by the customer, then customize a wooden box, so that the machine and the size of the wooden box are just right.



After the customization of wooden boxes, we use wooden boxes for export, wooden boxes are strong, suitable for export machinery and other heavy objects, to protect them..



Our Service

A. Pre-consultation:provides professional SMT solution for the full line;


B. Factory Warranty:One-year warranty factory service;


C. Installation:On-site installation and commissioning,to ensure smooth production;


D. Technical Training:provides professional training from level 1 to level 3;


E. Technical Support:provides 7 days * 24 hours technical support;


F. Software Upgrade:offer lifetime free software upgrades for all products.



Cooperative clients



3KW 0.02mm Precision 335nm Laser PCB Depanelizer 2



Our Company



ChuangWei Electronic Equipment Manufactory



For 16 years we have been desiging different separating PCB types of PCB separator and PCB depaneling machine with manual,motor-driven,pneumatic-driven,mold punching,milling cutter router.Due to the good quality and reasonable price our customers are all over the world.

Up to now ChuangWei have became one of the biggest PCB separator production base in China.



3KW 0.02mm Precision 335nm Laser PCB Depanelizer 3 3KW 0.02mm Precision 335nm Laser PCB Depanelizer 4



Q&A

Q1:What is your Warranty for the product? How do you carry out it?

A1:We provide 1 Year Warranty for unit machine and 3 years warranty for main board.More details pls contact me.



Q2: What’s the leading time? (How long do you need to prepare my goods?)

A2:1-3 working days for sample orders 3-20 working days for bulk order (based on different quantities).



Q3: How is your product quality?

A3:We provide supreme - Very rigorous testing process for Incoming Quality Control, Input Process Quality Control, and Final Quality Control for every piece. We follow 20 QC test procedure, and do 100% FQC to ensure your satisfaction.



Q4: Can you put my brand name (logo) on the product?

A4:Yes! We can provide professional OEM services to make it your brand even for your trial sample order.





Q5: Do you have any After-Sales service?

A5:Yes! If you have any technical problem or question with the goods, welcome to contact our Technical Support Dept. or our sales directly.



Q6: Are you just trading company or factory?

A6: We are professional manufacturer for automation machine since 2004.
