Product Details:
Payment & Shipping Terms:
|
| Color: | Customized | Vacuum Cleaner: | Top Or Bottom(optional) |
|---|---|---|---|
| Routing Bit: | 0.8/1.2/1.5/1.8/2.0mm | PCB Size: | 450*350mm |
| PCB Material: | FR1, FR4, MCPCB | Description: | PCB Router |
| Warranty: | One Year | Software: | ChuangWei |
| High Light: | 2.2KW PCB Router Machine,380V PCB Router Machine,0.01mm Precision PCB Router |
||

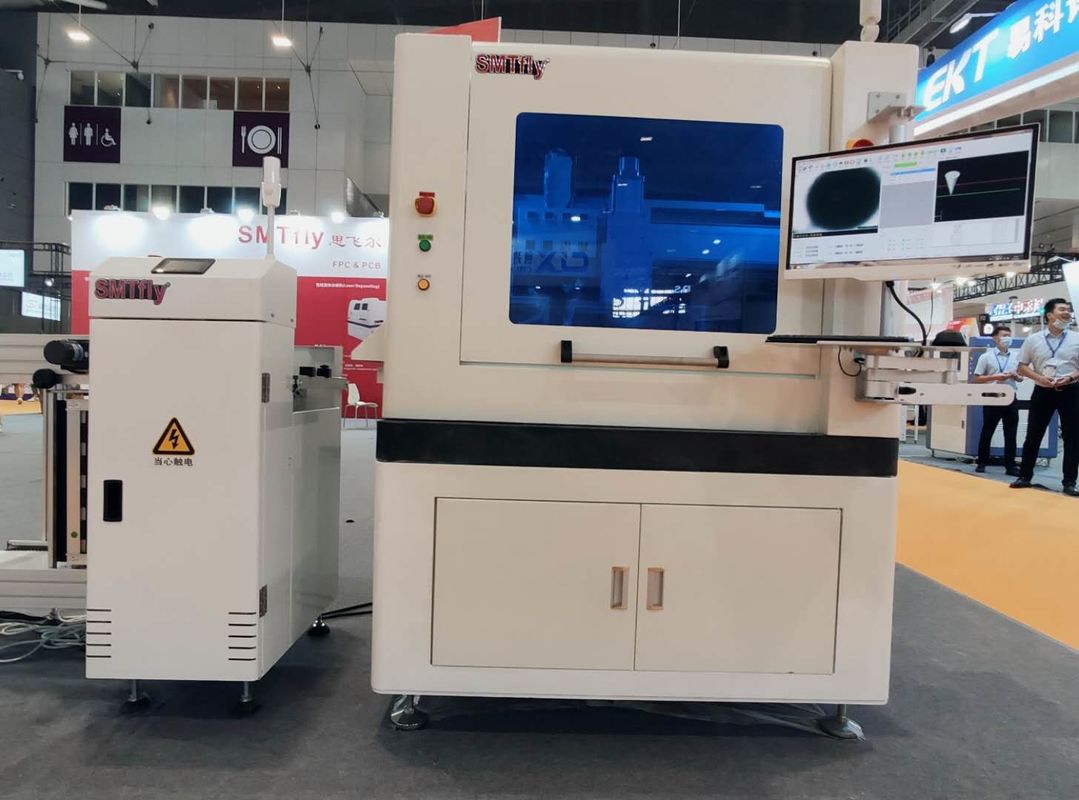

0.01mm Precision PCB Router Machine 380V/2.2KW with Germany KAVO for Printed Circuit Board
For milling joints connection PCB boards depaneling.
Used for all electronic industries covering power supply, computer, mobile phone, household appliance, automotive electronics, wires & connector...
1. Solution for stress free depanelization;
2. Fixture-based highly efficient dust vacuum system;
3. Clean and precise depanelization for densely populated PCBs;
| Model | CW-F04 |
| Standard working area | 450*350mm |
| Power | 220V, 4.2KW |
| Manipulator Repeatability | ±0.02mm |
| Resolution | ±0.01mm |
| Board Positioning | Dual workstation with nest fixture or pin fixture |
| Panel Location | Located by tooling holes or edges of PCB |
| Loading | Manual |
| Unloading | Manual |
| Panel Size | 450*350mm |
| Panel Thickness | 0.5-3.5mm |
| Spindle motor | 0.5kW Morning Star Spindle |
| Tool Change | Manual |
| Dust filtration system | 3KW Vacuum Cleaner |
| Vision system | High resolution CCD video camera |
| Programming | Vision assisted point to point manual teaching |
| Editing Function | Dry run vision assisted / test run mode |
| Machine weight | 500kgs |
| Machine dimension | 113*140*108cm |
► Dongguan ChuangWei Electronic Equipment Manufactory was founded in 2004,is located in the world manufacturing city Dongguan,Guangdong,China. The company is committed to development,manufacture,sales and service for professional pcb separator/pcb depanelizer electronic equipment machinery. The company has advanced production and processing equipment and an experienced development and manufacture team,half of them have over 10 years experience in electronic equipment industry.
► Begin with 2004 the company leader invested to develop and manufacture the PCB separator and PCB depaneling machine.From then on we pay more attention to product quality,safe to use and product innovation,so far we have produced many high quality, stable performance, high cost-effective products. Improve production yields, increase productivity, and thus enhance the market competitiveness of our customers. Until now we have design different separating PCB types of PCB separator and PCB depaneling machine with manual,motor-driven,pneumatic-driven,mold punching,milling cutter router.Due to the good quality and reasonable price our customers are all over the world.Up to now ChuangWei have became one of the biggest PCB separator production base in China.
► Company always insists to the "customer needs is our goal, creating most value for customers", strives to provide customers with first-class products, first-class service. So since date established we very attached importance to product quality,continuous improvement for manufacturing process,try hard to save money for customers.
► Our great mission is to be the most professional and excellent supplier in the pcb separator/pcb depanelizer electronic equipment industry.
