Password Protection 110V 220V PCB Depaneling Machine

small.img.alt small.img.alt small.img.alt

Large Image :  Password Protection 110V 220V PCB Depaneling Machine

Product Details:

Place of Origin: Guangdong, China
Brand Name: ChuangWei
Certification: CE / FCC / UL
Model Number: CWVC-220

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: plywood case
Delivery Time: 10 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 100 Sets/Month
Detailed Product Description
Name: PCB Depanelizer Color: Customized
Brand Name: ChuangWei Cut PCB Speed:: 300mm/s Or 500mm/s
PCB Thickness: 0.6-3.5mm LCD Display: Has Counter Function
Cutting Length: 220/330 Thinckness: 0.3-3.5mm
High Light:

220V PCB Depaneling Machine


110V PCB Depaneling Machine


Password Protection pcb depanelizer

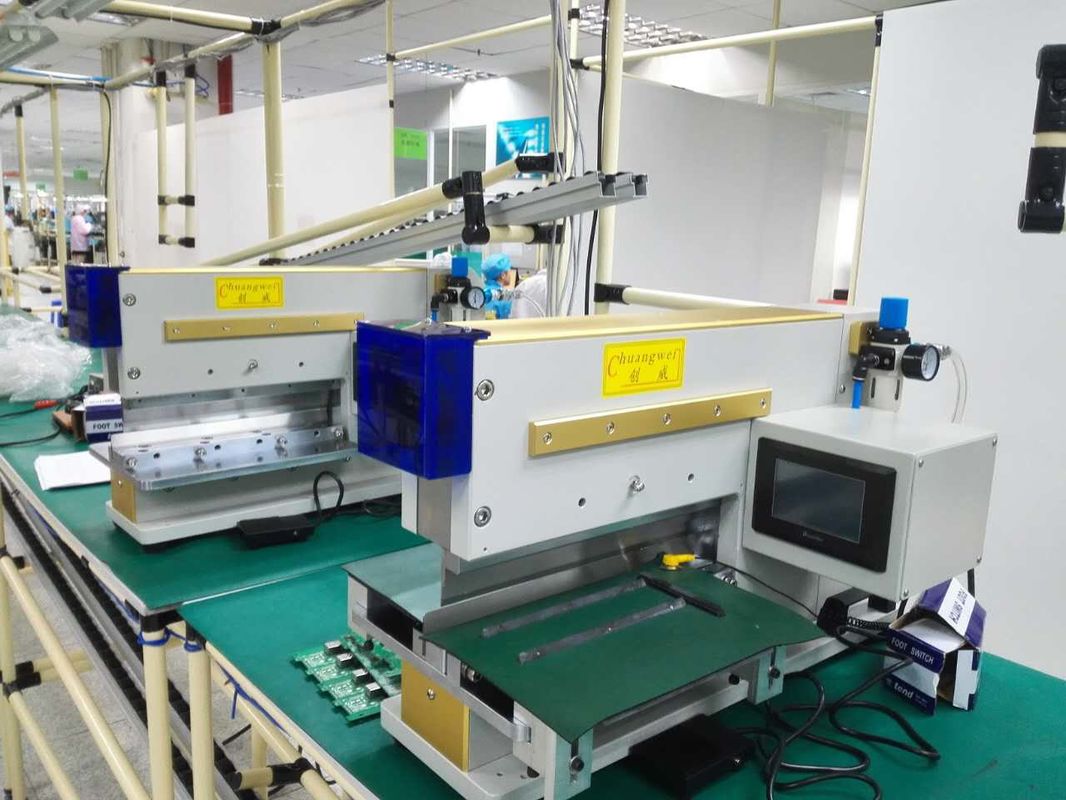

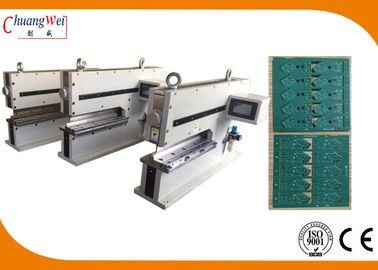

Password protection 110/220V PCB V-cut Depanelizer for Various Thickness PCB



Model CWVC
Voltage 110V / 220V
Power 250W
Max cutting length 350mm
Board thickness from 1.0 to 2.0mm
V-cut thickness from 0.2 to 2mm
Weight 70KG
Size 620 x 230 x 400mm
Speed 300mm/s or 500mm/s
Warranty 1 years




1. Touch screen with password protection counting function;


2. Full pneumatic control, no noise, solenoid valve control, fast speed;

3. Small stroke, not easy to damage the product and safe operation;

4. Cutting work for various thickness PCB/aluminum substrates;

5. Minimize the internal stress generated when cutting the board to avoid tin cracking;

6. The distance between the upper and lower knives can be precisely adjusted to avoid the difference in depth of the V-groove And the loss of the tool;

7. The highest part that can be cut into the V-groove is 70mm;

8. Allow V-groove and parts to be close to 0.5mm



Packaging & Delivery

Packaging Details:      Wooden case

Port                      :      Shenzhen

Lead Time            :       1-2 days after getting your payment



Password Protection 110V 220V PCB Depaneling Machine 0 Password Protection 110V 220V PCB Depaneling Machine 1


After the completion of the machine, the fuselage shall be protected and wrapped with plastic film to avoid damage caused by collision of goods during export transportation.


We will measure the size of the machine customized by the customer, then customize a wooden box, so that the machine and the size of the wooden box are just right.


After the customization of wooden boxes, we use wooden boxes for export, wooden boxes are strong, suitable for export machinery and other heavy objects, to protect them.




Motorized Linear Blade Depanelizer( CWVC)
1.Shears boards safely with parts as close as 0.5mm to the score line, including ceramic .
2.Operator foolproof! Panels cannot be inserted into the knives except on the score line
3.Pneumatically driven
4.Handles high components up to 1''
5.Bow waves that can occur with round knives are avoided
6.Easy adjusting of distance between knives
7. Independent lab tests show less than 200 microstrains of stress measuring
compression and tension
