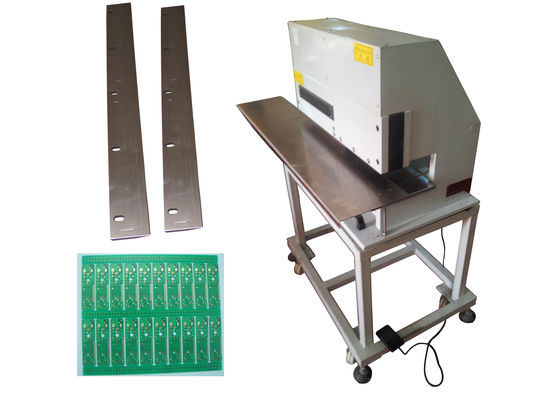

110V 220V Pneumatic Multi Blades V-Cut PCB Separator

110V 220V Pneumatic Multi Blades V-Cut PCB Separator
110V 220V Pneumatic Multi Blades V-Cut PCB Separator 110V 220V Pneumatic Multi Blades V-Cut PCB Separator

Large Image :  110V 220V Pneumatic Multi Blades V-Cut PCB Separator

Product Details:

Place of Origin: Guangdong province, China
Brand Name: ChuangWei
Certification: CE, RUV Rheinland (China), GMC(GlobalMarket),ISO9001-2000
Model Number: YCWV

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: seaworthy plywood case,safe, no need to fumigated
Delivery Time: within 7 days after receipt the payment.
Payment Terms: T/T ,L/C, D/A, T/T
Supply Ability: 800 sets/year
Detailed Product Description
Product Name: V-Cut Separator Brand Name: ChuangWei
Cutting Thickness: 0.3-3.2mm Cutting Point: 0-100-200-300-400mm
Blade Life: 7-8months Certification: CE ISO
High Light:

Multi Blades V-Cut PCB Separator


Pneumatic V-Cut PCB Separator


110V pcb separator machine



Professional Multi Blades V-Cut PCB Separator 330mm Vietnam Good Quality


*Easy maintenance and operation


*Thin PCB even to 0.3mm can be sheared safely

*Shearing process without vibrations due to pneumatic drive unit


Product Specification
Model YCWV
Max. PCB shearing length      330mm(Can custom made)
PCB  shearing thickness 0.3-3.5mm
Voltage and Power 110V/220V       10W
Working air pressure 0.5-0.7Mpa
Model Blade Motion Upper Circular Blade Moving Automatically
PCB shearing machine size    620*230*400mm
PCB shearing machine weight 165kg
Upper circular blade diameter 125mm,cutting point angle 26-28'
Voltage 220v/110v,50/60hz,250w

110V 220V Pneumatic Multi Blades V-Cut PCB Separator 0



1. Pneumatically driven and electromagnetic valve control.

2. Shearing process without vibrations due to pneumatic drive unit .

3. Shearing PCBs with sensitive SMD, capacitors or thin board even to 0.3mm can be sheared safely.

4. Shearing operation is that operator stamps the foot pedal to shear PCB.

5. Highest components near the v groove of PCB can be up to 70mm.

6. The minimum distance is allowed to be 0.5mm between  V groove and the electronic components.

7. Gap for insertion of PCB can be easy to adjust by the adjusting knob in front of the machine.





CWVC-2L  a v-cut PCB separator,PCB depaneling machine,PCB Depanelizer,PCB cutting machine.jpg

Why us


1. Engineers available to service machinery oversea.

Engineers are available to be sent to freign countries to do machinery training and offer technical support.

2. Mature technique & forerunner to process makes high quality machinery.

As largest manufactory in South China, we have 12 years experience on PCB separator machines and soldering machines. pcb router machine

Our R&D team continuously upgrade the existing machines to meet the market development trend.

3. Effective customer service. pcb router machine

All of us together are stronger and wiser than any one of us individually. To succeed, we must assume responsibility, cooperate with fellow associates and withdepartments, effectively comminicate with one another, foster enthusiam and participate in decision-making. To be seay reachable by customers and provide prompt replies to solve their problems and create value for customers.

4. One year warranty for the machines except accessories. b router machine

Robust frame construction and Japanese steel blades obtained good appraise and recognized by and oversea clients. We offer parts for replacement under warranty free of charge, clients only need to bear freight charge.

Our mission:

Ongoing PCB industry PCB separator technological innovation, to create greater value, allowing customers to success

Our Vision:

PCB industry to become the world's leading solution providers PCB separator. pcb router machine


Cooperative clients


110V 220V Pneumatic Multi Blades V-Cut PCB Separator 2




Q1:What is your Warranty for the product? How do you carry out it?

A1:We provide 1 Year Warranty for unit machine and 3 years warranty for main board.

More details pls contact me.


Q2: What’s the leading time? (How long do you need to prepare my goods?)

A2:1-3 working days for sample orders

3-20 working days for bulk order (based on different quantities).


Q3: How is your product quality?

A3:We provide supreme - Very rigorous testing process for Incoming Quality Control, Input Process Quality Control, and Final Quality Control for every piece. We follow 20 QC test procedure, and do 100% FQC to ensure your satisfaction.


Q4: Can you put my brand name (logo) on the product?

A4:Yes! We can provide professional OEM services to make it your brand even for your trial sample order.


Q5: How much do I need to pay for your OEM service?

A5: It’s according to your logo's size and color.


Q6: What payment method do you accept?

A6: T/T(Bank transfer), Western Union, Paypal, etc.


Q7: Do you have any After-Sales service?

A7:Yes! If you have any technical problem or question with the goods, welcome to contact our Technical Support Dept. or our sales directly.


Q8: Are you just trading company or factory?

A8: We are professional manufacturer for automation machine since 2004.
