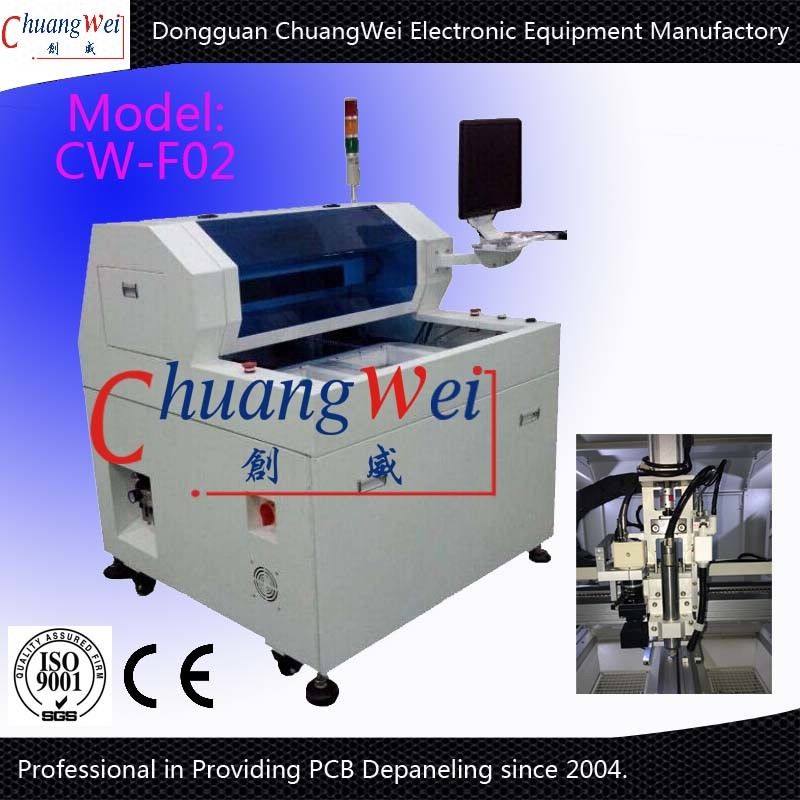

PCB Router PCB Depaneling Durable Economic Exported

PCB Router PCB Depaneling Durable Economic Exported
PCB Router PCB Depaneling Durable Economic Exported PCB Router PCB Depaneling Durable Economic Exported PCB Router PCB Depaneling Durable Economic Exported PCB Router PCB Depaneling Durable Economic Exported PCB Router PCB Depaneling Durable Economic Exported

Large Image :  PCB Router PCB Depaneling Durable Economic Exported

Product Details:

Place of Origin: China
Brand Name: ChuangWei
Certification: CE
Model Number: CWD-3A

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: plywood case
Delivery Time: 7 days
Supply Ability: 100 Sets/Month
Detailed Product Description
Color: White Program: Teaching Box
PCB Max Size: 650*450mm(Could Be Customized Made) PCB Thickness: 0.6-3.5mm
Spindle: China Name: PCB Router

PCB Router PCB Depanelizer Desktop Easy Programming by Teaching Pedal



Specification:

Motor drive system

Servo / stepper motor

Spindle speed

50000r/s

Cutting performance

500mm/s

Drive system repeatability

±0.02mm

Cutting speed Resolution

±0.01mm

Configuration

X,Y,Z 3 axis Max 100mm/S(depends on PCB material and cutting quality)

Repeatability

<0.1mm

PCB positioning fixture load/unload

Manual

PCB thickness

0.4-4mm

Working area

650*450mm

Spindle motor power

0.5KW

Spindle motor speed

50000r/m

Spindle motor cooling

Air-cooled

Machine dimension

980*580*615mm

Weight

135KG

Security settings

emergency stop switch



Features:

●Desktop single bench cutting machine, Speeds of up to 100mm/s,
positioning speed 500mm/s
●Cut continuouslwithout interrution durinloadinand y p g g
unloading
●High quality shaft system allows the system to quickly ramp,
reduce the period of time, Improve productivity, maintaining high
precision
●Use high-quality hardware to ensure high rigidity and high
performance All screws are protected from dust and dirt from entering
to improve the life and performance of the shaft
●Use high-quality hardware to ensure high rigidity and high performance

Routing Bit:

PCB Router PCB Depaneling Durable Economic Exported 0
