V-Cut PCB Separator Machine Touch Screen Operation Cutting Speed 300-500/S

V-Cut PCB Separator Machine Touch Screen Operation Cutting Speed 300-500/S
V-Cut PCB Separator Machine Touch Screen Operation Cutting Speed 300-500/S V-Cut PCB Separator Machine Touch Screen Operation Cutting Speed 300-500/S V-Cut PCB Separator Machine Touch Screen Operation Cutting Speed 300-500/S

Large Image :  V-Cut PCB Separator Machine Touch Screen Operation Cutting Speed 300-500/S

Product Details:

Place of Origin: China
Brand Name: Chuangwei
Certification: CE
Model Number: CWVC-5

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: 1USD/1set
Packaging Details: Wooden case
Delivery Time: 8-15 days after payment
Supply Ability: 30sets/month
Detailed Product Description
PCB Width: 300mm(could Be Customized) Driven Mode: Stepping / Servo Motor(optional)
V-cut Angel: >40° Cutting Speed: 300-500/s
Blade Material: High Speed Steel Air Pressure: 0.5-0.8Mpa
Voltage: 220/110V Packaging Weight: 300kgs
High Light:

inline V-Cut PCB Separator Machine

,

Touch Screen V-Cut PCB Separator

,

500/S V-Cut PCB Separator

Inline V-cut PCB Separator Machine for PCB Boards with V-groove CWVC-5 Description:

This is a double directions depaneling with horizontal and vertical boards;
to realize inline depaneling for shape panels at one time;
High automation, connect PCB loader and unloader, can be achieved without human, save
labor.
Touch screen operation, enabling quick product changing, PLC data storage
capacity is 100 programs.
One direction of depaneling is also workable, could set horizontal and vertical depaneling by
touch screen, more intelligent.
Dust cleaner is optional.

Inline V-cut PCB Separator Machine for PCB Boards with V-groove CWVC-5 Features:

※ Workable for "#" shape depaneling.
※ Horizontal and vertical depaneling is optional.
※ Blade set can be quickly changed.
※ Could connect PCB loader and PCB unloader to realize fully automated production to
save labor.
※ Simple operation, workers can operate it after training.
※ Unique new blade design, lifetime should be increased by 1.5-2 times.
※ Safety: Sensor is used to ensure safe production.

Inline V-cut PCB Separator Machine for PCB Boards with V-groove CWVC-5 Parameter:

Blade dimension

Circular blade:¢80 ¢60mm

Linear Blade: 356×43.5×6mm

PCB width 300mm(could be customized)
Driven mode Stepping / Servo motor(optional)
V-cut angel >40°
Cutting speed 300-500/s
Blade material High speed steel
Air pressure 0.5-0.8Mpa
Voltage 220/110V
Dimension 1250(1560)mm×800mm×1295mm
Packaging weight 300kgs

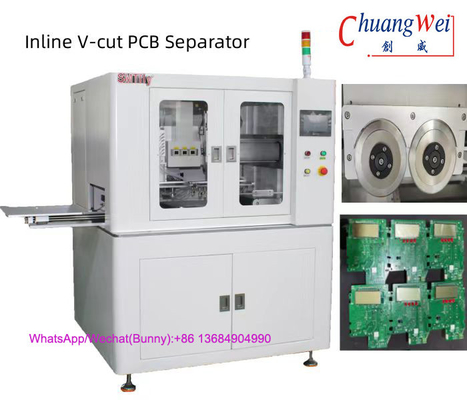

Inline V-cut PCB Separator Machine for PCB Boards with V-groove CWVC-5 Machine Pic:

V-Cut PCB Separator Machine Touch Screen Operation Cutting Speed 300-500/S 0

More information welcome to contact us:


Email/Skype: s5@smtfly.com

Mobile/Wechat/WhatsApp: +86-136-8490-4990

Contact: Bunny
