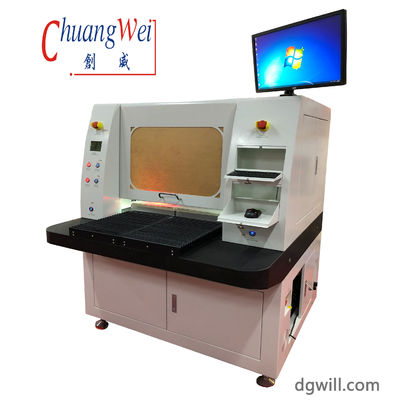

PCB Laser Depaneling Machine FPC laser Cutting Depaneling With ±20 μM Precision For FR4 PCB Or FPC Boards

PCB Laser Depaneling Machine FPC laser Cutting Depaneling With ±20 μM Precision For FR4 PCB Or FPC Boards
PCB Laser Depaneling Machine FPC laser Cutting Depaneling With ±20 μM Precision For FR4 PCB Or FPC Boards

Large Image :  PCB Laser Depaneling Machine FPC laser Cutting Depaneling With ±20 μM Precision For FR4 PCB Or FPC Boards

Product Details:

Place of Origin: China
Brand Name: ChuangWei
Certification: CE
Model Number: CWVC-5S

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: plywood case
Delivery Time: 5-7 days
Supply Ability: 50 sets per month
Contact Now
Detailed Product Description
Color: White Laser Power: 10W(optional)
Type: UV Working Size: 450*430 Mm
Size: 1480mm*1360mm *1412 Mm Precision: ±20 μm
Laser Brand: USA Or Germany Laser Wavelength: 355nm
Laser Scanning Speed: 2500mm/s (max) Product: PCB Laser Cutting Machine
High Light:

PCB depaneling

,

PCB Cutting Shear

,

FR4 PCB Laser Depaneling Machine

PCB Laser Cutting Machine PCB Depaneling with ±20 μm Precision for FR4 PCB Boards Laser PCB Separator Advantages


  • The laser process is completely software-controlled. Varying materials or cutting contours are easily taken into account through adapting the processing parameters and laser paths.
  • In the case of laser cutting with the UV laser, no appreciable mechanical or thermal stresses occur.
  • The laser beam merely requires a few µm as a cutting channel. More components can thus be placed on a panel.
  • The system software differentiates between operation in production and setting up processes. That clearly reduces instances of faulty operation.
  • The fiducial recognition by the integrated vision system is done in the latest version around 100% faster than before.


Laser PCB Separator Machine Principle

PCB Laser Depaneling Machine FPC laser Cutting Depaneling With ±20 μM Precision For FR4 PCB Or FPC Boards 0

Laser PCB Separator Parameter


Parameter









Technical parameters

Main body of laser1480mm*1360mm*1412 mm
Weight of machine1500Kg
PowerAC220 V
Laser355 nm
Laser



Optowave 10W(US)

Material≤1.2 mm
Precisio±20 μm
Platfor±2 μm
Platform±2 μm
Working area450*430 mm
Maximum3 KW
VibratingCTI(US)
PowerAC220 V
Diameter20±5 μm
Ambient20±2 ℃
Ambient＜60 %
The MachineMarble


Laser PCB Separator Features

1. Neat and smooth edge, no burr or overflow
2. More quick and easy, shorten the delivery time
3. High quality ,no distortion,surface clean& uniformity
4. Gathering the CNC tech,laser tech,software tech…High accuracy,High speed.

Product Photos


PCB Laser Depaneling Machine FPC laser Cutting Depaneling With ±20 μM Precision For FR4 PCB Or FPC Boards 1PCB Laser Depaneling Machine FPC laser Cutting Depaneling With ±20 μM Precision For FR4 PCB Or FPC Boards 2PCB Laser Depaneling Machine FPC laser Cutting Depaneling With ±20 μM Precision For FR4 PCB Or FPC Boards 3
PCB Laser Depaneling Machine FPC laser Cutting Depaneling With ±20 μM Precision For FR4 PCB Or FPC Boards 4

Our Service


# 1 day delivery
# 24 hours fast response
# Largest manufactory in South China
# 100% responsible for quality
# 14 years experience
# 1 year warranty
