Distinguish Visual Robot Automatic Vision Laser Soldering Machine 2P 220V 50HZ

China Distinguish Visual Robot Automatic Vision Laser Soldering Machine 2P 220V 50HZ supplier
Distinguish Visual Robot Automatic Vision Laser Soldering Machine 2P 220V 50HZ supplier Distinguish Visual Robot Automatic Vision Laser Soldering Machine 2P 220V 50HZ supplier Distinguish Visual Robot Automatic Vision Laser Soldering Machine 2P 220V 50HZ supplier

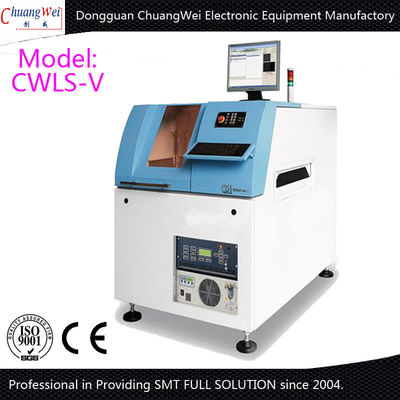

Large Image :  Distinguish Visual Robot Automatic Vision Laser Soldering Machine 2P 220V 50HZ

Product Details:

Place of Origin: China
Brand Name: ChuangWei
Certification: CE ISO9001
Model Number: CWLS-V

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: Negotiable
Packaging Details: Plywood case
Delivery Time: 15days
Supply Ability: 100sets
Contact Now
Detailed Product Description
Spot Size: 0.3mm Positioning Way: CCD Coaxial Positioning
Temperature Monitors: Infrared Temperature Measurement (coaxial Temperature Measurement Work Range: 300mm*300mm
Wave Length: 808nm Power Interface: 2P 220V 50HZ
Color: White & Blue Size: 1200*1200*1700mm
Name: Enormous Advantages Distinguish Visual Automatic Vision Laser Soldering

Enormous Advantages Distinguish Visual Robot Automatic Vision Laser Soldering Machine



Special Features

1 .soldering product with lead or without lead, causing no pollution and saving tin for transiting tin with a certain quality No need to change tin wire

2.There is no need to add prefluxing, without full heating, low energy consumption, the perfect solution to surface warping problem.

3.Suitable for large and small size, less solder joints, solder joints are difficult to approach, the inner layer of high difficulty products.

4.Top delivery tin and bottom delivery tin two kinds of models, optional from top to top welding, no need to turn plate, solve labor cost and fixture complex problem.

5.Efficient heat application and solder supply enables stable soldering automation

6.It enables soldering in narrow confines on high-density board assembly.

7.High maintainability

Product Parameters

Subject Technical Parameters
Name Laser Top Layer Soldering System
Power Interface 2P 220V 50HZ
Laser Power 60W
Spot Size 0.3mm
Wave Length 808nm
Positioning Way CCD Coaxial positioning
Temperature Monitors Infrared temperature measurement (coaxial temperature measurement)
Work Range 300mm*300mm
Total Power 2kw
Size 1200*1200*1700
Weight 180kg



Application

  1. Widely used in aerospace, military industry, automotive electronic industry and other industries
  Distinguish Visual Robot Automatic Vision Laser Soldering Machine 2P 220V 50HZ   Distinguish Visual Robot Automatic Vision Laser Soldering Machine 2P 220V 50HZ
Distinguish Visual Robot Automatic Vision Laser Soldering Machine 2P 220V 50HZ Distinguish Visual Robot Automatic Vision Laser Soldering Machine 2P 220V 50HZ

Exposure position marks (Square Type )

Exposure position marks (Line Type )



    Distinguish Visual Robot Automatic Vision Laser Soldering Machine 2P 220V 50HZ



     Distinguish Visual Robot Automatic Vision Laser Soldering Machine 2P 220V 50HZ





2.Our extensive experience in systems introductions has let us establish application knowledge for laser soldering. We guarantee that customers can adopt these systems with confidence.

However, laser soldering is absolutely not just a replacement for contact soldering. It is important to distinguish the strong points of each and match them to the application.





Product Description

The product flows from the track into the welding station. After CCD photography, the tin wire drawing mechanism sends the tin wire to the site to be welded, and the laser laser tin completes the welding.



                                   Distinguish Visual Robot Automatic Vision Laser Soldering Machine 2P 220V 50HZ

Laser soldering robot

The technology makes possible automation where previously not practical.

Technology is evolving quickly. Mainstream is no longer applicable as evidenced by the emergence of ultrafine electronic circuit boards and multi-layered electrical components. Laser makes possible ultrafine area and other types of soldering that are difficult using tip soldering, which drives enormous advantages. Before adoption of new technology, read laser soldering method to understand differences from contact soldering method.
