|Screw Nut:||According To Customer’s Requirement||Control Method:||PLC|
|Application:||Plastic Part||Air Pressure:||0.4-0.7MPa|
|Working Area:||580*230*35/90/160mm||Machine Size:||1400*700*600mm|
|Machine Weight:||260kgs||Description:||Screw Inserting Machine|

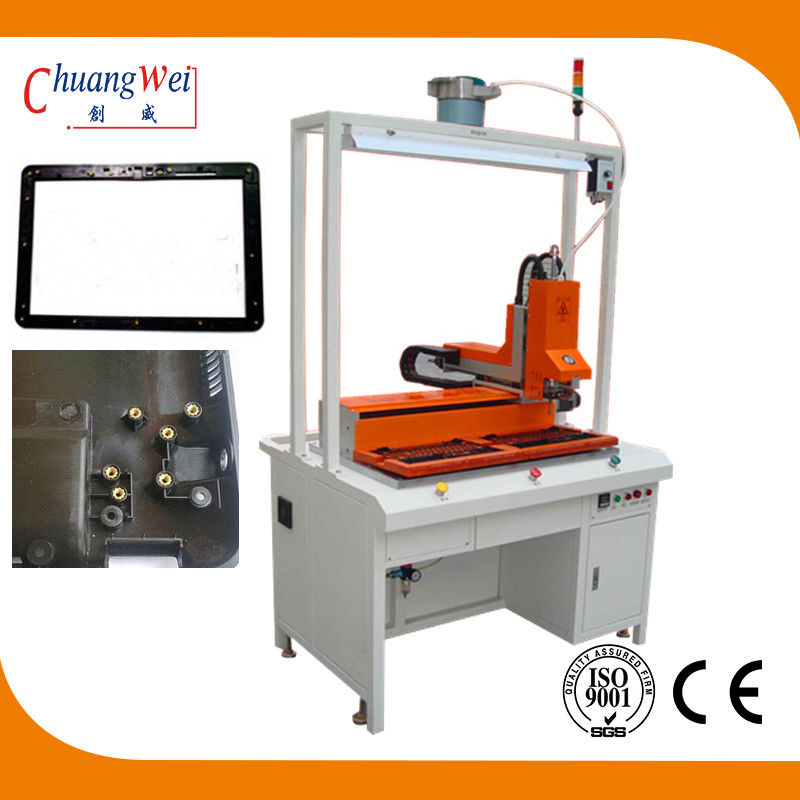

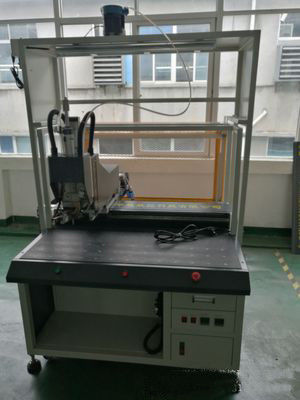

Automatic screw inserting machine with 3500-4500pcs capacity & fast delivery, CWLM-1A
1. Equipment designed for three-axis stepper interlocking manner, driven automatic temperature heating system, a single point of mobile implant nut machine;
2. Using an exclusive development of high-performance modules + Concord Taiwan imported man-machine interface operating system, enabling the production of programming in any order, store, recall, modify any data of different products.
3. Coordinates Adjustment directly set the value and move the coordinates are two ways to set the whole Chinese programming simple and quick;
4. The use of imported triaxial ensure accuracy;
5. Repeat accuracy 0.5-1.0mm;
6. The non-blocking nut crashing chute (nut asked to oil and copper scrap, uniform size);
7. nut implanted plastic shell, the strength up to standard;
8. The automatic feed, heat implanted at once;
9. Every time an implant nuts, nut regardless of direction per hour 1400-2000PCS nuts (actual production efficiency in order to prevail with plastic shell and nut).
1.Delivery installation: Pearl River Delta region free home delivery; other areas pay only a small amount of freight, and the use of freight transport, packaging boxes, arrived safely, equipment and tooling are already successful commissioning, folding cartons can be used.
2.The installation environment: ordinary family workshops or factories, only the power socket and pipe can be used.
3.The training program: free training technicians to fully grasp until use.
4.After-sale protection: free samples, free installation, quality tracking, 24 hours in place, one year free warranty and lifetime maintenance.
