Automatic Screw Insertion Robot with PLC Controller and High Precision

China Automatic Screw Insertion Robot with PLC Controller and High Precision supplier
Automatic Screw Insertion Robot with PLC Controller and High Precision supplier Automatic Screw Insertion Robot with PLC Controller and High Precision supplier

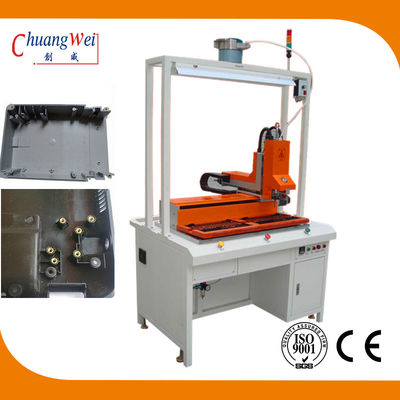

Large Image :  Automatic Screw Insertion Robot with PLC Controller and High Precision

Product Details:

Place of Origin: China
Brand Name: ChuangWei
Certification: CE
Model Number: CWLM-1A

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: plywood case
Delivery Time: 7 working days
Supply Ability: 100set/month
Contact Now
Detailed Product Description
Color: White Screw Nut: According To Customer’s Requirement
Control Method: PLC Application: Plastic Part
Air Pressure: 0.4-0.7MPa Working Area: 580*230*35/90/160mm
Machine Size: 1400*700*600mm Machine Weight: 260kgs
Power Supply: 220/110V Description: Screw Insertion Robot

Automatic screw insertion robot with PLC Controller and High Precision, CWLM-1A Service:



1.Delivery installation: Pearl River Delta region free home delivery; other areas pay only a small amount of freight, and the use of freight transport, packaging boxes, arrived safely, equipment and tooling are already successful commissioning, folding cartons can be used.

2.The installation environment: ordinary family workshops or factories, only the power socket and pipe can be used.

3.The training program: free training technicians to fully grasp until use.

4.After-sale protection: free samples, free installation, quality tracking, 24 hours in place, one year free warranty and lifetime maintenance.



Specification:



Model CWLM-1A Machine Size 1400*700*600mm
Working area 580*230*35/90/160 Screw Nut According to customer’s requirement
Control method PLC Repeatable precision ±0.01mm
Capacity 3500-4500pcs Power Supply 220/110V
Air pressure 0.4-0.7MPa Working tem. 0-250℃
Power rate 2KW Machine Weight 260KG



Feature:



1. Equipment designed for three-axis stepper interlocking manner, driven automatic temperature heating system, a single point of mobile implant nut machine;

2. Using an exclusive development of high-performance modules + Concord Taiwan imported man-machine interface operating system, enabling the production of programming in any order, store, recall, modify any data of different products.

3. Coordinates Adjustment directly set the value and move the coordinates are two ways to set the whole Chinese programming simple and quick;

4. The use of imported triaxial ensure accuracy;

5. Repeat accuracy 0.5-1.0mm;

6. The non-blocking nut crashing chute (nut asked to oil and copper scrap, uniform size);

7. nut implanted plastic shell, the strength up to standard;

8. The automatic feed, heat implanted at once;

9. Every time an implant nuts, nut regardless of direction per hour 1400-2000PCS nuts (actual production efficiency in order to prevail with plastic shell and nut).



Machine Details & Suitable Screw Nut:



Automatic Screw Insertion Robot with PLC Controller and High Precision        Automatic Screw Insertion Robot with PLC Controller and High Precision



Applications:



Automatic Screw Insertion Robot with PLC Controller and High Precision      Automatic Screw Insertion Robot with PLC Controller and High Precision



CE Certification:

Automatic Screw Insertion Robot with PLC Controller and High Precision
