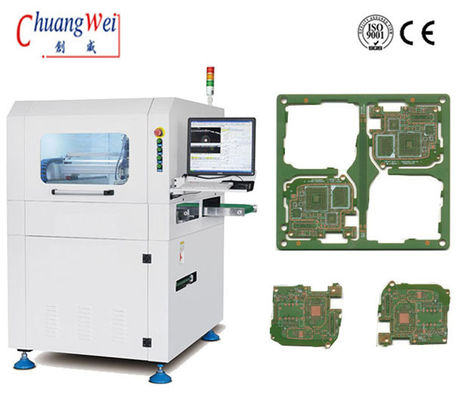

High Efficiency Inline PCB Router Machine with Break Blade Checking Function

China High Efficiency Inline PCB Router Machine with Break Blade Checking Function supplier
High Efficiency Inline PCB Router Machine with Break Blade Checking Function supplier High Efficiency Inline PCB Router Machine with Break Blade Checking Function supplier

Large Image :  High Efficiency Inline PCB Router Machine with Break Blade Checking Function

Product Details:

Place of Origin: China
Brand Name: ChuangWei
Certification: CE
Model Number: CW-F03

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: plywood case
Delivery Time: 7-10 working days
Supply Ability: 200sets/year
Contact Now
Detailed Product Description
Color: White PCB Thickness: 0.4-6mm
PCB Material: FPC, FR4 PCB Size: 350*350mm(max)
Size: 1000*1200*1533mm Weight: 1900kgs
ESD Safe: Yes Cutting Accuracy: ±0.5mm
Cutting Speed: 1-200mm/s Transmission Speed: 1500mm/s(max)/adjustable
Transmission Height: 900±50mm Description: Inline PCB Routing Machine

High Efficiency Inline PCB Routing Machine PCB Router with Break Blade Checking Function,CW-F03

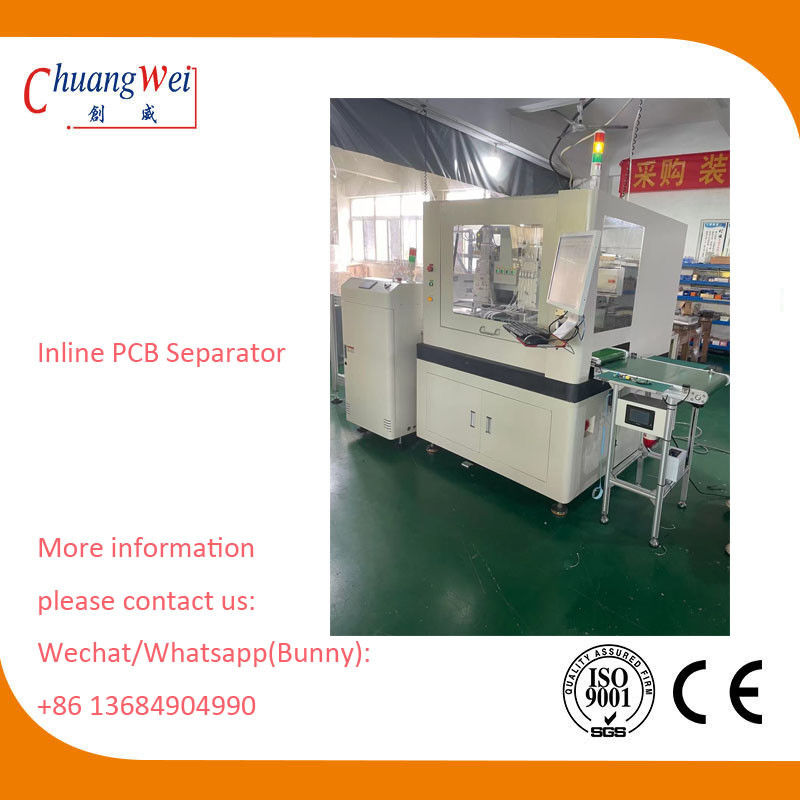

An on-line PCB which is specially used to cut PCBA components(panel) into separate parts, featuring rail-mounted structure without jig cutting. It can be put into production immediately. Featuring ESD static monitoring, cutting stress feedback, and automatic tool changing, it can reach a top speed of 60000 rotates. The control system developed on the basis of our RM system can ensure customer’s rapid and accurate programming.



Advantages:



High reliability cutting system

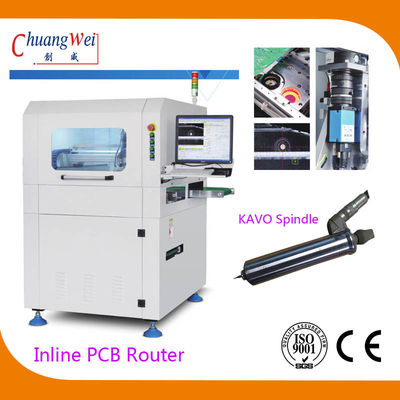

Germany KAVO high-speed principal axis with a top speed of 60000 rotates, featuring ESD static voltage monitoring and the functions of cutting stress feedback and automatic tool changing.



Super Vision System



A precise machine visual system which consists of German imagining industrial camera, Moritex Lens and measurement-level light source; it

supports all functions of machine calibration, compensation and positioning, featuring highstablility and anti-disturbance capacity.



Features:



1. Automatic tool change

2. ESD monitoring

3. Cutting stess feedback

4. Automatic production mode
5. Linkage between Spc statistic functionand customer’s management system-ERP

6. Can be equipped with explosion-proof function of vacuum cleaner



Specification:



Model CW-F03
Machine Size 1000*1200*1533mm
Weight Approx 1900kgs
Max PCB Size 350*350mm
PCB Thickness 0.4-6mm
Transmission height 900±50mm
Transmission direction Left -> Right
Transmission speed 1500mm/s(max)/adjustable
Feeding plate type Section-type transportation guide rail
Rail width adjustment Automatic
Communication signal of upper and lower computers SMEMA
PCB Positioning Upper and lower guide rail clamping
Picking system 360°rotary clamping system; 2 groups of vacuum suction nozzles at most, 4 groups of ESD belt transportation/batch panel forwarding units at most
Cutting spindl/speed Germany KAVO, 60,000rpm/min
Cooling type Air compression
ESD monitoring Yes
Automatic tool change Yes
Cutting stress feedback Yes
Break blade check Yes
Cutting speed 1-200mm/s
Cutting accuracy ±0.5mm
Repeat positioning accuracy ±0.01mm
Coordinate moving speed 1000mm/s
Out plate type ESD belt transportation/batch panel forwarding unit
Waste collection type Out off the track
Procedure programming GERBER drawing import/Editing program through visual system
Air supply 5-8kg/cm2
Power supply AC380V±5%, 50/60Hz, 3KW



Automatic tool changer



The standard tool changer supports three kinds of 3.175mm tools, each of which has a top loading Capacity of 10 ones. It is combined with precise clamping system and lifting system; three axes -X1,Y1 and Z1 of the cutting mechanism can realize tool changing.



CE Certification



High Efficiency Inline PCB Router Machine with Break Blade Checking Function

CB router.pdf
