FR4 PCB UV Laser Cutting Machine PCB Depaneling without Thermal Stresses

Certification
Good quality PCB Depaneling for sales
Good quality PCB Depaneling for sales
The router works fine. I would like to special thanks to you one more time for your support!

—— Ahmet

I was set up your machine one week ago. İt’s good working. Thank you for all.

—— Erdem

The machine operates well, we will purchase it again

—— Jon

The machine works very well, now we train all workers.

—— Michal

I'm Online Chat Now

FR4 PCB UV Laser Cutting Machine PCB Depaneling without Thermal Stresses

China FR4 PCB UV Laser Cutting Machine PCB Depaneling without Thermal Stresses supplier
FR4 PCB UV Laser Cutting Machine PCB Depaneling without Thermal Stresses supplier FR4 PCB UV Laser Cutting Machine PCB Depaneling without Thermal Stresses supplier

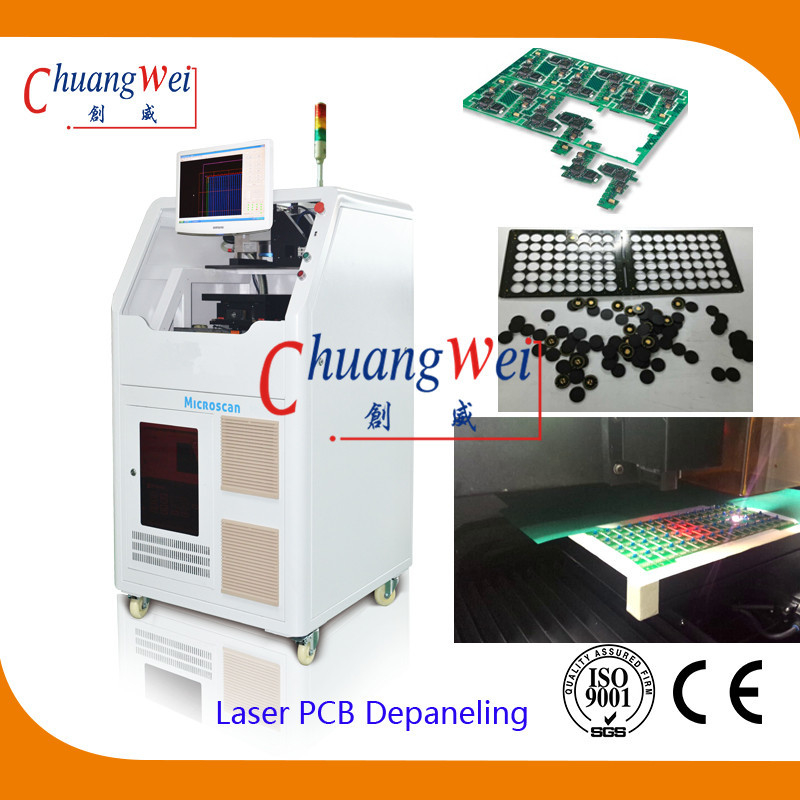

Large Image :  FR4 PCB UV Laser Cutting Machine PCB Depaneling without Thermal Stresses

Product Details:

Place of Origin: China
Brand Name: ChuangWei
Certification: CE
Model Number: CWVC-6

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: plywood case
Delivery Time: 5-7 days
Supply Ability: 50 sets per month
Contact Now
Detailed Product Description
Color: White Laser Power: 12/15W(optional)
Type: UV Working Size: 300*300 Mm
Size: 1000mm*940mm *1520 Mm Precision: ±20 μm
Laser Brand: USA Or Germany Laser Wavelength: 355nm
Laser Scanning Speed: 2500mm/s (max) Description: FR4 Laser Cutting Machine

FR4 PCB UV Laser Cutting Machine PCB Depaneling Without Thermal Stresses FR4 Laser Cutting Machine Advantages


  • The laser process is completely software-controlled. Varying materials or cutting contours are easily taken into account through adapting the processing parameters and laser paths.
  • In the case of laser cutting with the UV laser, no appreciable mechanical or thermal stresses occur.
  • The laser beam merely requires a few µm as a cutting channel. More components can thus be placed on a panel.
  • The system software differentiates between operation in production and setting up processes. That clearly reduces instances of faulty operation.
  • The fiducial recognition by the integrated vision system is done in the latest version around 100% faster than before.


FR4 Laser Cutting Machine Working Principle FR4 PCB UV Laser Cutting Machine PCB Depaneling without Thermal Stresses

FR4 Laser Cutting Machine Parameter


Parameter









Technical parameters

Main body of laser1000mm*940mm *1520 mm
Weight of machine450Kg
PowerAC220 V
Laser355 nm
Laser



Optowave 10W(US)

Material≤1.2 mm
Precision±20 μm
Positioning±2 μm
Platform±2 μm
Working area300*300mm
Maximum3 KW
VibratingCTI(US)
PowerAC220 V
Diameter20±5 μm
Ambient20±2 ℃
Ambient<60 %
The MachineMarble


FR4 Laser Cutting Machine Features

1. Neat and smooth edge, no burr or overflow
2. More quick and easy, shorten the delivery time
3. High quality ,no distortion,surface clean& uniformity;
4. Gathering the CNC tech,laser tech,software tech…High accuracy,High speed

FR4 Laser Cutting Machine Application


FPC and some relative materials;
  FPC/PCB/ Rigid-Flex PCB cutting, Camera module cutting.

FR4 PCB UV Laser Cutting Machine PCB Depaneling without Thermal Stresses

FR4 PCB UV Laser Cutting Machine PCB Depaneling without Thermal Stresses



Our Service:


# 1 day delivery
# 24 hours fast response
# Largest manufactory in South China
# 100% responsible for quality
# 15 years experience
# 1 year warranty

Contact Details
Dongguan Chuangwei Electronic Equipment Manufactory

Contact Person: Alan Cao

Tel: +8613922521978

Send your inquiry directly to us (0 / 3000)
